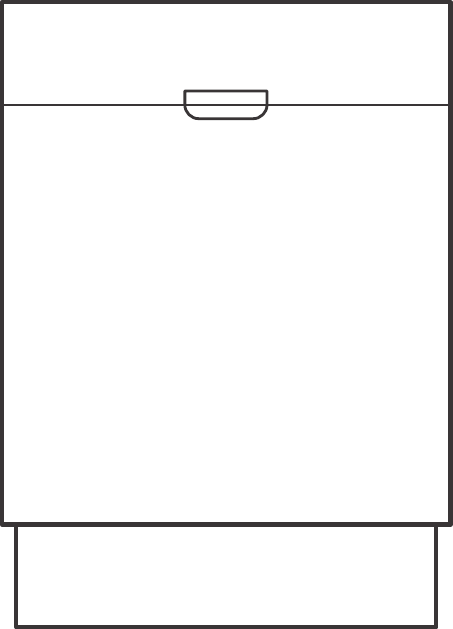

Dishwasher Instruction Manual FORTÉ F24DWS450PR Please keep it handy for reference at all times.
CONTENTS Please carefully read this manual before using the dishwasher, it will help you use and maintain the dishwasher properly .
IMPORTANT SAFETY INSTRUCTION WARNING For your safety, please follow the information in this manual to minimize the risk of fire, explosion, electric shock, and to help prevent property damage or personal injury. Proper installation Please install your dishwasher properly, follow the installation guide. Water supply inlet temperature should be between 120℉ and 149℉. Dispose of the discarded appliance and packing material properly.
FEATURES OF YOUR NEW DISHWASHER Specification Capacity Dimension 10 place settings 23 . 5 x 22.6 x 32.4 inches (W x D x H) 120volts, 60Hz Power Supply Rated power usage Water Feed Pressure Wash motor 100W Heater 700W 5 .8 ~ 145 psi (0 .
FEATURES OF YOUR NEW DISHWASHER Filter System Your dishwasher has a multiple Filter System. In the System there are three mesh filters. It can separate soiled water and clean water in different chambers. The multiple filter system helps your dishwasher to get better performance with less water and less energy. Smart Wash System Your dishwasher has a Smart Wash System. When a partial load of lightly soiled dishes is placed in the unit, a wash cycle similar toa short wash will automatically be performed.
FEATURES OF YOUR NEW DISHWASHER How your dishwasher cleans Getting Started Your dishwasher cleans by spraying a mixture of hot water and detergent through the spray arms against soiled surfaces . 1. Load the dishwasher (See Dish Preparation and Loading sections). The dishwasher fills with water covering the filter area. Water is then pumped through the multiple filter and spray arms. Separated soil particles go down the drain as the water is pumped out and replaced with clean water. 3.
OPERATING INSTRUCTIONS Control Panel 2 3 1 4 5 6 1.Start/Cancel 4. Display window Open the door to select the desired cycle and options, touch the Start/Cancel button and close the door within 4 seconds to start the cycle or begin the delay countdown. To cancel and reset the program during the cycle, open the door, and touch Start/Cancel for 3 seconds. Close the door and dishwasher will start a 60 second drain.
OPERATING THE DISHWASHER Status Window Error indication H:01- H:24 If the Delay Start option is selected, the number of delay start hours shows in the status window. In certain situations which are critical to the machines function and safe operation, the control shall shut down and indicate an errorcode (See Error Codes on page 18). 2:25-0 :00 After the machine starts operation, the remaining time of the selected cycle will be shown in the window.
OPERATING THE DISHWASHER Status Window Error indication H:01- H:24 If the Delay Start option is selected, the number of delay start hours shows in the status window. In certain situations which are critical to the machines function and safe operation, the control shall shut down and indicate an errorcode (See Error Codes on page 18). 2:25-0 :00 After the machine starts operation, the remaining time of the selected cycle will be shown in the window.
PREPARING AND LOADING DISHES Dish Preparation Scrape away large pieces of food, bones, pits, toothpicks, etc. The continuously filtered wash system will remove the remaining food particles. Burned-onfoods should be loosened before loading. Empty liquids from glasses and cups. Foods such as mustard, mayonnaise, vinegar, lemon juice and tomato based products may cause discoloration of stainless steel and plastics if allowed to sit for a long period of time.
PREPARING AND LOADING DISHES Loading the Lower Basket The lower basket has been especially designed for dinner dishes, soup bowls, plates, pots, lids, casserole dishes, and plates. Load large items such as pans and pots into the dishwasher so their open sides face downwards. We recommend loading cups, stemware, and small plates into the upper basket. See the recommended loading patterns below.
PREPARING AND LOADING DISHES Loading the Silverware Basket Adding A Dish The silverware basket can be divided into three separate modules that can be used in both upper and lower racks To add or remove items after wash cycle starts: 1. Open door slightly and wait a few seconds until wash action stops before completely opening. 1.Spoons 2.Knives 3.Salad forks 4.Forks 5.Large spoons 6. Large forks 1 1 6 5 4 5 1 3.Close the door firmly to latch within 4 secs, then cycle will automatically resume.
PREPARING AND LOADING DISHES Filling the rinse aid dispenser Your dishwasher is designed to use a liquid rinse aid. The use of rinse greatly improves drying performance after the final rinse. Do not use a solid or bar-type rinse aid. Under normal conditions, the rinse aid will last approximately one month. It is best to keep it full, but do not over fill. Filling the detergent dispenser 1. Open the detergent dispenser cap by pushing the detergent dispenser release catch.
PREPARING AND LOADING DISHES Filling the rinse aid reservoir Your dishwasher has been designed to use liquid rinse aid only. Using a powdered rinse aid will clog the reservoir opening and cause the dishwasher to malfunction. Rinse aid improves the drying performance of the dishwasher. CAUTION Do not add regular detergent to the rinse aid reservoir. 1. Remove the rinse aid reservoir cap by rotating it counterclockwise. 2. Fill the rinse aid reservoir with rinse aid.
USER MAINTENANCE Keeping your dishwasher clean improves its performance, reduces unnecessary repairs, and lengthens its life. CLEANING THE EXTERIOR It’s best to clean spills on the outside of your dishwasher as they occur. Use a soft, damp cloth on the control panel to gently wipe away spills and dust. Do not use benzene, wax, thinner, chlorine bleach, or alcohol. These materials may discolor the inner walls and cause stains.
USER MAINTENANCE 4. Remove any dirt or other remains from the filters, and then rinse them under running water. 5. Reassemble the filters in the reverse order of the dissasembly, replace the filter insert, and rotate clockwise to the close arrow. CAUTION If the filter insert is not closed properly, its performance will be decreased. CLEANING THE NOZZLES If your dishwasher does not seem to be cleaning adequately or the nozzles seem clogged, you can clean each of the nozzles.
Troubleshooting Problem Solution Possible cause Shut the door completely make sure it is latched Dishwasher won't start Power supply or power line is not connected Check and connect the power supply Dishwasher won't start Delay Start option has been selected Refer to Delay Start section in this manual to reset Child Lock activated (selected models) Deactivate the child lock, refer to child lock section in this manual Dishwasher beeps at the end of the cycle It indicates the wash cycle finished, th
Troubleshooting Problem Possible cause Solution Detergent may be too old Use fresh detergent Spray arm is blocked Load the dishes, making sure the spray arms are not blocked Detergent left in dispenser cup Detergent dispenser will not shut Improper operation of the detergent cover Add the detergent and rinse aid as indicated by the manual Water remains in the dishwasher Previous cycle has not finished or has been interrupted Select the proper cycle explained in the manual Drain is clogged Che
Error Codes When some malfunctions come on, the appliance will display error codes to warn you: E1 during the water inlet step, if the flow meter can't detect the defined water after 4 minutes, the dishwasher will warning for E1. 1. check the water supply 2. check the inlet valve 3. check the inlet 4. check the flowmetre 5. check the pressure switch 6. check the drain 7.
Dishwasher Warranty What this Warranty Covers & Who it Applies to: The limited warranty provided by FORTÉ in this Statement of Limited Dishwasher Warranty applies only to the FORTÉ appliance sold to you (“Dishwasher“), provided that the Dishwasher was purchased: ■ For your normal, household (non-commercial) use, and has in fact at all times only been used for normal household purposes. ■ New at retail (not a display, "as is", or previously returned model), and not for resale, or commercial use.
■ Use of the Dishwasher in anything other than its normal, customary and intended manner (including without limitation, any form of commercial use, use or storage of an indoor Dishwasher outdoors, use of the Dishwasher in conjunction with air or water-going vessels).
