Installation Guide

12
1 OVERVIEW

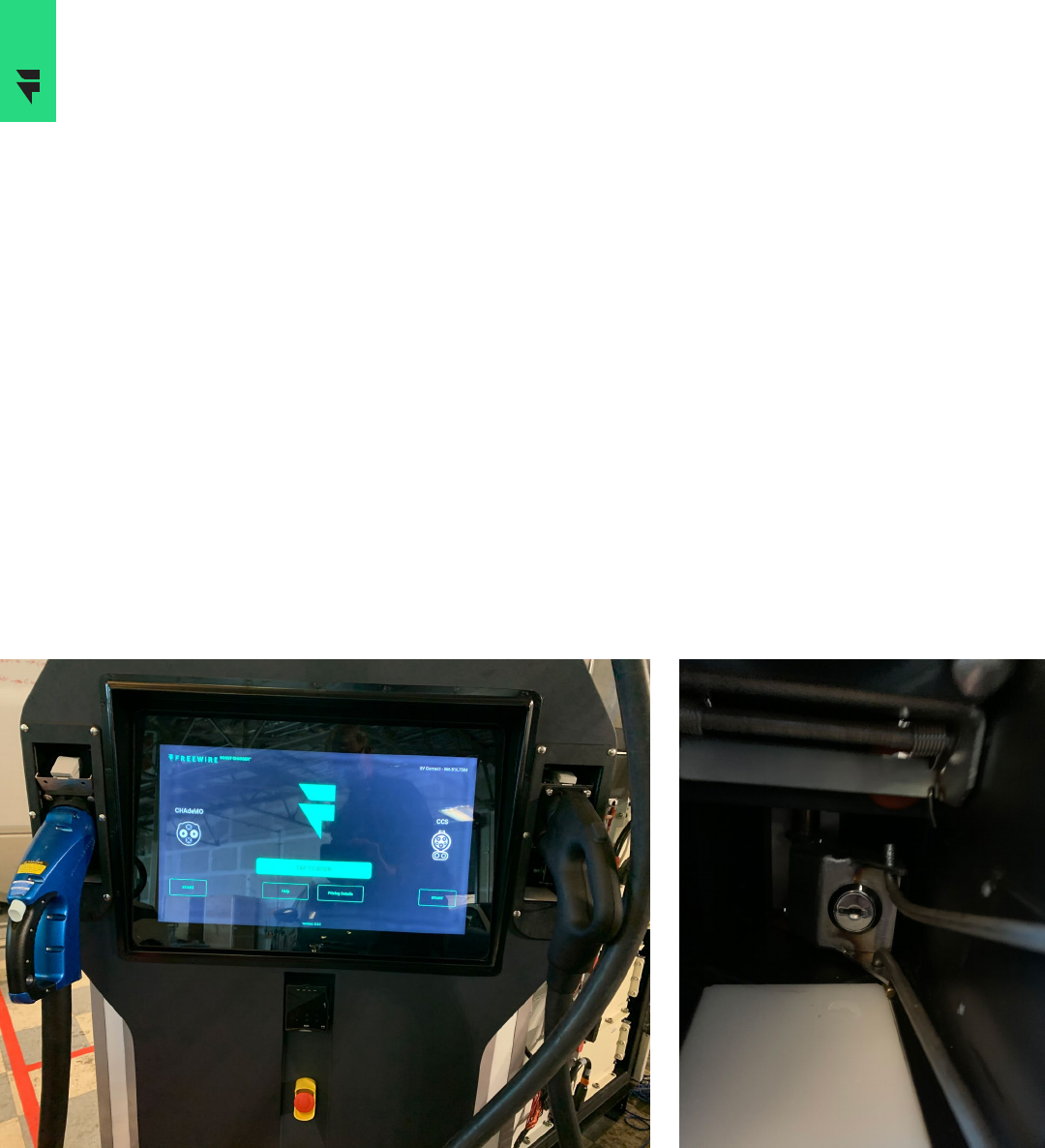

Unlocking and Locking the Front Access Door
In order to unlock/lock the Boost Charger front access door, the locks behind the CHAdeMO and CCS
charge cables must be accessible.
Step 1 Remove the CHAdeMO charge cable from its respective holder.
Step 2 Insert the key and turn to unlock.
Step 3 Remove the key.
Step 4 Insert the door tool and pull open the hasp.
Step 5 Remove the door tool.
Step 6 Repeat steps 1-5 for the second lock behind the CCS charge cable.
To lock the front access door, repeat the steps in reverse order.
