Installation Guide

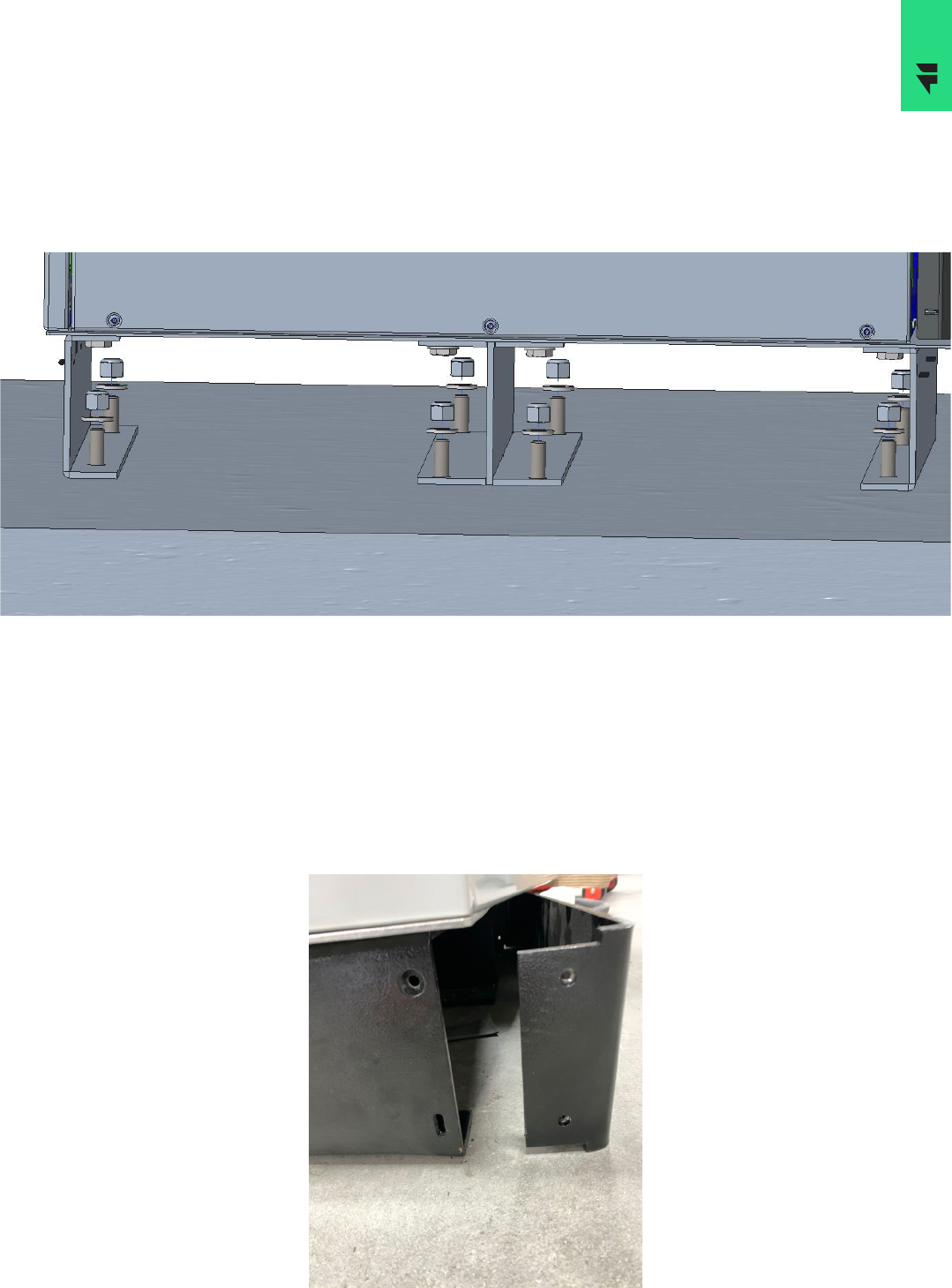

Step 3 Use the washers and locking nuts supplied with the mounting template to install the Boost Charger.

Insert a flat washer, then thread a locking nut onto each of the eight mounting bolts to secure the

unit.

Step 4 Ensure you have room to maneuver around the Boost Charger.

Step 5 Tighten the outer 4 nuts first. Then tighten the center front and back nuts by hand-turning the lower

nuts until they are flush against the Boost Charger frame. Finally, tighten each nut using the torque

wrench to 100 ft lbs.

Step 6 Carefully re-install the front and backside kick panels and hardware previously removed during the

uncrating process.

2 INSTALLATION OF THE BOOST CHARGER
