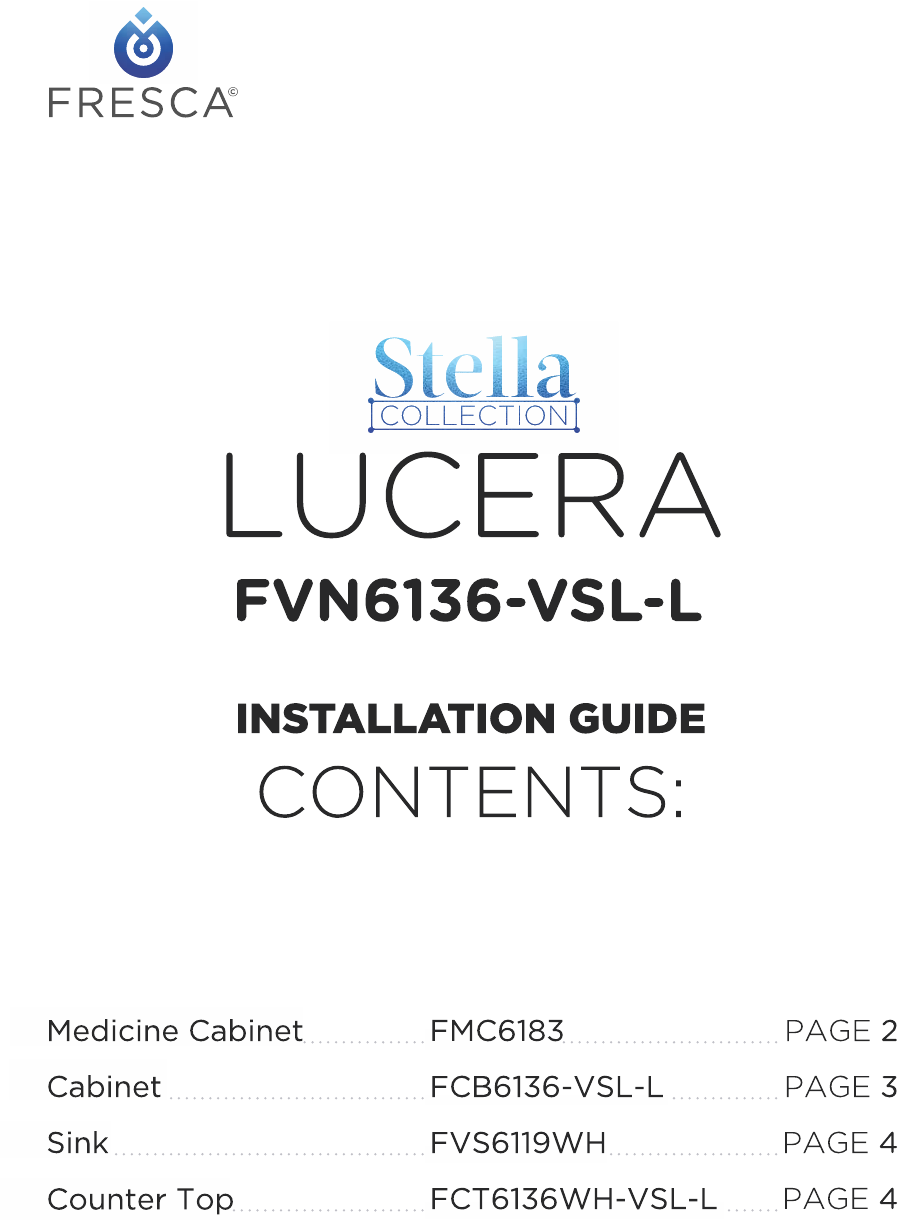

FYRNEI36-VSL-L ULCERATE INSTALLATION GUIDE FYNB136-VSL-L FMCBI83 Vanity Ensemble Medicine Cabinet Front FCTEIZ36WH-VSL-L Counter Top Front HEAVYSET Sink Front 36" ECBBIZE-VSL-L pa 7 Cabinet Front Ed 5.4" Ed FCB6136-VSL-L Cabinet Back >All dimensions & specifications are approximate and subject fo change without notice. © FVN6136-vSL-L. ULCERATE | INSTALLATION GUIDE ©2019 FRESCA™ All rights reserved.
FYRNEI36-VSL-L ULCERATE INSTALLATION GUIDE TOOLS FOR ASSEMBLY 3/8" & 1/40 Drill Blt Measure distance between the Once marked, drill the holes in the wall 8. mounting holes on the back of *Insert the anchors in the holes @. medicine cabinet @ and mark the perimeter on the wall IMPORTANT: Consult an expert for the proper screws/bolts to use when attaching to various constructions. Screws provided do not attach to all wall construction types.
FYRNEI36-VSL-L ULCERATE INSTALLATION GUIDE FRESCO CABINET INSTALLATION lace cabinet (D3 in designated location and Attach wall brackets (E} to mark the bracket position on the wall. the wall with the screws (F). IMPORTANT: Consult an expert Tor the proper screws/bolts to use when attaching to various constructions. Screws provided do not attach to all wall construction types. Anchors are not Apply a bid of the silicone and hang a required if brackets are installed in stud. cabinet (D} on the brackets {E).
FYRNEI36-VSL-L ULCERATE INSTALLATION GUIDE FRESCO coca pie, Apply a bead of silicone on top of the Apply a bead of silicone on top of the cabinet. Place counter top on the cabinet. counter top and bottom of the sink. Connect sink to the counter top. DRAWER REMOVAL & INSTALLATION DRAWER REMOVAL DRAWER INSTALLATION © FVN6136-vSL-L. ULCERATE | INSTALLATION GUIDE ©2019 FRESCA™ All rights reserved.
FYRNEI36-VSL-L ULCERATE INSTALLATION GUIDE Your tem may appear slightly different from the lust ration. MOUNTING RING Tf} RUBBER WASHER DRAIN PIPE [5 TAIL PIPE Rad qT MOUNTING RING 2 2, RUBBER WASHER 2 RUBBER WASHER a P-TRAP CLEAN OUT PLUG RUBBER WASHER 3 POP-UP INSTALLATION INSTRUCTIONS FOR SINKS Eel ells WITHOUT OVERFLOW WITH OVERFLOW © FVN6136-vSL-L. ULCERATE | INSTALLATION GUIDE ©2019 FRESCA™ All rights reserved.
FYRNEI36-VSL-L ULCERATE INSTALLATION GUIDE FRESCO TRAP INSTALLATION Connect a P-trap {J}. © FVN6136-vSL-L. ULCERATE | INSTALLATION GUIDE ©2019 FRESCA™ All rights reserved. This material may not be reproduced, displayed or distributed without the express prior written permission of the copyright holder.
