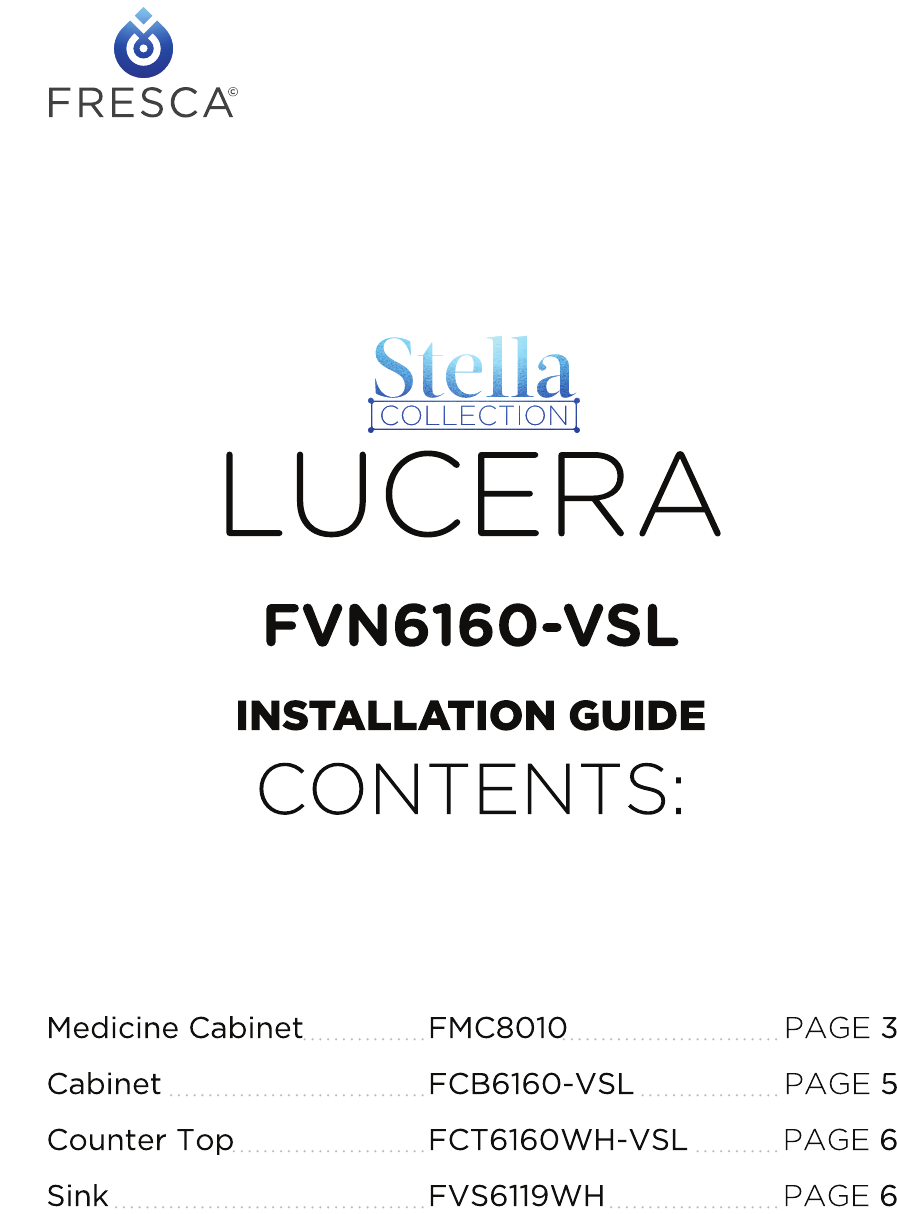

FVN6160-VSL | To ULCERATE © INSTALLATION GUIDE FRESCO FVN6160-VSL FMC8010 Vanity Ensemble Medicine Cabinet Front FCT6160WH-VSL / FVS6119WH Counter Top Front Sink Front FCB6160-VSL Cabinet Front FCB6160-VSL Cabinet Back >All dimensions & specifications are approximate and subject to change without notice. & FVN6160-VSL | ULCERATE INSTALLATION GUIDE ©2019 FRESCA™ All rights reserved.
FVN6160-VSL ULCERATE INSTALLATION GUIDE TOOLS FOR ASSEMBLY 1/8" Drill Bit SUPPLIED PARTS X29 Nn le THANES EN | Led aes eal FMC8058 19.5" 26" 5" SIDE MIRROR SIDE BRACKET FMC8090 26" 5" FMC8010 39.5 5" MOUNTING BRACKET (top) MOUNTING SMALL SCREW BRACKET (bottom) %13/8" Flat Head Screw INSIDE GLASS SHELF ‘WARNING: Risk of property damage. Use anchors rated for the loaded weight of the product. Refer to the anchor manufacturer's Instructions.
FVN6160-VSL ULCERATE INSTALLATION GUIDE IMPORTANT: Consult an expert for the proper screws/bolts to use when attaching to various constructions. Screws provided do not attach to all wall construction types. Anchors are not required if brackets are installed in stud.
FVN6160-VSL ULCERATE INSTALLATION GUIDE Place and hold the medicine cabinet in the cutout opening. ROUGH IN DIMENSION Draw the perimeter of the medicine cabinet on the wall. Cut the marked perimeter Frame the cutout opening. with appropriate tool. 4 STEPS TO FRAME THE CUTOUT OPENING i FMC80S8 FMC8090 FMC8010 19.5" 29.5" 39.5" Push a side of the glass shelf b. Snap the glass shelf (C) {C} Into left or right pins (J). Into the opposite side. c. Fill remaining holes with the plugs (K).
FVN6160-VSL ULCERATE INSTALLATION GUIDE CABINET INSTALLATION Place cabinet (D) in designated location and mark the bracket position on the wall. Apply a bid of the silicone and hang a cabinet (D) on the brackets (E). Attach wall brackets (E) to the wall with the screws (F). IMPORTANT: Consult an expert for the proper screws/bolts to use when attaching to various constructions. Screws provided do not attach to all wall construction types. Anchors are not required if brackets are installed in stud.
FVN6160-VSL ULCERATE INSTALLATION GUIDE CABINET INSTALLATION Apply a bead of silicone on top of the [6] Apply a bead of silicone on the top of cabinet. Place counter top on the cabinet. counter top and the bottom of the sink. Connect sink to the counter top. & FVN6160-VSL | ULCERATE INSTALLATION GUIDE ©2019 FRESCA™ All rights reserved. This material may not be reproduced, displayed or distributed without the express prior written permission of the copyright holder.
FVN6160-VSL ULCERATE INSTALLATION GUIDE P-TRAP AND POP-UP INSTALLATION INSTRUCTIONS [Teh Your item may appear slightly different from the illustration. oa" —10 SILICONE WASHER 2 & MOUNTING RING BRASS NUT RING Ld RUBBER WASHER DRAIN PIPE TAIL PIPE MOUNTING RING 2 a Tn RUBBER WASHER 2 RUBBER WASHER — P-TRAP CLEAN OUT PLUG RUBBER WASHER 3 POP-UP INSTALLATION INSTRUCTIONS FOR SINKS FOR SINKS WITHOUT OVERFLOW WITH OVERFLOW & FVN6160-VSL | ULCERATE INSTALLATION GUIDE ©2019 FRESCA™ All rights reserved.
FVN6160-VSL ULCERATE INSTALLATION GUIDE P-TRAP INSTALLATION Install tale pipe (G). Connect P-trap (J). & FVN6160-VSL | ULCERATE INSTALLATION GUIDE ©2019 FRESCA™ All rights reserved. This material may not be reproduced, displayed or distributed without the express prior written permission of the copyright holder.
