INSTRUCTION SHEET

Instruction Sheet 297403800 Rev. D 10.11.11

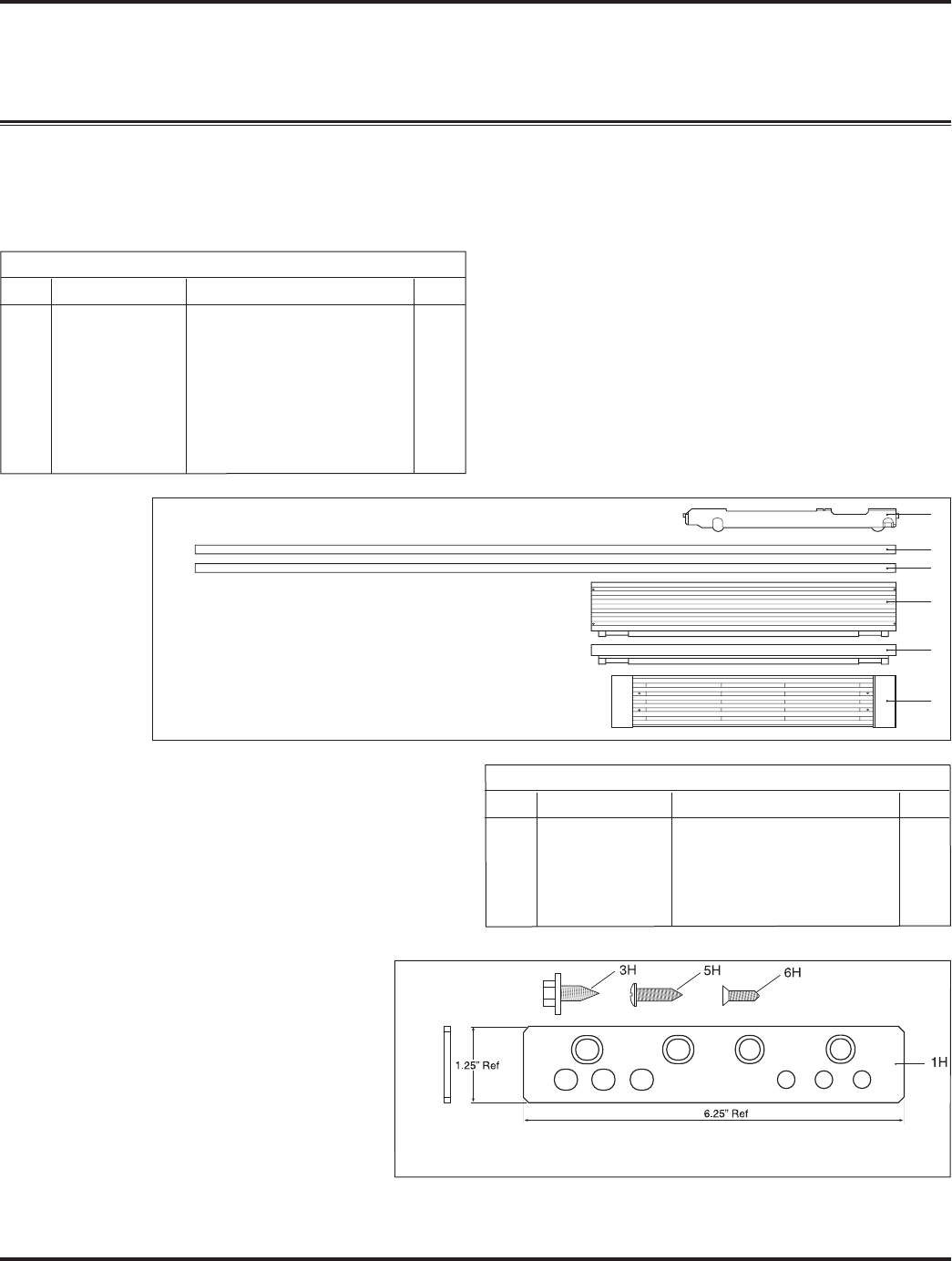

Parts Included in Kit TRIMKITEZ1 (Part# 297333500):

U19 All Refrigerator and All Freezer Trim Kit Installation

Product Line: U19 All Refrigerator and All Freezer Models

Single Trim Kit 297333500

ITEM PART NUMBER DESCRIPTION QTY

1 297349000 Trim Side RH U19 1

2 297349001 Trim Side LH U19 1

3 297332701 Trim Top Short U19 Single 1

4 297332801 Trim Top Tall U19 Single 1

5 297333301 Kick Plate U19 Single 1

6 297337700 Carton, Packaging 1

7 297343203 Hardware Pack Single U19 1

8 297276900 Lever Assembly Support System 2

Hardware Pack 297343203

ITEM PART NUMBER DESCRIPTION QTY

1H 297333900 Tie-Bar Hinge 1

3H 297236250 Screw 1/4-20 x .63 8

5H 050149 Screw TH #8-18 x .75 AB 6

6H 297142600 Screw FH #8-32 x .63 2

7H 297403800 Installation Instructions 1

Front View

Single Trim Kit

Hardware Pack 297343203

NOTE: All Hardware Pack components mentioned

throughout this instruction sheet will have an “H”

after the item number.

Single Trim Kit Components

Summary of content (8 pages)

PAGE 1
INSTRUCTION SHEET U19 All Refrigerator and All Freezer Trim Kit Installation Product Line: U19 All Refrigerator and All Freezer Models Single Trim Kit Components Parts Included in Kit TRIMKITEZ1 (Part# 297333500): Single Trim Kit 297333500 ITEM 1 2 3 4 5 6 7 8 PART NUMBER 297349000 297349001 297332701 297332801 297333301 297337700 297343203 297276900 DESCRIPTION Trim Side RH U19 Trim Side LH U19 Trim Top Short U19 Single Trim Top Tall U19 Single Kick Plate U19 Single Carton, Packaging Hardware Pack Singl
PAGE 2
INSTRUCTION SHEET Dual Trim Kit Components Parts Included in Kit TRIMKITEZ2 (Part# 297333600): Double Trim Kit 297333600 ITEM 1 2 3 4 5 6 7 8 9 PART NUMBER 297336900 297349000 297349001 297332700 297332800 297333300 297337700 297343202 297276900 DESCRIPTION Center Trim U19 Trim Side RH U19 Trim Side LH U19 Trim Top Short U19 Dual Trim Top Tall U19 Dual Kick Plate U19 Dual Carton, Packaging Hardware Pack Dual U19 Lever Assembly Support System QTY 1 1 1 1 1 1 1 1 4 Double Trim Kit 9 1 Front View 2 3 5
PAGE 3
INSTRUCTION SHEET TRIMKITEZ1 (Part# 297333500) Trim Kit Dimensions 79.00 ± .06” (2006.5 ± 1.5mm) 75.00 ± .06” (1905 mm) 25.25” (641mm) (min.) 25.25” (641mm) (min.) 33.00 ± .032” (838 ± .8mm) 33.00 ± .032” (838 ± .8mm) 34.74” (882 mm) 75.09” (1907 mm) 34.74” (882 mm) 79.09” (2009 mm) Instruction Sheet 297403800 Rev. D 10.11.
PAGE 4
INSTRUCTION SHEET TRIMKITEZ2 (Part# 297333600) Trim Kit Dimensions 79.00 ± .06” (2006.5 ± 1.5mm) 75.00 ± .06” (1905 mm) ” 25.25” (641mm) min. 25.25” (641mm) min. 66.00 ± .032 (1676.4 ± .8mm) 66.00 ± .032 (1676.4 ± .8mm) 67.12” (1705 mm) 67.12” (1705 mm) 79.09” (2009 mm) 75.09” (1907 mm) Safety: Always wear safety glasses when using power tools.
PAGE 5
INSTRUCTION SHEET Setting Up The Trim And Grill Assembly (Single and Dual Installations) Leveling System Install (Single and Dual Installations) 1. Lay the parts out on a cleared area face down. Be sure to place a drop cloth over the floor to prevent scratching trim kit and/or floor. (See Figure 1). 3. a. Lie unit on its back on packaging material or a drop cloth to prevent damage. b. Remove (3) screws from each side and discard. (See Figure 3) c.
PAGE 6
INSTRUCTION SHEET Trim Kit Installation Installing Trim Kit Tie Bar (Dual Installation Only) NOTE: Leveling may be required to line up the holes in steps “a” and “d”. 5. a. Tie units together by securing the mounting bracket at the back of the units with a 3/8” socket. (See Figure 5). b. Install center strip to insure the proper 3/8” gap is maintained between units. (See Figure 6). c.
PAGE 7
INSTRUCTION SHEET 8. a. Position Right Hand Side Trim on cabinet trim with bottom resting on the floor. b. Drill the 1/8” (3mm) pilot hole. c. Run screw in all the way and then back out. Remove side trim for later install. (See Figure 10). H Figure 10. 10. 75” (1905mm) High Opening With Top Trim (Single and Dual Installations) a. Slide units into place. Adjust height so top trim height reaches 75.09” (1907mm). Center units in opening and level.
PAGE 8
INSTRUCTION SHEET 12. Trim Kit Leveling (See Figure 16) (Single and Dual Installations) 14. Side Trim Attachment to Kitchen Cabinets (Single and Dual Installations) a. To raise front of unit, turn leg leveler to left with adjustable wrench to fit 1-1/4” hex. b. To raise back of unit, adjust bolt clockwise with 3/8” socket or flat head screwdriver a. Fasten bottom of side trim with screw. (See Figure 17) b. Fasten screws to top trim. (See Figure 18) To raise or lower door, adjust 7/16” bolt.
