6-50
POWER ON with MENU ON
<<MODE SELECT>>
SETUP BROWSE TEST
<<MODE SELECT>>
SETUP BROWSE TEST
<<MODE SELECT>>
SETUP BROWSE TEST
<<SETUP MODE>>
<<BROWSE MODE>>
ENTER
CANCEL
CANCEL
ENTER
ENTER
<<TEST MODE>>
CANCEL
ENTER
ENTER
<<SETUP MODE>>
XXXXX
<<BROWSE MODE>>
XXXXX
<<TEST MODE>>
Offline Feed Test
CANCEL
* Turn off to quit <<MODE SELECT>>.
ENTER
ENTER
CANCEL
ENTER
CANCEL
ENTER
CANCEL
CANCEL
CANCEL
*
: Cursor buttons
: Blinking
T Please wait

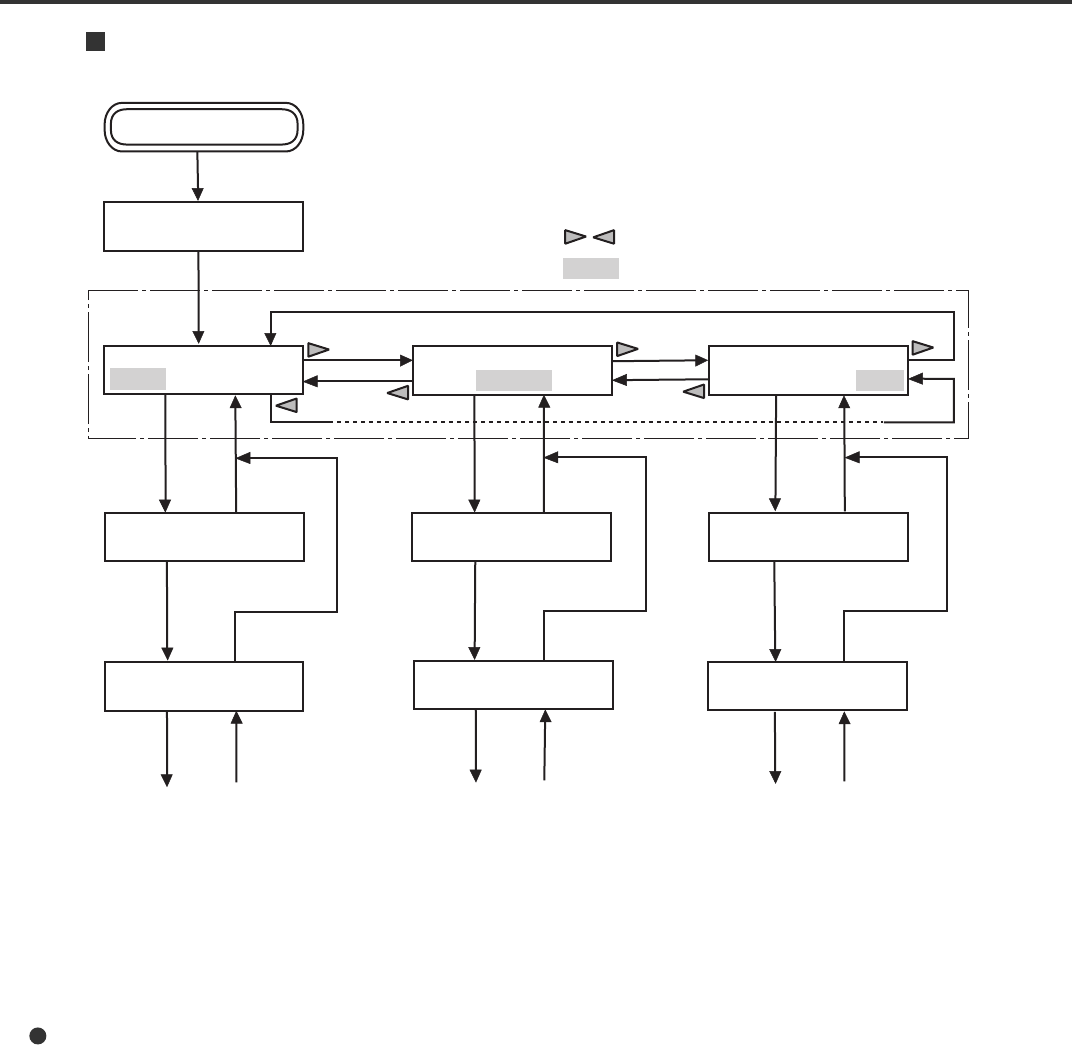

Mode selection (power on with MENU pressed)
15C6.P65 01.2.17, 5:47 PM50
