3-7
Using the setup, browse, and test modes
This scanner has the setup mode, browse mode, and test mode to ease operation for customizing
the scanner, glancing setup conditions of the scanner, and testing the scanner offline respectively.
There are two ways to enter these modes:
• Press
MENU
when the LCD indicates “Ready” or
• Turn the power on while pressing
MENU
.
Available functions differ with the two ways. For details, see Chapter 6.

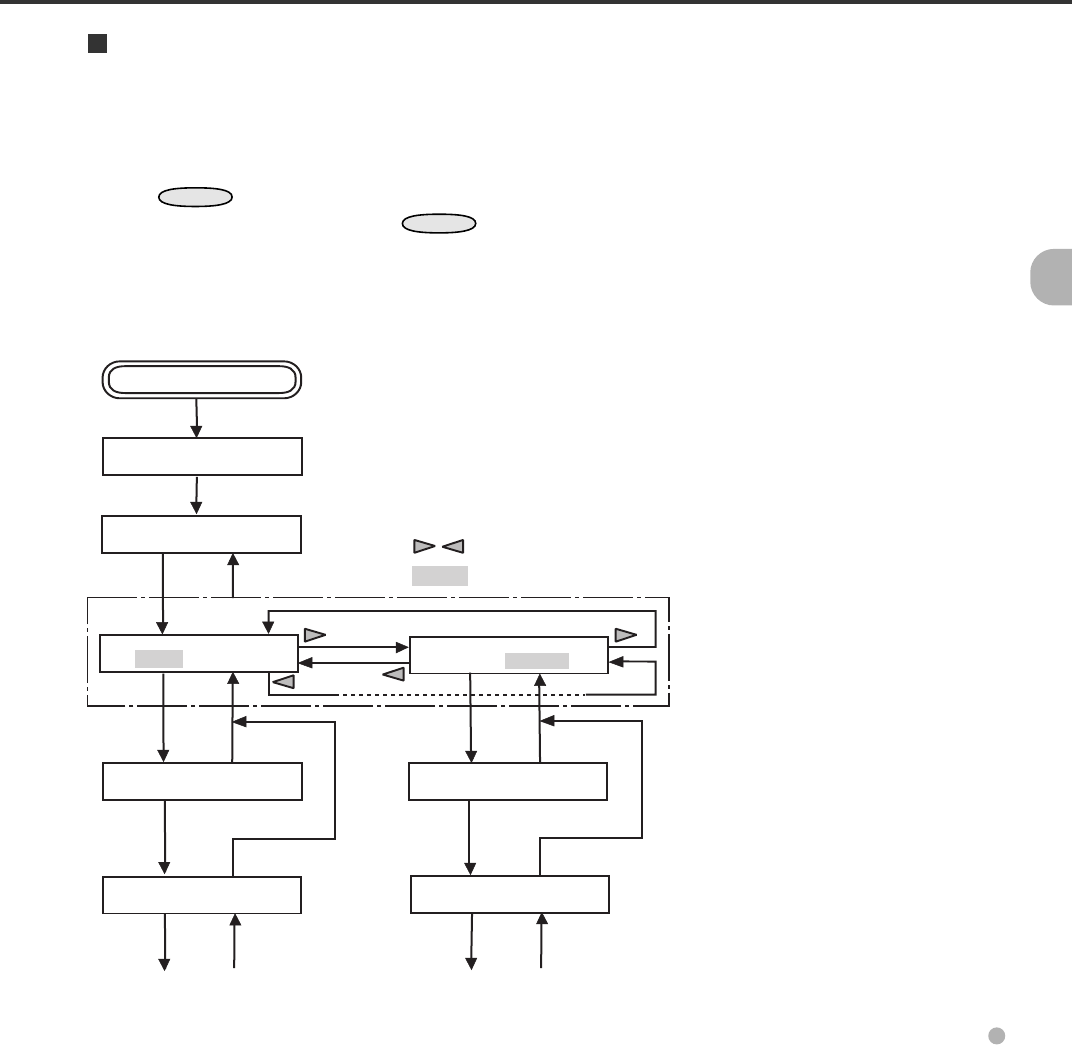

In the following way, you can use the setup mode and browse mode.
POWER ON
Ready
<<MODE SELECT>>
SETUP BROWSE
<<SETUP MODE>>
<<BROWSE MODE>>
CANCEL
ENTER
ENTER
CANCEL
ENTER
ENTER
<<SETUP MODE>>
XXXXX
<<BROWSE MODE>>
XXXXX
CANCEL
ENTER
CANCEL
ENTER
CANCEL
CANCEL
Please wait
CANCEL
MENU
<<MODE SELECT>>
SETUP BROWSE
: Cursor buttons
: Blinking
