6-2

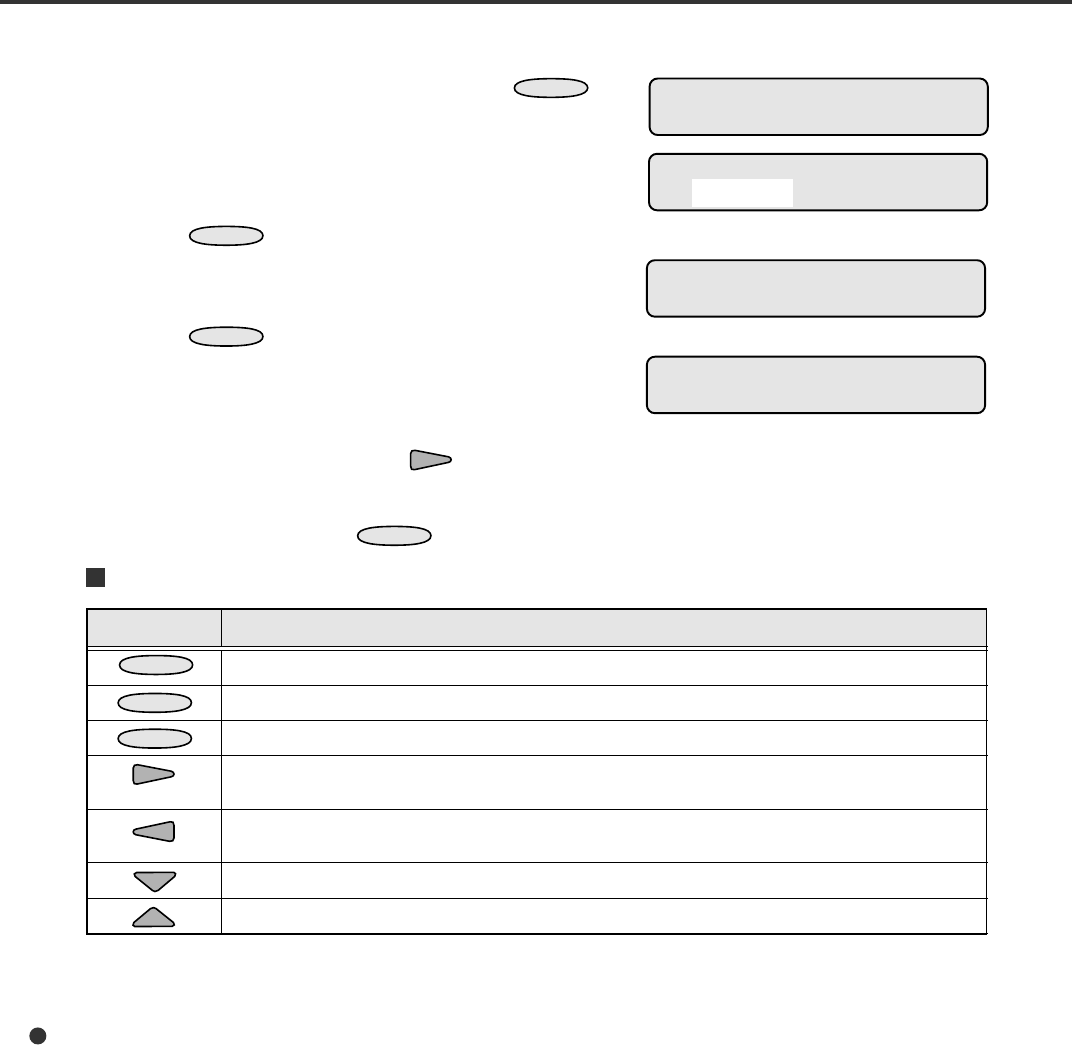

Activating the Setup or Browse Mode
To activate the setup mode, follow these steps:
1. While the LCD is indicating “Ready”, press
MENU
.
The <<MODE SELECT>> screen appears with
“SETUP” blinking.
2. Press
ENTER
.
The <<SETUP MODE>> initial screen (*) appears.
3. Press
ENTER
.
The <<SETUP MODE>> menu screen (**) appears.
To activate the browse mode, press before step 2 to make “BROWSE” blinking, then follows
steps 2 and 3. The <<BROWSE MODE>> screen appears.
To quit the setup mode, press
CANCEL
.
<<SETUP MODE>>
* <<SETUP MODE>> Initial screen
Ready
<<MODE SELECT>>
SETUP BROWSE
<<SETUP MODE>>
XXXXX
** <<SETUP MODE>> menu screen
Button functions in setup or browse mode
Button name Function
Returns to the <<SETUP MODE>> menu screen without saving the change (*).
Returns to the previous screen while saving the change (*).
Returns to the previous screen without saving the change (*).
• Displays the next function at the right in the menu.
• Moves to the right item.
• Displays the next test function at the left in the menu.
• Moves to the left item.
Changes parameters.
Changes parameters.
MENU
ENTER
CANCEL
* In browse mode, “saving the change” does not occur.
