6-12
Skew check
This function determines if abnormal skew is detected or not. You cannot change the setting if it is
set by the host computer.
RemarksLCD display
Skew Check
Options
On, Off (Default: Off)

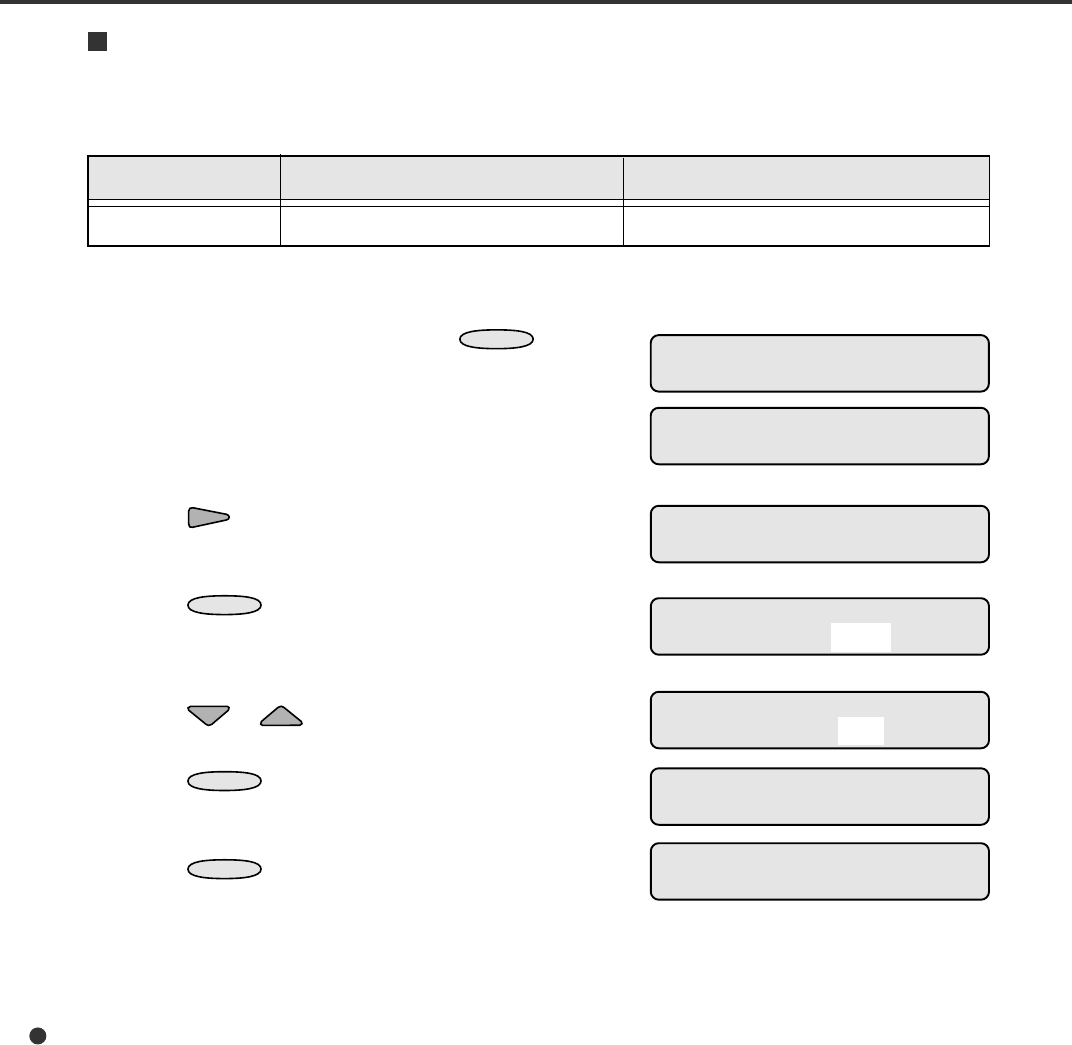

The following is an example of operation when you use this function.
1.
In <<SETUP MODE>> initial screen, press
ENTER
.
The <<SETUP MODE>> menu screen (Paper
Length Check) appears.
2. Press three times.
The <<SETUP MODE>> menu screen (Skew
Check) appears.
3. Press
ENTER
.
The option select screen appears with the
current option OFF blinking (blinking indicates
“changeable”).
4. Press or .
The displayed option changes (ON blinks).
5. Press
ENTER
to save the change.
The LCD returns to the <<SETUP MODE>>
menu screen (Skew Check).
6. Press
CANCEL
two times.
The LCD returns to the Ready screen.
<<SETUP MODE>>
<<SETUP MODE>>
Paper Length Check
<<SETUP MODE>>
Skew Check
Ready
Skew Check
Check: OFF
<<SETUP MODE>>
Skew Check
Skew Check
Check: ON
