6-18
1. In <<SETUP MODE>> initial screen, press
ENTER
.
The <<SETUP MODE>> menu screen (Paper
Length Check) appears.
2. Press repeatedly until “Paper Separation
Level” appears in the lower line of the menu
screen.
3. Press
ENTER
.
The option select screen appears with the
current option Normal blinking (blinking
indicates “changeable”).
4. Press or .
The displayed option changes (Thick to Thin).
<<SETUP MODE>>
<<SETUP MODE>>
Paper Length Check
<<SETUP MODE>>
Paper Separation Level
Paper Separation Level
Normal
Paper Separation Level
Medium Thin

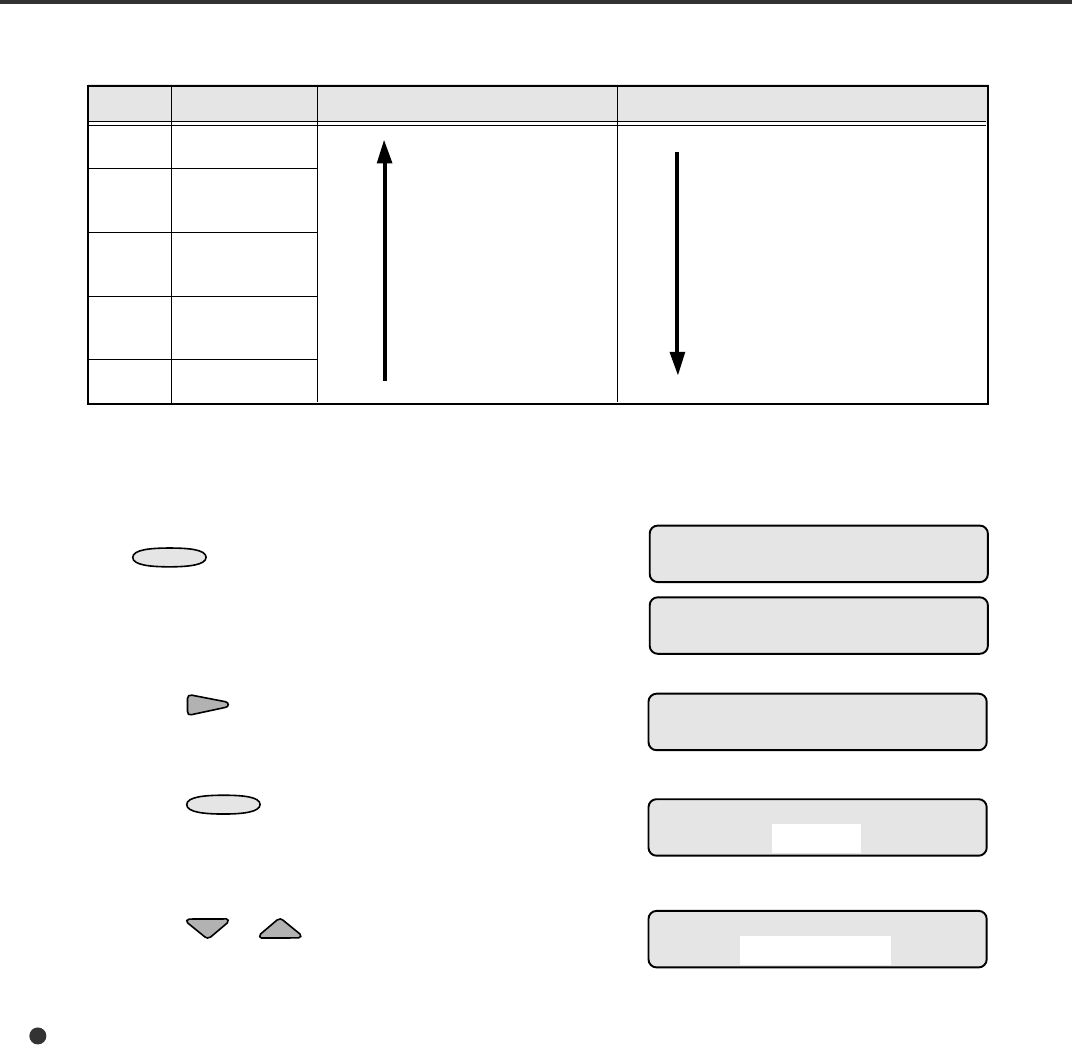

The following is an example of operation when you use this function.
Setting
Thick
Medium
Thick
Normal
Medium
Thin
Thin
Braking power
Very strong
Strong
Medium
(factory default)
Light
Very light
“Double feed” frequently occurs. “Mis-pick” or “SF2 ···” frequently occurs.
Make the braking
power stronger.
Make the braking
power weaker.
Set “braking power” according to the table below.
13C6.P65 01.2.17, 5:46 PM18
