6-23

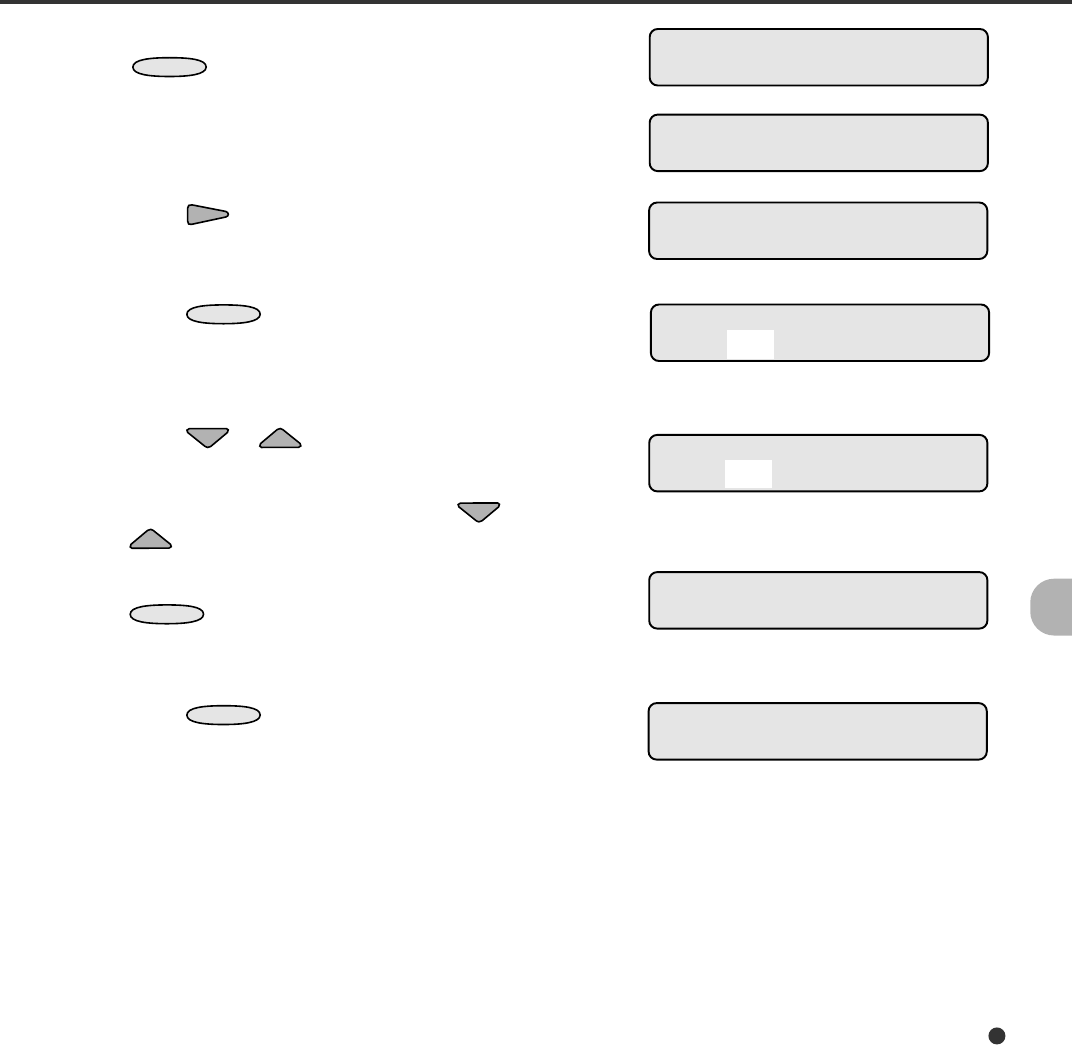

1. In <<SETUP MODE>> initial screen, press
ENTER
.
The <<SETUP MODE>> menu screen (Paper
Length Check) appears.
2. Press repeatedly until “Consumable
Counter” appears in the lower line of the
menu screen.
3. Press
ENTER
.
The option select screen appears with the
current value blinking (blinking indicates
“changeable”).
4. Press or .
The displayed value changes (1 to 256).
(Value can be changed in ten thousands of
sheets.) Pressing and holding down or
speeds up the change.
5. When the desired value appears, press
ENTER
to save the change.
The LCD returns to the <<SETUP MODE>>
menu screen (Consumable Counter).
6. Press
CANCEL
two times.
The LCD returns to the Ready screen.
<<SETUP MODE>>
<<SETUP MODE>>
Paper Length Check
<<SETUP MODE>>
Consumable Counter
Consumable Counter
256
0000 sheets
<<SETUP MODE>>
Consumable Counter
Ready
Consumable Counter
030
0000 sheets
