MODE 0 OPERATION = 0
Standalone Single Gobo Mode - For Focusing
Set X1 Dial - This number is for gobo selection.
Each gobo is individually selected according to the
following table:
GAM Product #TS6120, #TS6140
Rosco Product #206 3650 00000, # 206 3640 00000
Page 1 of 4
www.rosco.com

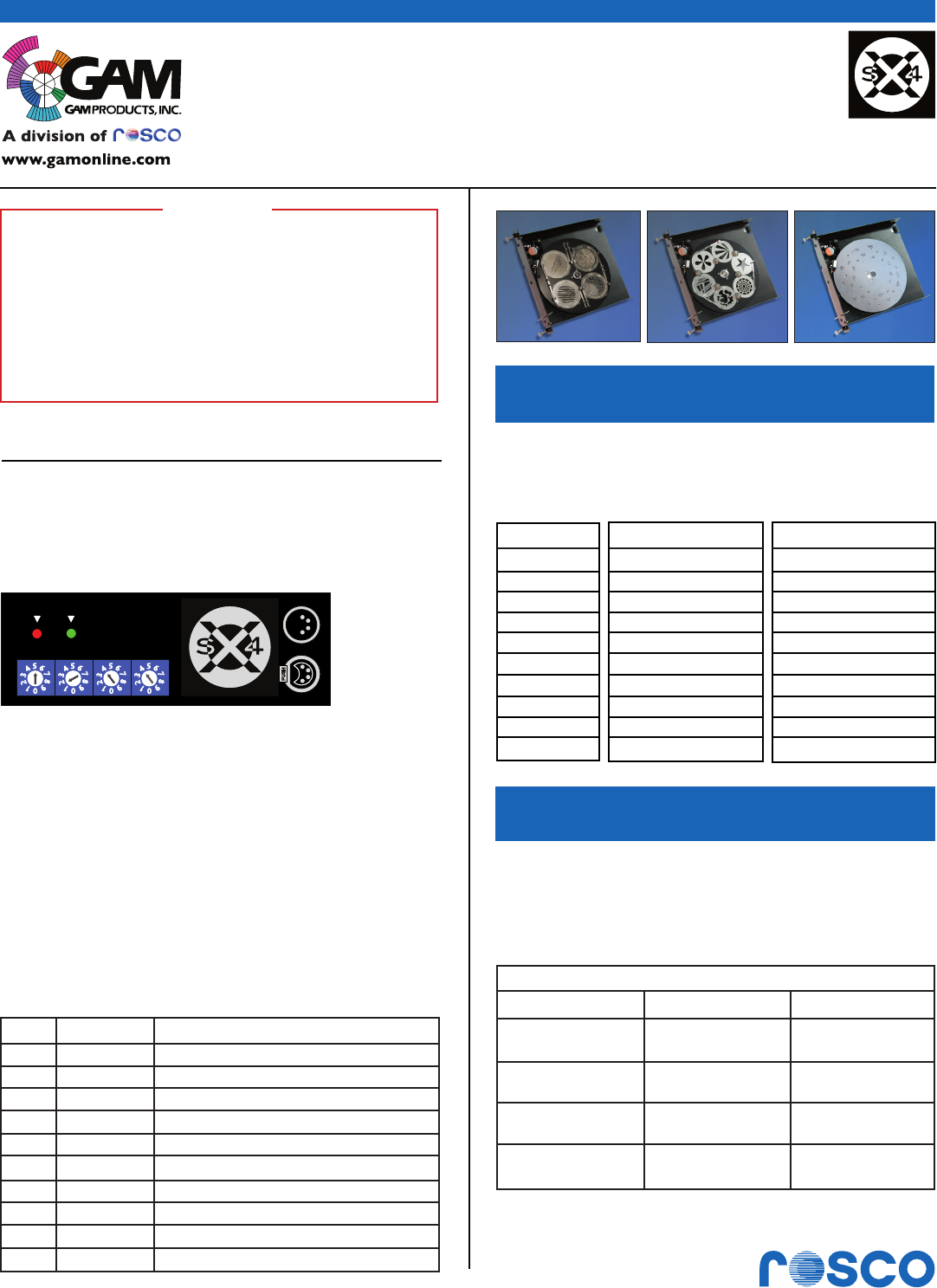

PRODUCT INSTRUCTIONS
SX4® 4 & 6 GOBO TRAY • DISC TRAY (Modes 6 - 9)
Four channel setting switches are on the control box.
The MODE switch to the far left.
Address then X10 and X100
It is powered by 24 volt DC and controlled by
DMX512, either from most color scroller power sup-
plies or a standalone power supply. Once powered,
the unit will show a red power LED to indicate the
power is on. The unit is also fitted with a green LED
which indicates the status of operation.
After it is powered, the unit needs to initialize to find
the home position of the gobos. This takes about 2
seconds during which time the green LED will flash.
Once the home sensing is complete the flashing will
stop. If the LED is not lit then DMX is not present. If
the LED continues flashing, it means there has been
a fault detecting the sensor and the unit operates but
without correct index positioning.
CAUTION
When using a DMX device with a discharge lamp such
as CDM or an HMI, it’s suggested that you separate the
power circuit for the discharge lamp from the DMX control
device. When using DMX controlled units such as an In-
dexing TwinSpin™ or SX4® Gobo Changer or DMX Loop
Tray, the “noise” from the discharge lamp ballast may
cause some interference and or damage the electronics.
For best results we recommend providing separate line
voltage to the DMX devices and the discharge light fixture.
X1MODE X10
X100
Red
Green
MODE DMX SETTING FUNCTION
0 0 Standlone: select one gobo for focus
1 1 DMX gobo select by fader
2 2 DMX gobo select speed & position
3 0 Standalone: speed, direction, timed
4 0 Standalone: 2 to 6 gobos, timed
5 0 Standalone: continuous rotate, set speed
6 1 DMX controlled rotation only
7 1 DMX control index / rotate one fader
8 2 DMX index/rotate on two faders
9 2 16 bit indexing / 10,000 positions
MODE 1 OPERATION • MODE SWITCH = 1
DMX Gobo Selector - One Channel Operation
Set DMX address on SX4® - This number is the desk
control (fader) channel. Gobo will change at the levels
shown in the charts below. Moves at maximum speed
and via the shortest route.
DMX Level
255
192
191
128
127
64
63
0
FOUR-GOBO CHANGER
Channel Level
100%
76%
51%
26%
0%
Four
Gobo 4
Gobo 3
Gobo 2
Gobo 1
XI SIX-GOBO CHANGER FOUR-GOBO CHANGER
Selection Gobo Displayed Gobo Displayed
0,11 1 1
22 2 2
33 3 3
44 4 4
55 5 4
66 6 4
76 6 4
86 6 4
96 6 4
