® F V 1 Art. 1252 GB D GARDENA S NL V 2 Art.

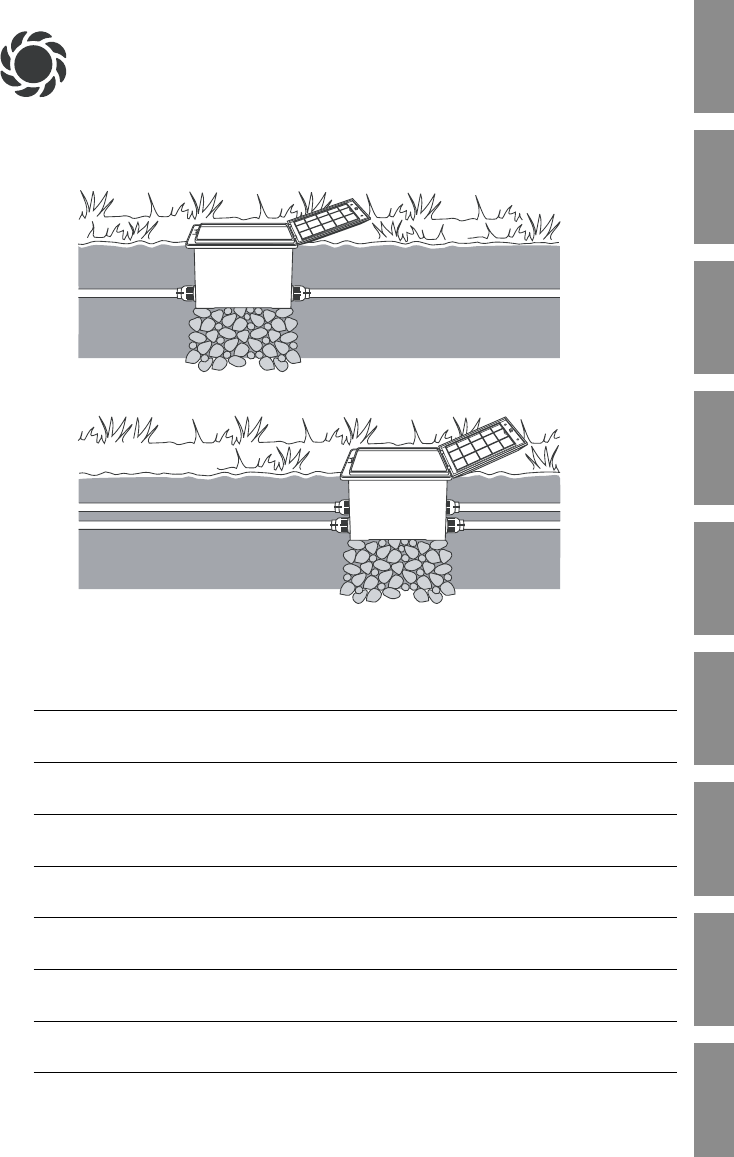

GARDENA Irrigation Valve V 1 / V 2 The Irrigation Valve is installed upstream in the watering system (e. g. Pop-up Sprinklers; Micro-Drip-System), for example, in the ground. Compliance with the enclosed operating instructions provided by GARDENA is a prerequisite for proper use of the Irrigation Valve. GB Please read these operating instructions carefully and observe the notes given.
1 Close off nipple on inlet-side : 0 GB 5 1. Push the short telescopic pipe A into the nipple on the inletside 5 which is not to be flushed. 2. Push the bracket 0 into the elongated holes of the nipple on the inlet-side 5. The short telescopic tube A is fixed in place. 3. Screw the end cap B onto the short telescopic pipe A.
J I H K H J I 6. Trouble-Shooting Fault Possible Causes Remedy Solenoid valve does not open, no water flow Control Unit / Radio Receiver not connected correctly to solenoid valve. v Connect Control Unit / Radio Receiver correctly to solenoid valve. No water supply. v Turn on water supply. Pipe closed. v Remove end cap Solenoid valve installed opposite to flow direction. v Turn solenoid valve in box (observe the flow direction).
8. Accessories GARDENA Connecting Pipe GARDENA Hose Clip • Art. No. 1580 / 1582 • Art. No. 1591 Control GARDENA GARDENA GARDENA GARDENA GARDENA • • • • Filter GARDENA Central Filter GB Connection Radio Receiver R 2 / R 4 Control Unit Soil Moisture Sensor Rain Sensor electronic Extension Cable for Soil Moisture Sensor and Rain Sensor electronic Art. No. 1244 / 1245 Art. No. 1250 Art. No. 1187 Art. No. 1189 • Art. No. 1186 • Art. No. 1506 9.
