Operation Manual

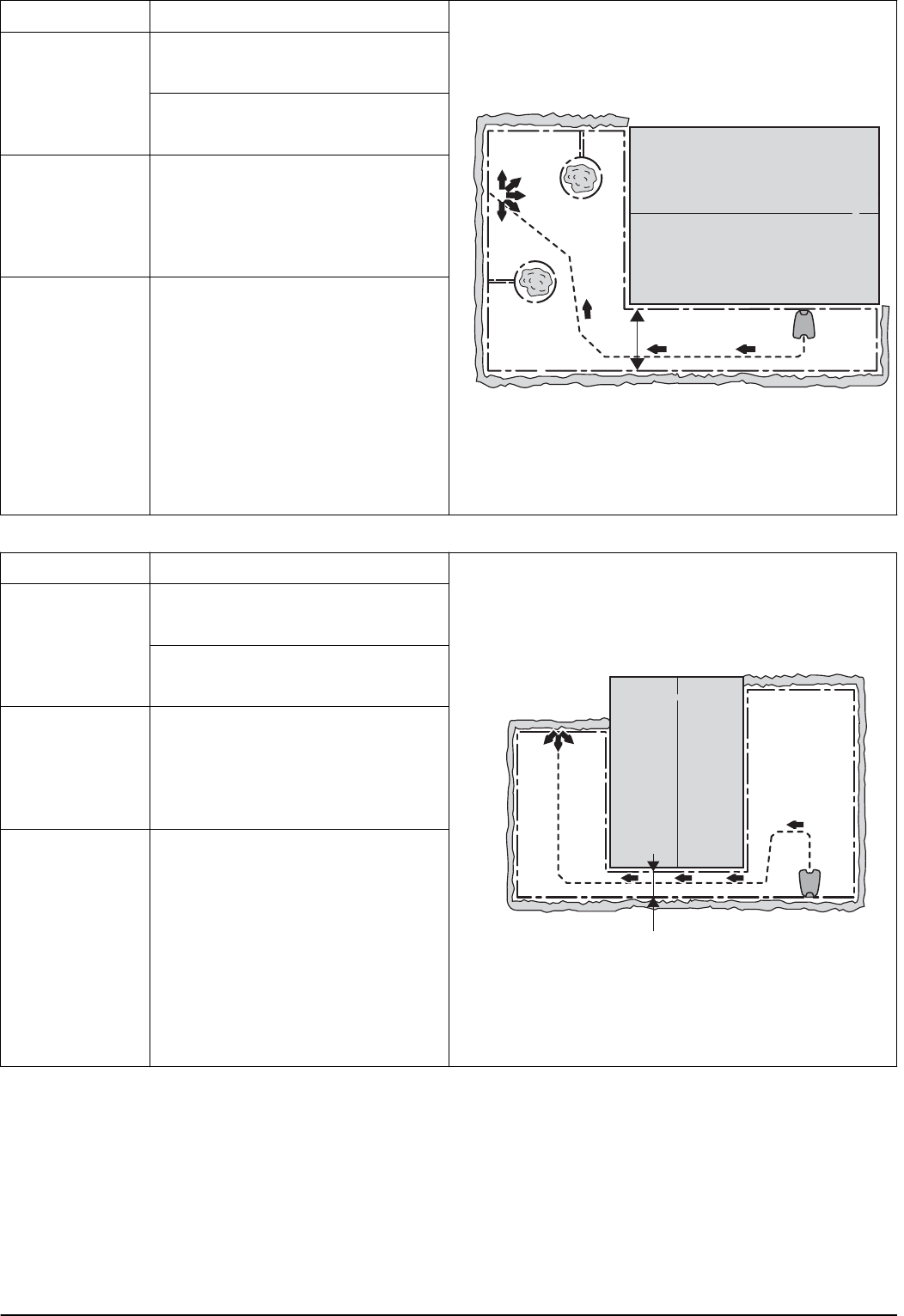

3.20.3 L-shaped garden with a couple of islands and the charging station installed in the narrow area
Area 800 m
2
3 m / 10 ft
Timer R100Li, R100LiC
07:00 - 24:00, Monday to Sunday
R130Li, R130LiC, R160Li, R160LiC
08:00 - 22:00, Monday to Sunday
Lawn coverage Area 1:
How? Guide
How far? X m
How often? 60%
Remarks The Lawn coverage (How often?) for
Guide must be specified as a value
corresponding to the largest part of
the working area as most of the work-
ing area can easily be reached by the
robotic lawnmower following the
guide wire out from the charging sta-
tion. Make sure guide wire is laid ac-
cording to recommendations in Lay-
ing and connecting the guide wire on
page 19 .
3.20.4 U-shaped garden linked with a narrow passage
Area
1 000 m
2
1,5 m / 5 ft
Timer R100Li, R100LiC
06:00 - 24:00, Monday to Sunday
R130Li, R130LiC, R160Li, R160LiC
07:00 - 24:00, Monday to Saturday
Lawn coverage Area 1:
How? Guide
How far? X m
How often? 40%
Remarks The guide wire must be placed along
the narrow passage to ensure that
the robotic lawnmower can with ease
locate the charging station from the
left hand side of the working area.
60% is selected for Lawn coverage ,
How often? as the left hand area is
nearly half of the total area. Make
sure guide wire is laid according to
recommendations in Laying and con-
necting the guide wire on page 19 .
34 - Installation 307 - 002 - 11.10.2017
