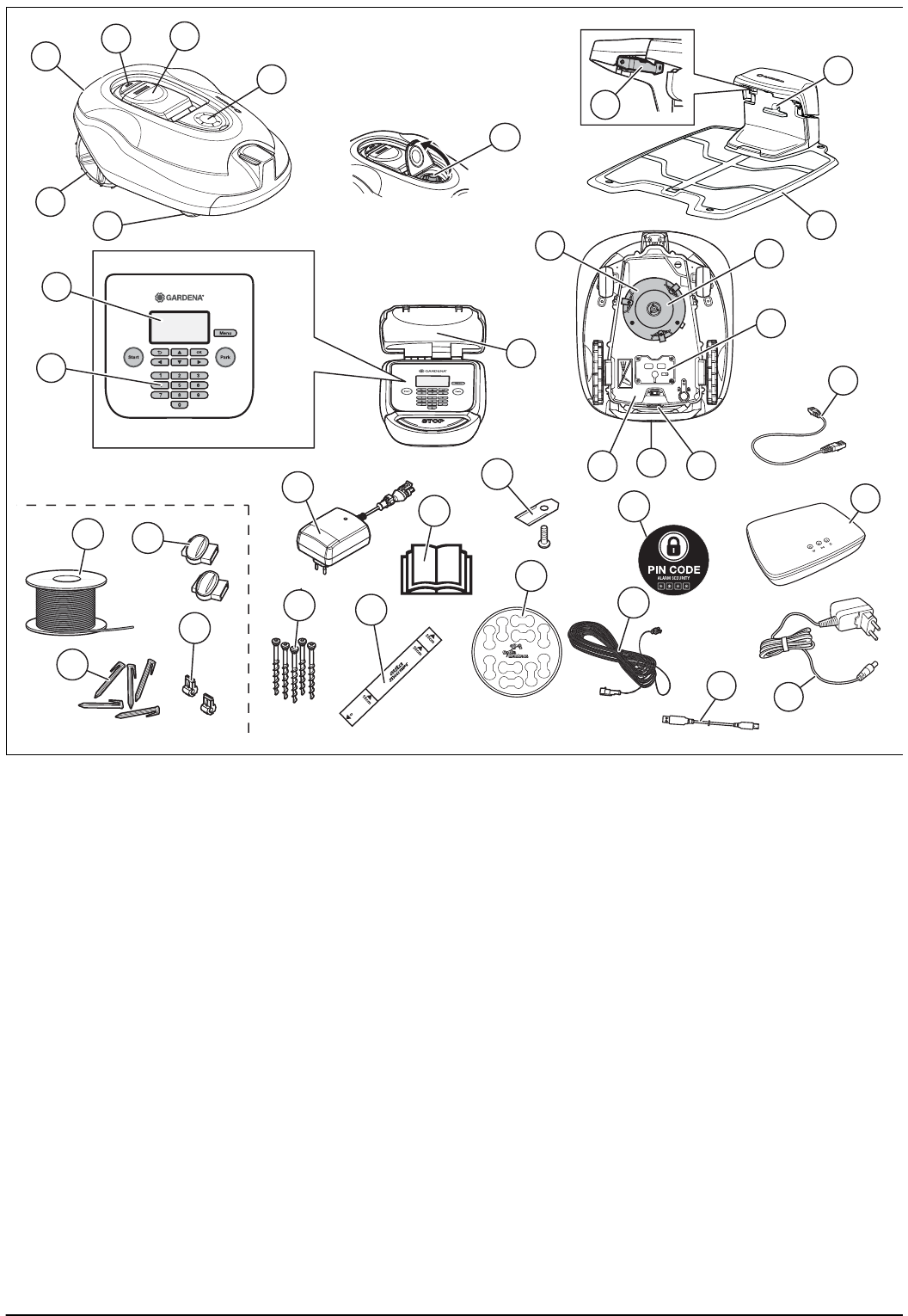

1.3 Product overview
1
12
13
11
2
3
4
5
8
7
10
14
9
17
15
16
21
32
19
20
24
25
26
22
27
28
29
30
31
6
23
18
33
34
35
The numbers in the figure represent:
1. Body
2. Hatch to cutting height adjustment
3. Hatch to display and keypad
4. Stop button
5. Rear wheels
6. Front wheels
7. Cutting height adjustment
8. Contact strips
9. LED for operation check of the charging station and
boundary wire
10. Charging station
11. Rating plate
12. Display
13. Keypad
14. Cutting system
15. Chassis box with electronics, battery and motors
16. Handle
17. Main switch
18. Battery cover
19. Blade disc
20. Power supply (the appearance of the power supply
may differ depending on market)
21. Loop wire for boundary loop and guide wire
22. Couplers for loop wire
23. Pegs
24. Connector for the loop wire
25. Screws for securing the charging station
26. Measurement gauge for help when installing the
boundary wire (the measurement gauge is broken
loose from the box)
27. Operator’s Manual and Quick Guide
28. Cable markers
29. Extra blades
30. Low voltage cable
31. Alarm decal
32. USB cable for Software-Updates
33. Smart Gateway (only for GARDENA, R100LiC,
R130LiC and R160LiC)
34. Smart Gateway LAN-cable (only for GARDENA,
R100LiC, R130LiC and R160LiC)
35. Smart Gateway Power Supply (only for GARDENA,
R100LiC, R130LiC and R160LiC)
