Installation Guide

ManualsBrandsGardenique ManualsOutdoors23 in. 10 gal. Mocha Wicker Urn with Blue LED Light Patio Pond Kit

PLEASE CALL 1-888-755-6750 BEFORE RETURNING TO THE STORE.

WWW.THEPONDBOSS.NET

Patio Pond Mocha Wicker Urn

With LED Lights

ITEM #PPWUMB10/PPWUMW10

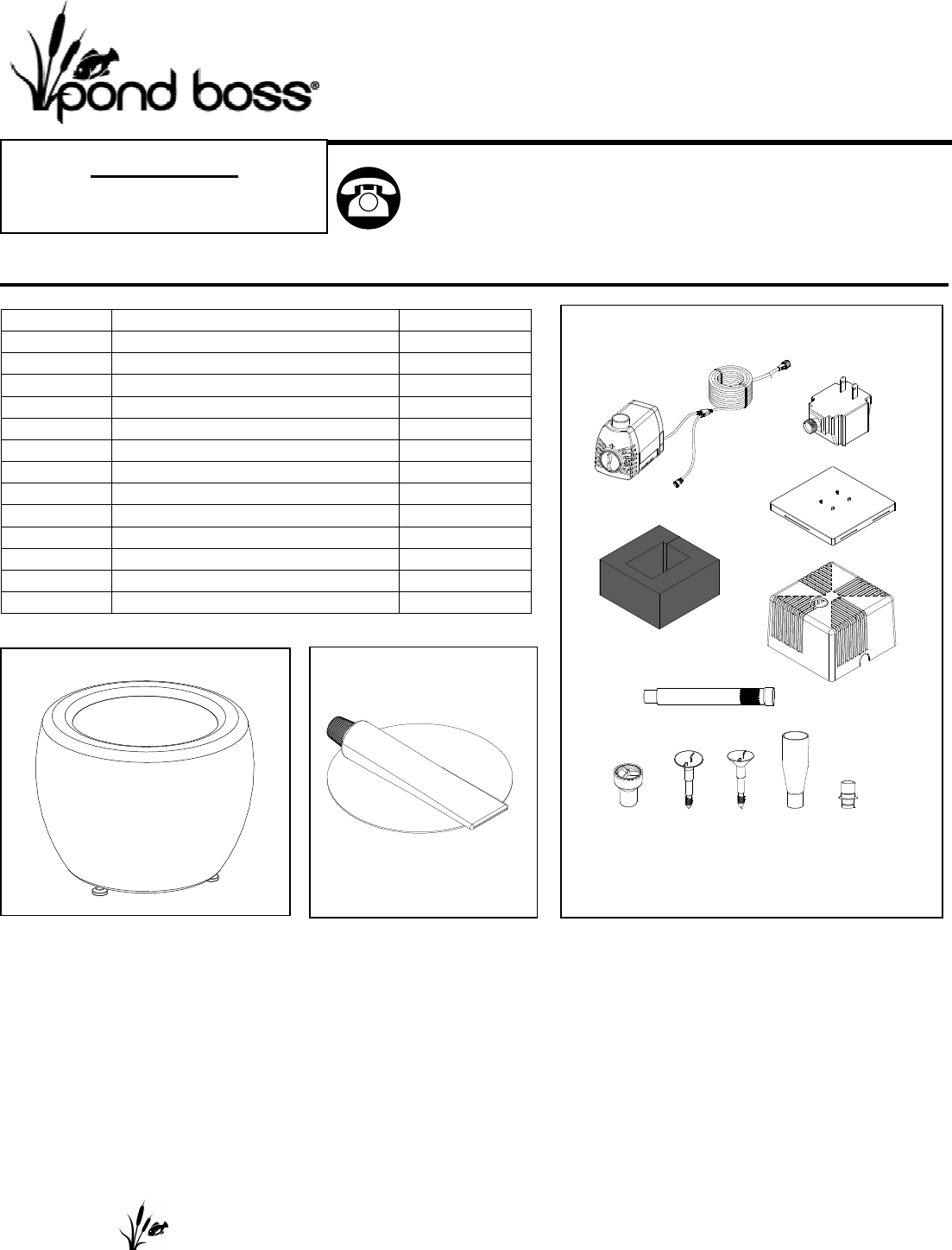

PACKAGE CONTENTS

Part Description Quantity

A Wicker urn w/ liner and LED’s 1

B Pump w/splitter 1

C Transformer 1

D Base plate 1

E Filter block 1

F Filter cover 1

G Extension tubes 1

H Waterspray nozzle 1

I Waterbell nozzle insert 1

J Trumpet nozzle insert 1

K Lower fountain head nozzle 1

L Adapter 1

M Liner patch kit 1

REMINDER

CALL 1-888-755-6750

BEFORE RETURNING TO STORE.

Questions, problems, missing parts?

Before returning

to your retailer, call our customer service department at

1-888-755-6750, 8 a.m.-6 p.m., EST, Monday-Friday, or

email us at customercare@thepondboss.net. Or visit our

website www.thepondboss.net.

Summary of content (6 pages)

PAGE 1
Patio Pond Mocha Wicker Urn With LED Lights ITEM #PPWUMB10/PPWUMW10 REMINDER CALL 1-888-755-6750 BEFORE RETURNING TO STORE. Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-888-755-6750, 8 a.m.-6 p.m., EST, Monday-Friday, or email us at customercare@thepondboss.net. Or visit our website www.thepondboss.net.
PAGE 2
WARNINGS AND CAUTIONS – PUMP WARNING • To reduce the risk of electric shock, be certain that it is connected only to a properly grounded, grounding-type receptacle (GFCI). • Do not exceed the voltage shown on the transformer. • Do not submerge the transformer. • Always disconnect pump and transformer from the power source before beginning any maintenance or work on the pump. • Inspect cord for damage before installation and/or maintenance. Replace the entire pump assembly if damage is found.
PAGE 3
2. Assemble the base plate, pump, filter block and filter cover. Fig. 2 Filter cover Filter block Pump Base plate Fig. 2 3. Connect extension tubes to the pump using the supplied adapter. Fig. 3 Extension tube Adapter Fig. 3 4. Choose a fountain head for the desired water effect, and assemble your choice as shown in Fig. 4. I J H K K G G G Fig. 4 5. Place the pump assembly inside the center of basin. Fig. 5 Fig. 5 PLEASE CALL 1-888-755-6750 BEFORE RETURNING TO THE STORE. WWW.THEPONDBOSS.
PAGE 4
6. Fill the basin with water, making sure that the plug is closed. Fig. 6 Fig. 6 7. Connect the pump to the transformer. Screw on the locking nut. Fig. 7 Transformer Plug from pump Fig. 7 8. Connect the transformer to a proper power source. Fig. 8 GFCI Fig. 8 CARE AND MAINTENANCE • Clean the pump and filter regularly depending upon the environment in which it is operated. Clean the pump when it is visibly soiled or when a drop in performance is detected.
PAGE 5
REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-888-755-6750, 8 a.m.-6 p.m., EST, MondayFriday, or email us at customercare@thepondboss.net.
PAGE 6
LIMITED WARRANTY All pumps and electrical products are warranted to the user against defective material and workmanship, under normal working conditions. This warranty period begins on the date of purchase by the original purchaser. Unless otherwise specified all pond boss® electrical products are warranted to the user against defective material and workmanship, under normal working conditions for 1 year from the date of purchase. • Pond and Waterfall pumps are warranted for 3 years.
