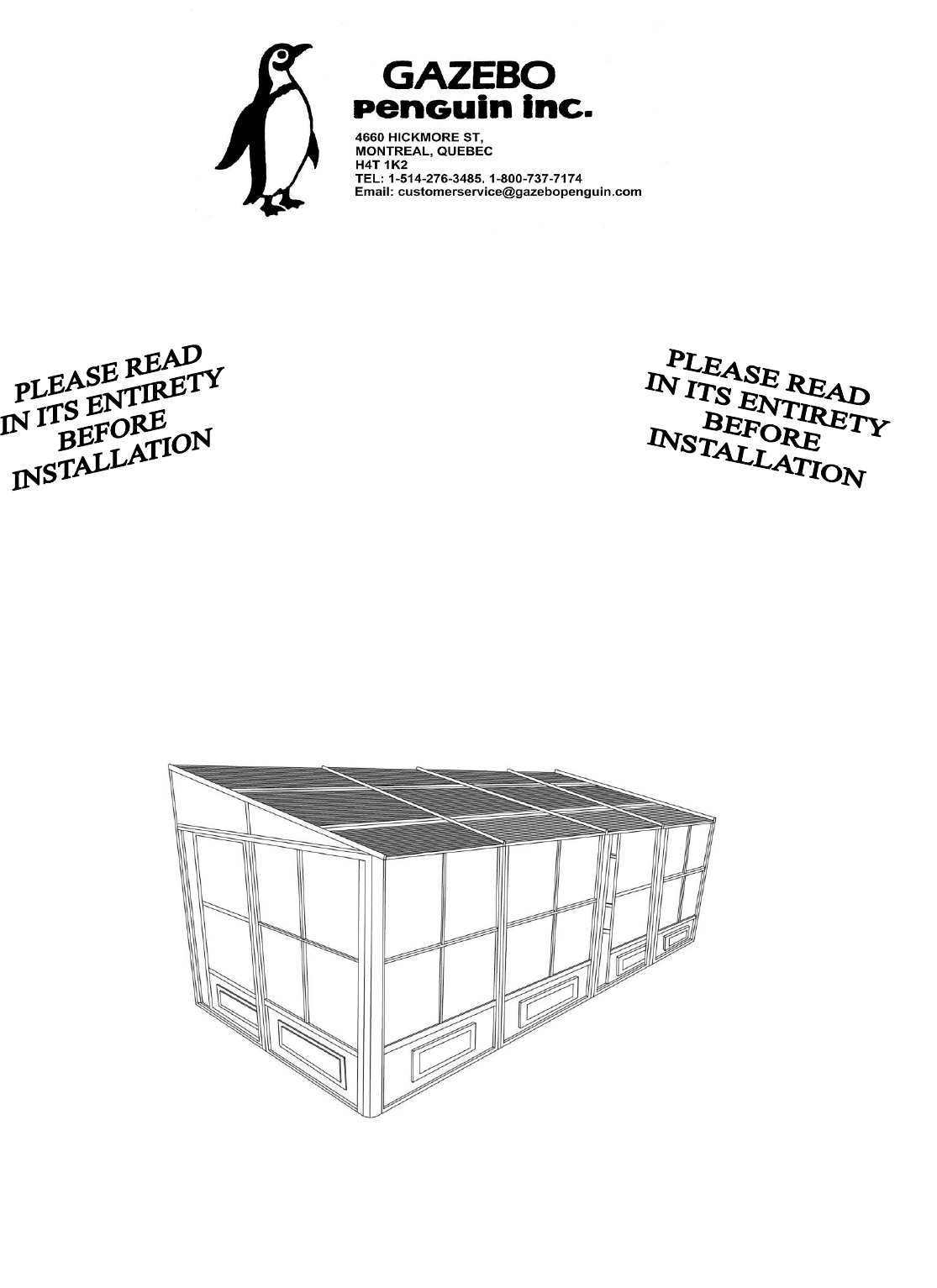

W1608MR-12 SAND W1608MR-32 SLATE ASSEMBLY INSTRUCTIONS 8 X 16 SOLARIUM DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS Assembly by two or three adults is suggested. Requires 96” clearance at the wBase Dimensions 190’’x 94 1/2’’, Largest Dimensions 190’’x98 1/2’’ (see pg.15) ZZZ-187.W1608MR.0529-20.GP.EN.
TOOLS REQUIRED: Screwdriver (Philips #2) Knife File (smooth) Needle-nosed pliers Rubber mallet Step ladder (minmum 6' in height) Spatula Power drill Tube of silicon Drill bit 5/16" cement (according to surface) Round file + flat 2”x4”x8” wood BEFORE STARTING: Ensure that you have a solid base, such as concrete or wooden deck, not slanted more than 1” per 8’.
ASSEMBLE PIECES BEFORE SCREWING THEM TO THE WALL STEP #3 Assemble ML-3, O-3, N-3, and MR-3 as shown and position evenly above vertical guides, at 96’’ from the ground. Secure wall track and vertical tracks to brick or cement wall by drilling through the aluminum and using screws Xx-3. Insert the 2 horizontal guides, I3 & J3 at the top of the frame. Make sure the 2 frames are at the correct level, if not, use shims to compensate. Do not use tools to force.
STEP #5 F Set left rafter F over last bracket then secure it with Bb-3 screw and continue screwing through joint K-3 with the Bb-3 screw. Secure to Q-3 bracket with self-tapping screw (PQ-3). Repeat on right side with rafter F1. F STEP #6 Set G rafters over the bracket with Bb-3 screws at the top and two (2) Z-3 screws over the preset brackets on the rafters. Set G rafter on each joint and use Z-3 screws manually. Do not use power drill to screw Z-3. K3 ZZZ-187.W1608MR.0529-20.GP.EN.
STEP #7 DOOR UNIT(S) MUST BE ASSEMBLED INSIDE OF SOLARIUM. Slide upper door track F-3 into wheels of sliding door C-3. Slide lower door track G-3 and make sure inserts are close enough to the frame to attach. Use bolt Bb-3 to affix the plastic stopper H-3 on each end of top door rail F-3. Use Oo-3 screws to affix upper door rail and cap Nn, at each end of top rail door. ZZZ-187.W1608MR.0529-20.GP.EN.
STEP #8 Lift up door and track inside of solarium then set it over the door opening by screwing at the top. First use bolts (Ww) and washers (Gg-3) on the inside and female bolts (Cc-3-2) on the outside for the top assembly. See diagram below. Attach lower track with bolts (Cc-3) and washers (Gg-3). Set up door latch on the side required for your door to lock, adjust latch as required. Ww STEP #9 Install crossbeams (L1, L2) under rafters (F, F1, G).
STEP #10 Slide roof panels (A, A1) onto lower track of rafters (F, F1, G). ZZZ-187.W1608MR.0529-20.GP.EN.
STEP #11 Slide roof panels (B, B1) onto middle track of rafters (F, F1, G). ZZZ-187.W1608MR.0529-20.GP.EN.
STEP #12 Set roof panels (C, C1) onto rafters (F, F1, G). Bb-3 ZZZ-187.W1608MR.0529-20.GP.EN.
STEP #13 1. Close front end of rafters using brackets (M) with 2 bolts (Bb-3) for each. 2. Slide back down middle and lower roof panels (A, A1, B, B1) ZZZ-187.W1608MR.0529-20.GP.EN.
STEP #14 Anchor the solarium to the deck or floor securely using screws and shields supplied. See diagram below. SPECIAL NOTES To remove a screen, remove the two (2) screws at the top of the frame then pull sideways to the opposite end of the handles to remove. To remove wind panels, push or pull to one side, making sure that locking pin is not locked then remove panels gently, panels are easy to remove. CLEANING INSTRUCTIONS: Use only mild or warm soapy water, no strong or abrasive cleaning products.
DESCRIPTION PACKED IN BOX 19-029-12 ROOF PANEL A 1 2 2 2 10-496-12 REGULAR FRAME A-3 3 19-032-12 ROOF PANEL B1 1 08-158-12 BOLT Bb-3 4 19-034-12 ROOF PANEL C1 08-161-12 BOLT Cc-3 10-499-12 SLIDING DOOR FRAME D-3 08-165-12 RIGHT DOOR LATCH Dd-R-3 19-052-12 SCREW Ee-3 1 DESCRIPTION PACKED IN BOX 19-030-12 ROOF PANEL A1 1 2 19-031-12 ROOF PANEL B 1 2 2 1 3 1 1 2 2 1 3 1 12-037-12 FEMALE BOLT Cc-3-2 4 12 08-169-12 LEFT DOOR LATCH Dd-L-3 4 2 2 11-544-12 CONNECTING PIEC
19-036-12 RIGHT ROOF BAR F1 19-037-12 REGULAR ROOF BAR G 08-187 WASHER Gg-3 12-161 NUT Hh-3 08-193-12 PLASTIC PLUG Ii-3 10-502-12 CORNER CONNECTOR K-3 4 4 4 4 4 4 QTY PACKED IN BOX QTY DESCRIPTION DESCRIPTION PACKED IN BOX 1 11-545-12 TOP DOOR RAIL F-3 4 2 3 11-546-12 BOTTOM DOOR RAIL G-3 4 2 22 08-138-12 PLASTIC STOPPER H-3 4 4 4 10-500-12 LEFT SIDE RECEIVER I-3 4 1 12 10-501-12 RIGHT SIDE RECEIVER J-3 4 1 2 19-083-12 LEFT CROSSBEAM L-1 4 1 4 5 DRAWING 19-084-12 R
19-048-12 LEFT GABLE JOINT P-3 19-049-12 RIGHT GABLE JOINT Q-3 19-045 LEFT FRONT GABLE PANEL Ss-3 15-126-12 MOUNTING BRACKET U-3 DESCRIPTION PACKED IN BOX 1 13-045-12 SELFTAPPING SCREW PQ-3 4 4 1 19-044 LEFT BACK GABLE PANEL Rr-3 1 1 1 19-046 RIGHT BACK GABLE PANEL Tt-3 1 1 4 3 19-047 RIGHT FRONT GABLE PANEL Uu-3 1 1 4 1 12-047-12 BOLT Ww 4 12 10-529-12 SCREW FOR FIXING TO WALL Xx-3 4 4 4 1 DRAWING (ASSEMBLED ON ROOF BAR G) 19-050-12 LEFT WALL GUIDE Vv-3 QTY PACKED IN BO
19-029-32 ROOF PANEL A 10-496-32 REGULAR FRAME A-3 PACKED IN BOX 4 08-165-32 RIGHT DOOR LATCH Dd-R-3 19-052-32 SCREW Ee-3 1 2 19-031-32 ROOF PANEL B 1 2 2 1 3 1 1 2 2 1 3 1 12-037-32 FEMALE BOLT Cc-3-2 4 12 08-169-32 LEFT DOOR LATCH Dd-L-3 4 2 2 11-544-32 CONNECTING PIECE E-3 4 10 12 19-035-32 LEFT ROOF BAR F 4 1 2 08-158-32 BOLT Bb-3 10-499-32 SLIDING DOOR FRAME D-3 19-030-32 ROOF PANEL A1 2 1 08-161-32 BOLT Cc-3 PACKED IN BOX 2 19-032-32 ROOF PANEL B1 19-034-32
19-036-32 RIGHT ROOF BAR F1 19-037-32 REGULAR ROOF BAR G 08-187 WASHER Gg-3 12-161 NUT Hh-3 08-193-32 PLASTIC PLUG Ii-3 10-502-32 CORNER CONNECTOR K-3 4 4 4 4 4 4 QTY PACKED IN BOX QTY DESCRIPTION DESCRIPTION PACKED IN BOX 1 11-545-32 TOP DOOR RAIL F-3 4 2 3 11-546-32 BOTTOM DOOR RAIL G-3 4 2 22 08-138-32 PLASTIC STOPPER H-3 4 4 4 10-500-32 LEFT SIDE RECEIVER I-3 4 1 12 10-501-32 RIGHT SIDE RECEIVER J-3 4 1 2 19-083-32 LEFT CROSSBEAM L-1 4 1 4 5 DRAWING 19-084-32 R
19-048-32 LEFT GABLE JOINT P-3 19-049-32 RIGHT GABLE JOINT Q-3 19-045 LEFT FRONT GABLE PANEL Ss-3 15-326-32 MOUNTING BRACKET U-3 DESCRIPTION PACKED IN BOX 1 13-045-32 SELFTAPPING SCREW PQ-3 4 4 1 19-044 LEFT BACK GABLE PANEL Rr-3 1 1 1 19-046 RIGHT BACK GABLE PANEL Tt-3 1 1 4 3 19-047 RIGHT FRONT GABLE PANEL Uu-3 1 1 4 1 12-047-32 BOLT Ww 4 12 10-529-32 SCREW FOR FIXING TO WALL Xx-3 4 4 4 1 DRAWING (ASSEMBLED ON ROOF BAR G) 19-050-32 LEFT WALL GUIDE Vv-3 QTY PACKED IN BO
REMOVE STICKER BEFORE ASSEMBLY D-3 FRAME ZZZ-187.W1608MR.0529-20.GP.EN.
ZZZ-187.W1608MR.0529-20.GP.EN.
MAINTENANCE NOTES 1. In case of a defective or damaged part, or for any other questions concerning the product, please contact the manufacturer directly. 2. Please have the parts list and part numbers on hand when ordering or requesting replacement parts. 3. The product should not be installed adjacent to trees or a sloped roof. Snow and ice may slide onto the roof and cause it to collapse. 4. While the product is designed to stay assembled year long, the roof must be kept free of accumulation of snow.
