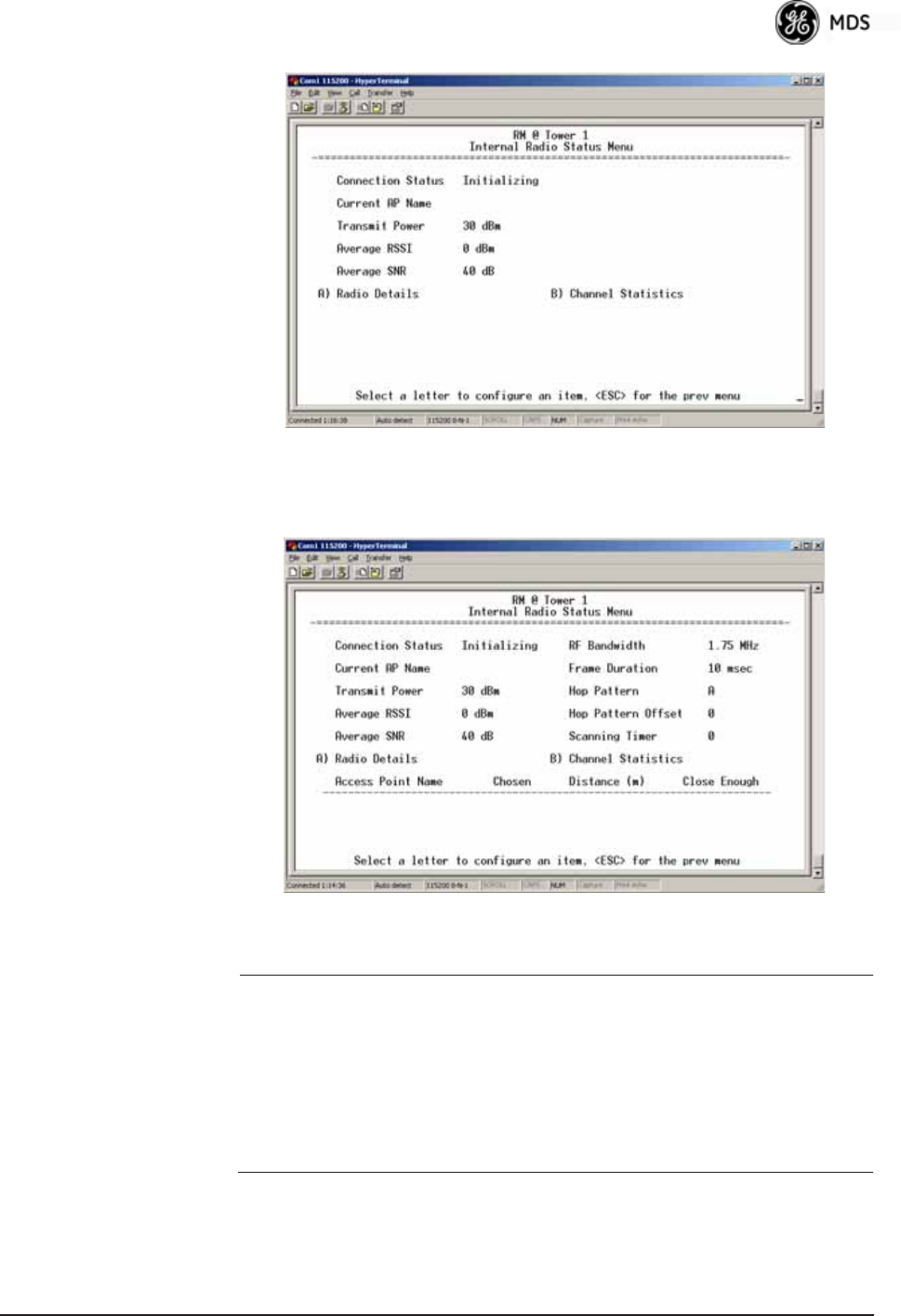

Figure 3-96. Internal Status Menu
(Remote in Static Hopping mode)
Invisible place holder
Figure 3-97. Internal Radio Status Menu
(Remote in Hopping with Handoffs Mode)
NOTE: In the menu above, the items in the right hand column are
displayed on Remotes only, when they are in Hopping with
Handoffs mode. This allows viewing of the settings the
Remote is using to connect to each AP in the AP Locations
File. See Frequency Control Menu on Page 67 for explanations
of these items. Exception: The Scanning Timer parameter is
unique to the screen shown in Figure 3-97, and is explained
below.
• Connection Status—Indicates whether or not the Remote station
has associated with an AP.
[
Associated, Scanning, Ranging, Connecting, Authorizing]
• Current AP Name—Shows the Device Name of the current AP.
