• Inter-Frame Packet Delay—A measurement representing the
end of a message, measured in tenths of a second.
[
default = 1 (that is, 1/10th of a second)]
• Commit Changes and Exit Wizard—Save and execute changes
made on this screen (shown only after changes have been
entered).
Invisible place holder

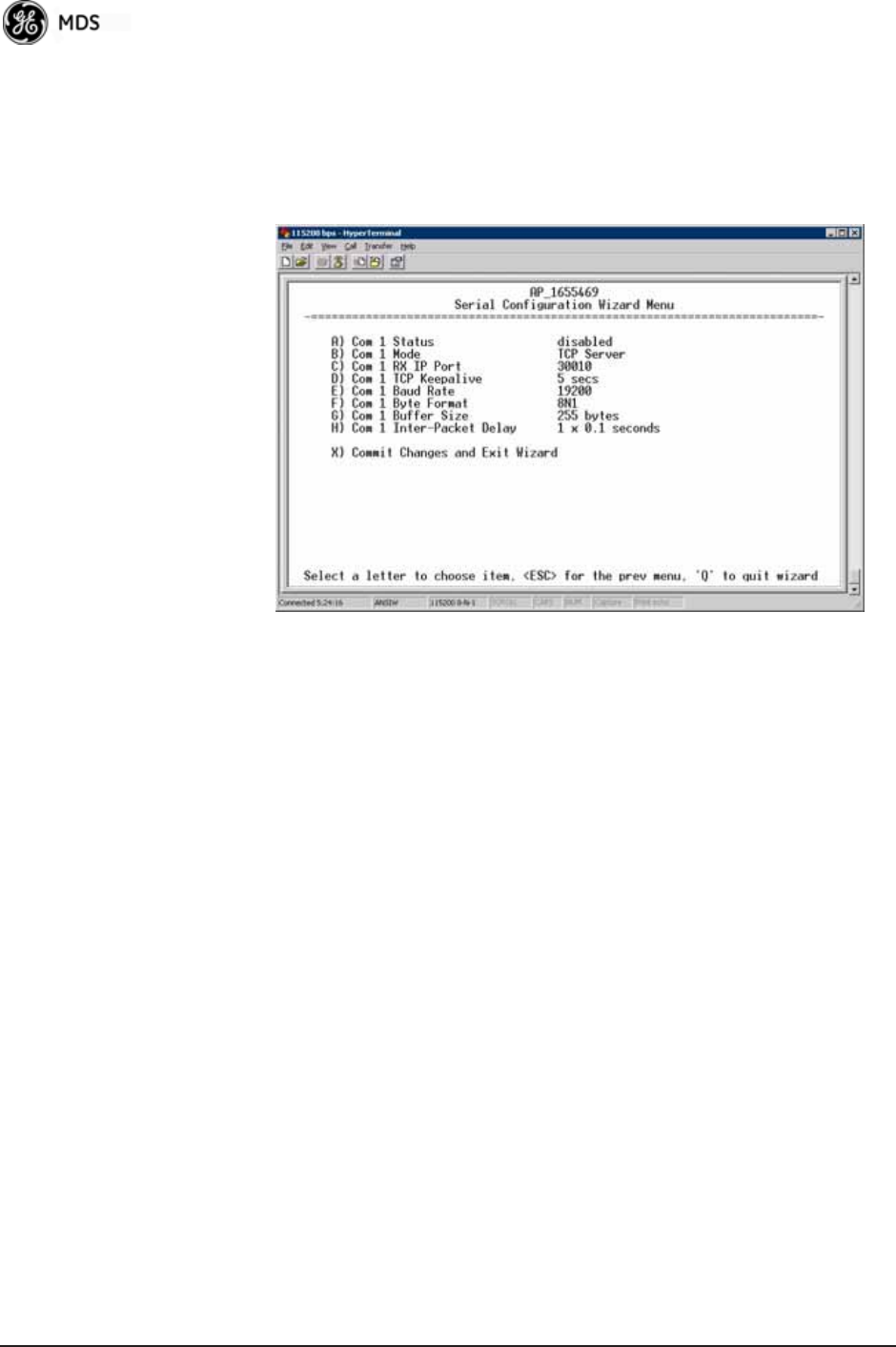

Figure 3-46. TCP Server Menu (AP)
• Status—Enable/Disable the serial data port.
• Mode—TCP Server. This is the type of IP port offered by the
transceiver’s serial device server.
[
TCP, UDP; TCP]
• RX IP Port—Receive IP data from this source and pass it
through to the connected serial device. The application con-
necting to the local TCP or UDP socket must use this port
number.
[
Any valid IP port; 30010]
• Baud Rate—Data rate (payload) for the COM port, in
bits-per-second. [1,200—115,200; 19200]
• Byte Format—Interface signaling parameters. Data bits, parity
and stop bits.
[
7N1, 7E1, 7O1, 8N1, 8E1, 8O1, 8N1, 7N2, 7E2, 7O2, 8N2, 8E2, 8O2;
8N1]
• Buffer Size—Maximum amount of characters that the Remote
end buffers locally before transmitting data through the serial
port. [
1—255; 255]
• Inter-Packet Delay—Amount of time that signal the end of a
message, measured in tenths of a second. [default = 1 (that is,
1/10th of a second)]
• Commit Changes and Exit Wizard—Save and execute changes
made on this screen (shown only after changes have been
entered).
