1 INTRODUCTION

The MDS Master Station is an advanced, flexible platform designed for the demanding requirements of

today’s industrial wireless networks. It represents the latest development in a line of MDS products that

set the standards for wireless performance today. The Master Station builds on this legacy with several

innovative features, including a single compact chassis (2 RU), 100% duty cycle operation (no cooling

fans required), front panel access to all modules, and drop-in compatibility with earlier MDS x790/x710

radio systems.

As the central station in a wireless network, the Master Station provides uncompromised performance and

reliability in mission-critical applications. It offers redundant protection of key modules, automatic

switchover in the event of a fault, and an external battery backup option for continued operation through

temporary power losses. The Master Station mounts conveniently in a 19-inch rack cabinet, or may be

used in shelf/tabletop configurations.

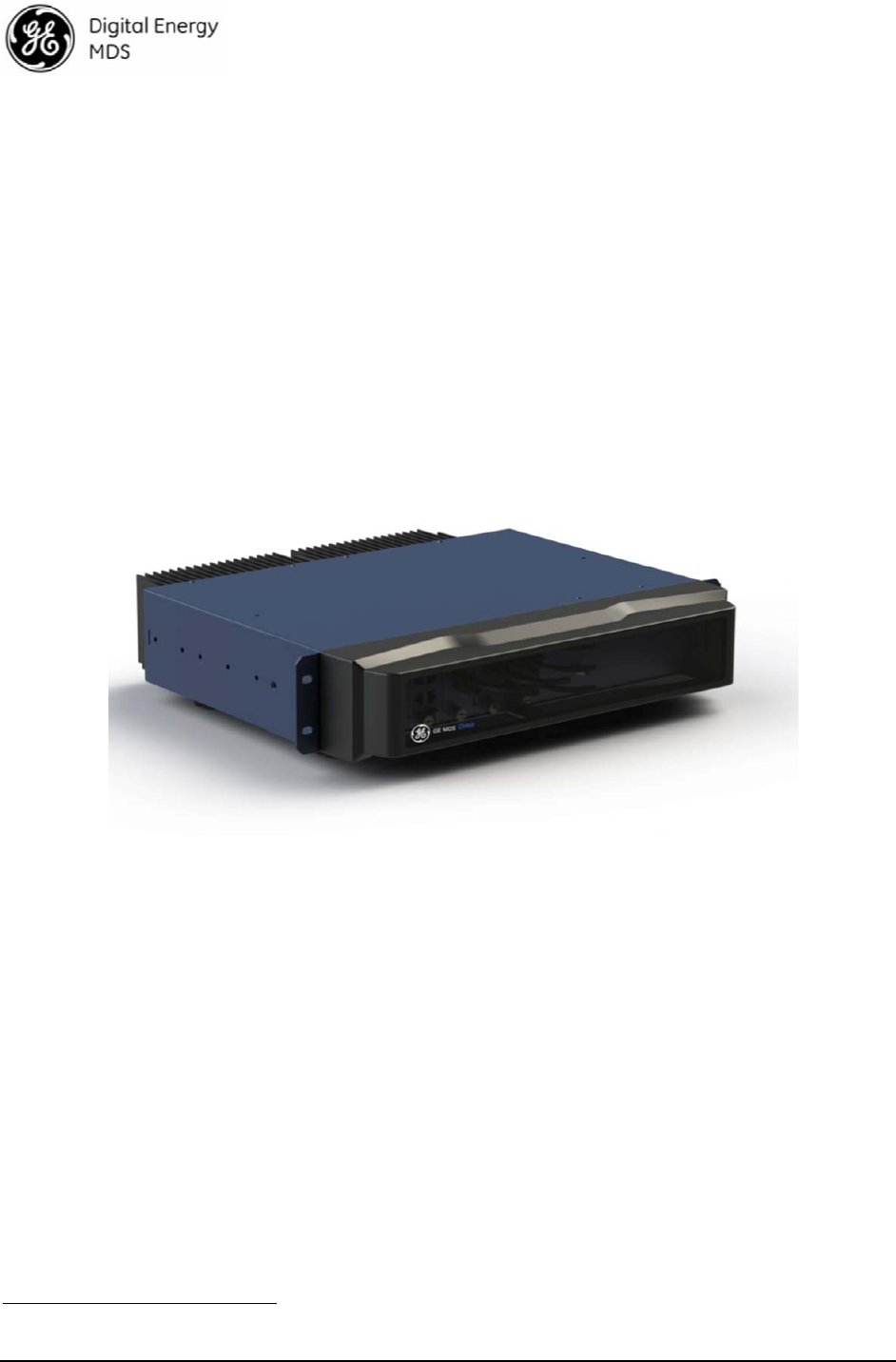

Figure 1-1. MDS Master Station

The Master Station can be configured for a variety of service applications, including Point-to-Multipoint

SCADA, Point-to-Point links, broadband

, and Cellular connectivity

, depending on the modules installed

and active in the chassis.

In FCC part 90 SCADA service, the radio can function as a Master, Repeater, or Remote and is capable of

full duplex operation. Internal duplexer options are available, configured for use with or without an ex-

ternal notch filter. Provisions for connection to an external duplexer are also provided. The Master Station

is fully compatible with MDS PulseNET management software, which provides local or remote diagnosis

and health reporting.

1.1 Organization of Manual

This manual is intended for use by systems engineers, network administrators, and others responsible for

the planning, installation, commissioning, use, and troubleshooting of the wireless system. The manual

begins with an overall description of product features, and is followed by the steps required to install the

unit and place it into normal operation.
