6 - 6 PANELWARE MMI Application Manual for GE Fanuc Genius Protocol - June 1995 GFK-1115
6
Downloading and Starting the Project
Download the project to the Panel by following these steps:
■ Panel:
❏ Supply the Panel with power by connecting the 24 VDC power.
❏ Select Teach Mode (operating mode switch in position 7).
❏ Press the RESET button on the Panel.
❏ Wait until Teach Mode is seen on the Panel display.
❏ Make the connection between the PC and the Panel
■ PCS:
❏ Press the Ctrl + X keys simultaneously, or select the Download function from the
Utilities pulldown menu.
❏ The question Download Project? (Y/N) is displayed
❏ Start the download by pressing
Y
.
❏ Wait until the message Download Complete! appears
■ Panel:
❏ Make the connection between the Panel and the PLC
❏ Switch to Run-Mode (operating mode switch to position 5)
❏ Press the RESET button on the Panel

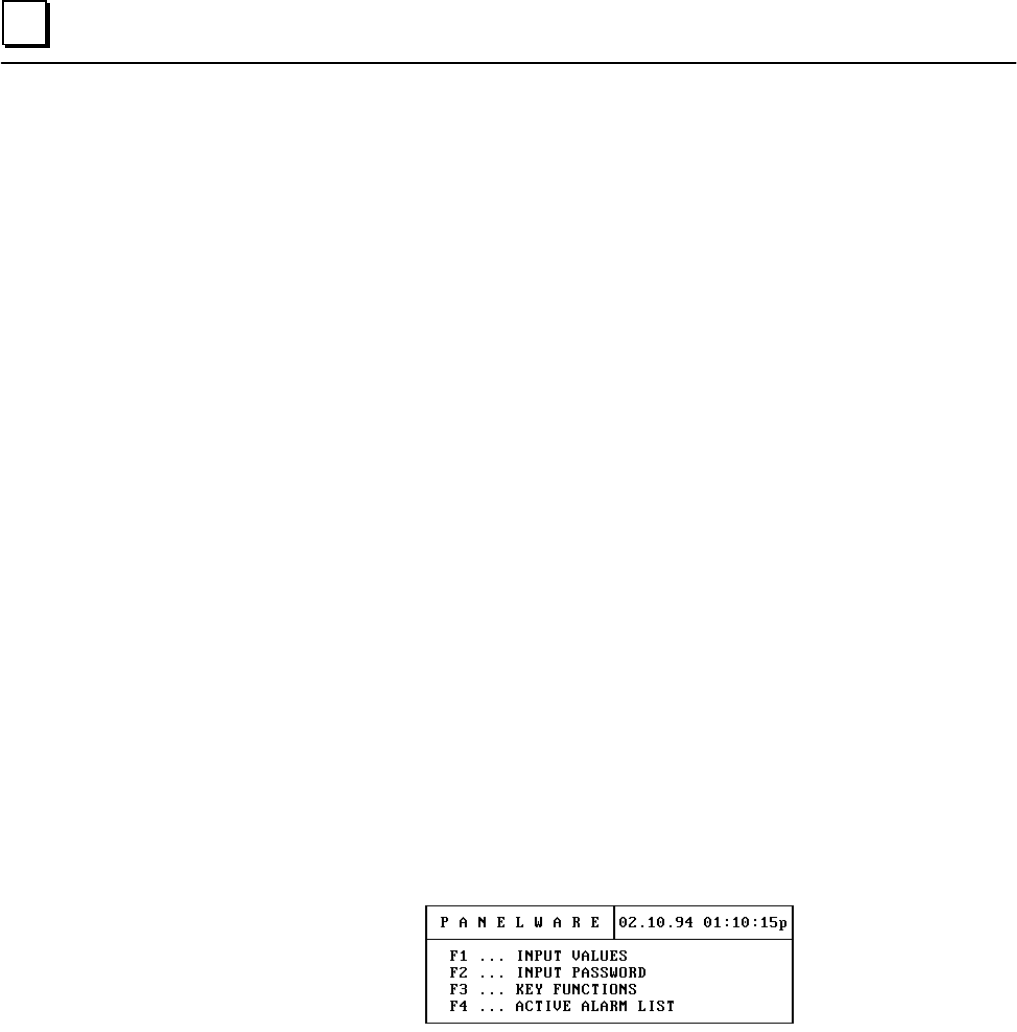

❏ The following picture will appear on the Panel display:
