GFK-1115 Chapter 3 Quick Start 3 - 19
3
Genius Internal Connection

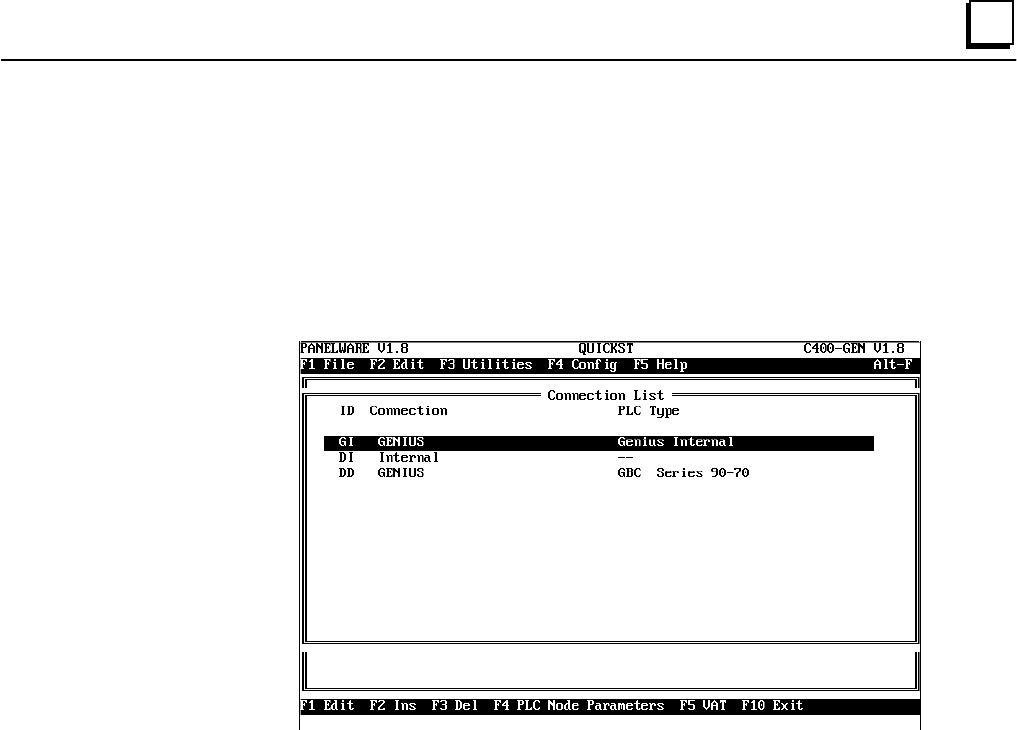

As a final connection, insert a Genius internal connection into the connection list. this is done by
first pressing the F2 Ins key and then specifying the ID GI in the window that appears. Choose
Genius as the Connection and Genius Internal as the PLC Type. This definition is now
confirmed and the new connection displayed in the connection list upon pressing the F4 Accept
key.
