3 - 42 PANELWARE MMI Application Manual for GE Fanuc Genius Protocol - June 1995 GFK-1115
3

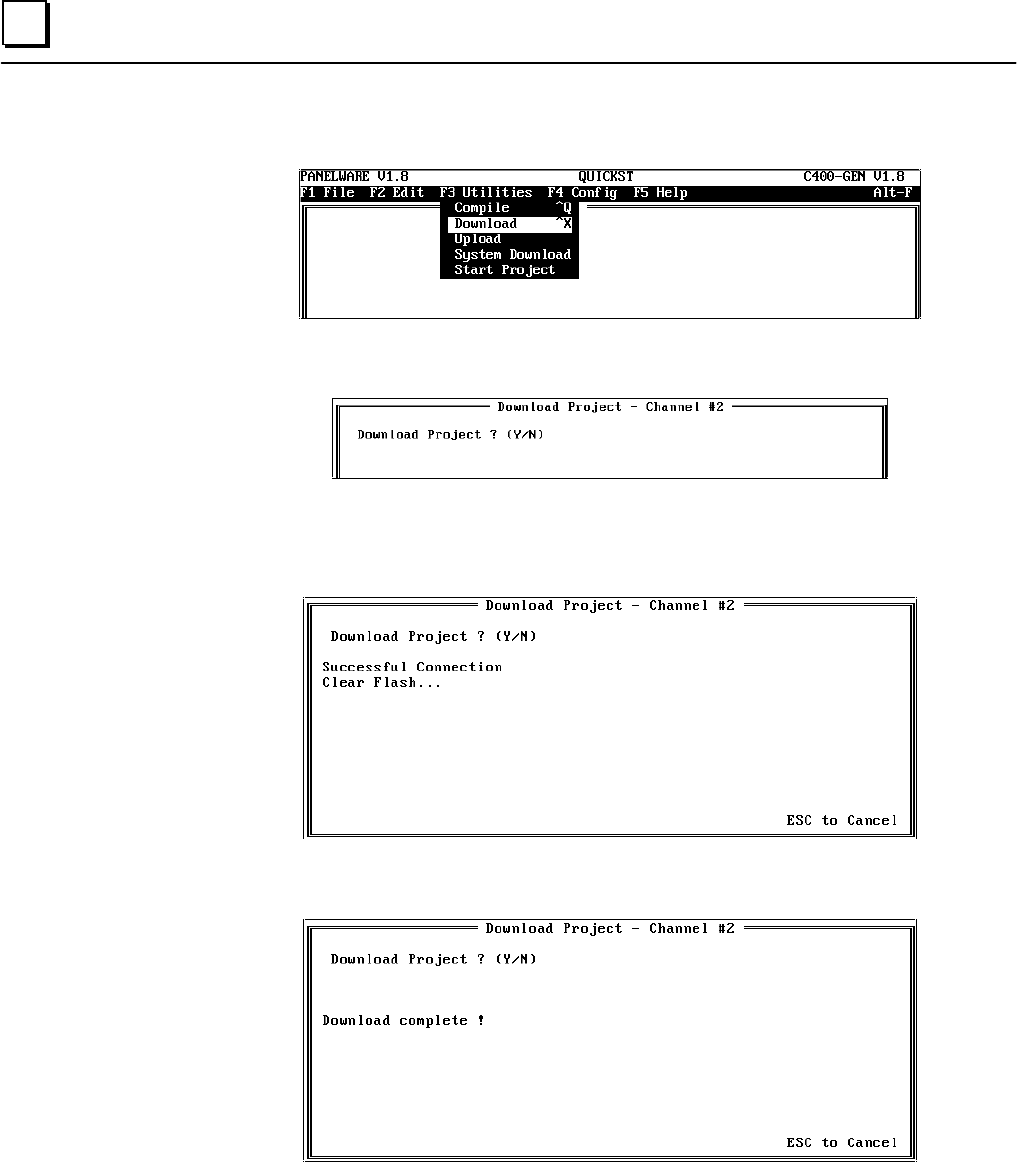

Once these steps have been performed, the download process can be started by selecting the
Download option from the F3 Utilities pull-down menu or by pressing Ctrl + X:
The Download Project title and the number of the channel (Channel #2) are centered in the top
margin of the window that appears on the screen to prompt you to begin the process.
Start the download process by typing
Y
.
In order to begin the download, the PCS tries to make a connection with the Panel. If the
connection is successful, the following messages are displayed on the screen:
When the compiled project has been loaded to the Panel successfully, the message Download
complete! is displayed.
Press Esc to close the Download Project window and return to the Main menu.
