Dimensions anD installation information

Listed by

Underwriters

Laboratories

PP9830Dj/tj

GE Profile

™

Series 30" Downdraft Electric Cooktop

For answers to your Monogram

or GE

appliance

questions, visit our website at geappliances.com

or call GE Answer Center

service, 800.626.2000.

Specification Revised 4/15

⁄8ʺ

(21

⁄16ʺ SS)

⁄2ʺ

22ʺ

⁄4ʺ

⁄16ʺ

⁄4ʺ

SS)

⁄4ʺ

(29

⁄16ʺ SS)

Wall InstallatIon: Wall

installations require 25" countertop

depth. When cabinet is flush against the

wall, the fan housing can be rotated to

the horizontal position for direct venting through rear wall.

Make a countertop cutout in the range cabinet according

to unit dimensions and installation type. Duct hole is

positioned in back of cabinet for through-the-wall ducting.

PenInsula or Island InstallatIon: For

peninsula/islands a minimum 26" countertop depth is

suggested. Blower should be in vertical position. Island or

peninsula cabinets may require adjustment in cutout depth

and/or location within the width dimensions. Duct hole is

positioned in bottom of cabinet for island

or peninsula installation.

slab InstallatIon: For peninsula or island

installation and rear wall ducting, 6" PVC duct or locally

approved piping should be used if installing under a

poured concrete slab.

recePtacle locatIon: Install an approved junction

box within shaded area shown in diagram. Junction box

must be at least 10-1/2" below top of cabinet.

InstallatIon InformatIon: Before installing,

consult installation instructions, packed with product,

for current dimensional data.

note: Electrical cable is not supplied with unit.

Order part number JXCK89 from your Ge Appliances

Dealer

These cooktops are approved for indoor use only.

1-7/8"

MIN. Required*

20-5/8

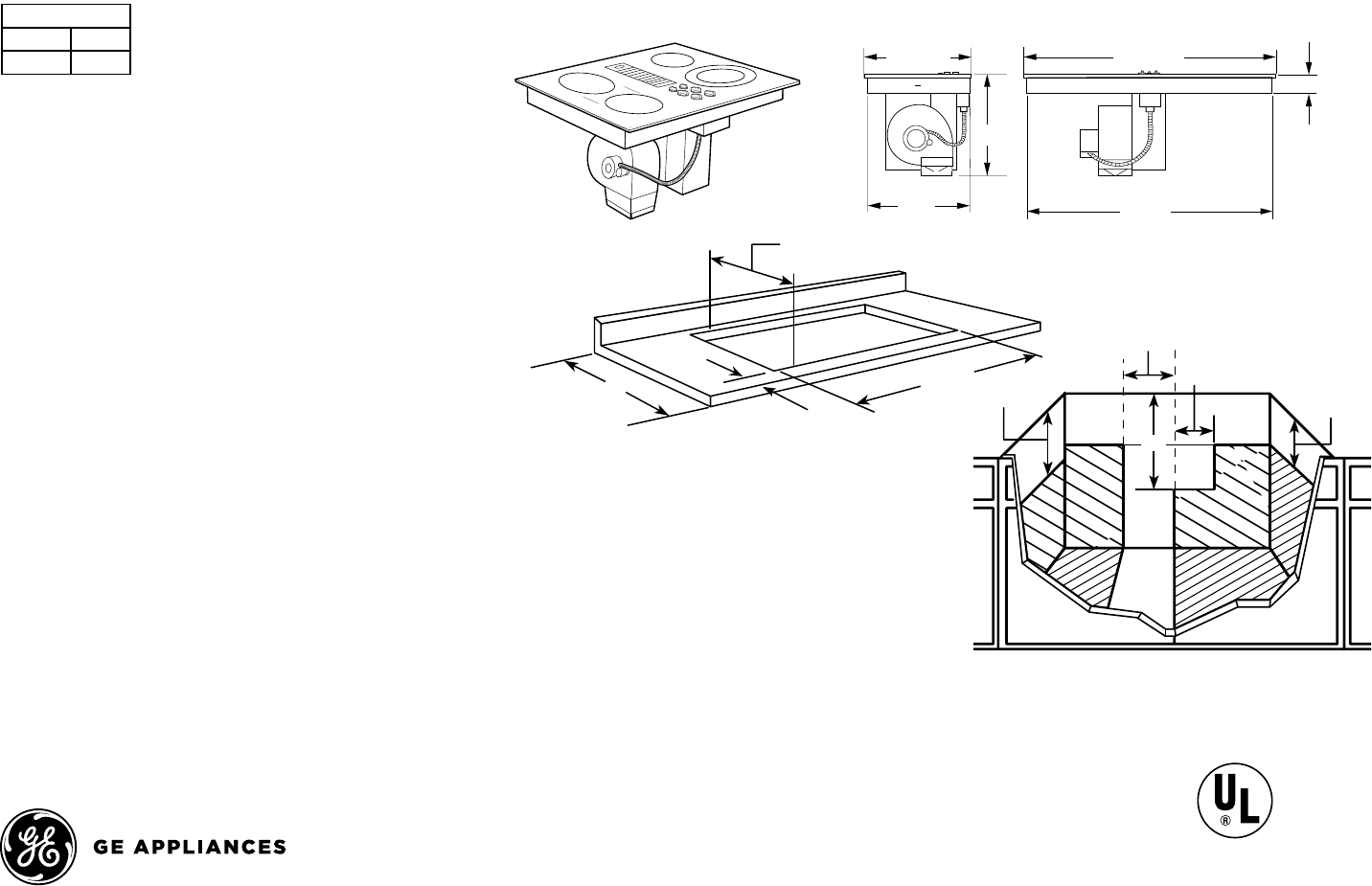

Cut-out Dimensions (in inches)

28-7/8

*UL Requirement.

Note: A 6" minimum spacing to adjacent side wall is required

10-1/2

Cabinet Dimensions (in inches)

*Note: A 6" minimum spacing to adjacent side wall is required

Dimension and installation information are shown in inches.

KW RATING

240V 9.1

208V 6.9

Summary of content (3 pages)

PAGE 1
PP9830dj/TJ GE Profile™ Series 30" Downdraft Electric Cooktop Dimensions and Installation Information Wall Installation: Wall installations require 25" countertop depth. When cabinet is flush against the 208V 6.9 wall, the fan housing can be rotated to the horizontal position for direct venting through rear wall. Make a countertop cutout in the range cabinet according to unit dimensions and installation type. Duct hole is positioned in back of cabinet for through-the-wall ducting.
PAGE 2
PP9830dj/TJ GE Profile™ Series 30" Downdraft Electric Cooktop Venting Options Dimensions and Installation Information Installing the Ductwork: Use galvanized or aluminum duct in 6" round or 3-1/4" x 10" size, or combination of both. PVC duct or locally approved piping should be used if installing under a poured concrete slab. Local building code must be followed in specifying type and schedule of all duct used. Note: Ductwork must be vented to outside.
PAGE 3
PP9830dj/TJ GE Profile™ Series 30" Downdraft Electric Cooktop Features and Benefits Downdraft Exhaust - Powerful exhaust system effectively pulls smoke and steam out of the kitchen Ceramic Glass Cooktop - A smooth cooktop surface makes cleaning quick and easy Ribbon Heating Elements - Provide powerful heat beneath a smooth glass surface to ensure even heat and fast warm-up times Bridge Element - Combines three cooktop elements into one large cooking area, ideal for oversized cooking pans 9"/6" Power Boil
