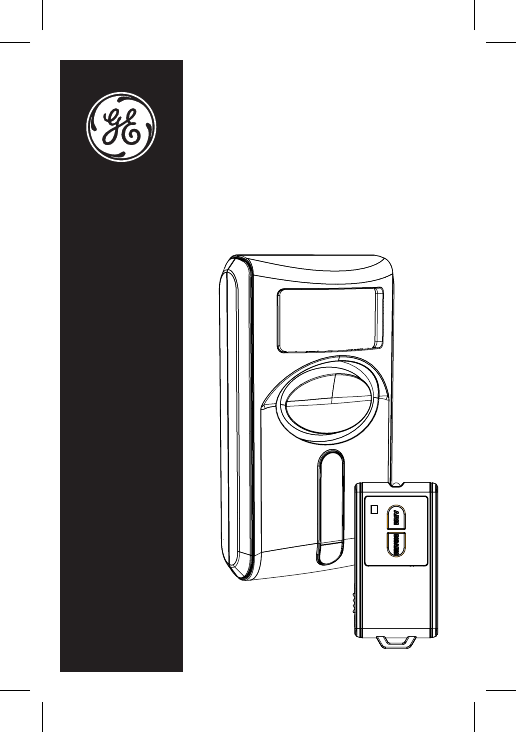

Personal Security Motion Sensor with Remote User Manual Do not use in wet locations
Motion Sensing Alarm With Remote Control Wall Mount Indicator Light Keychain Remote Motion Sensing Alarm Alarm/Chime Switch Low Battery Indicator The Motion Sensing Alarm has a low battery indicator light. If the batteries need to be replaced, the indicator light will flash slowly. Average battery life for typical usage is up to one year.
INSTALLING BATTERIES The Remote Controlled Motion Sensing Alarm requires 3 AA Alkaline batteries (not included). Installing Batteries in the Alarm The battery compartment is located on the back of the unit. 1. Remove the battery compartment screw and slide off cover in the direction of the open arrow. 2. Insert (3) AA batteries (not included) . Take care to note the polarity diagram inside the battery compartment. 3. Replace the cover and secure screw.
located on the back of the remote control. 2. Insert a 2032 battery noting polarity inside the battery compartment. 3. Replace cover.
LINKING THE REMOTE TO THE ALARM Make sure you have installed the batteries before proceeding. 1. Remove the battery compartment screw and slide off cover in the direction of the open arrow. Locate LEARN button. Battery Compartment Learn Learn Button 2. Press the LEARN button.
3. Immediately point the remote control towards the front of the alarm unit and press the ARM button. The alarm will sound a single short tone, and the light will stop flashing to confirm the remote has been linked to the alarm. The alarm unit will now respond to the remote. . Replace cover to the battery compartment of the main unit and secure screw. The alarm is now in standby mode. NOTE: Additional remotes can be added to the system by following the same programming procedure.
1. Choose your desired location, such as the corner of the room. This will provide maximum coverage. NOTE: The sensor has a 15-20 ft. detection zone, with approximate angles of 110˚ horizontal x 70˚ vertical. Recommended installation height is 6 to 8 feet. 20' 15' 110˚ 10' 5' Feet 6'-8' 70˚ Feet 5' 10' 15' 20' 2.
wall using either the provided wall anchors or by screwing directly into a wall stud. Once installed securely on the wall, slide insert bracket of mount into the back of the unit and lock in place. The mount will click when secured to the alarm. OPERATING IN THE ALARM MODE 1. Locate the ALARM/CHIME switch on the side of the remote. Chime 2. Slide switch to ALARM mode.
10 Arming the Alarm 1. Point the remote control at the front of the alarm and press the ARM button. The alarm will sound a tone and the red indicator light will flash. There will be a 45 second exit delay before the unit is armed. The delay allows time for you to leave the protected area without triggering the alarm. 2. When motion is detected, the alarm unit will sound a short tone and a red light will flash. The alarm will activate in 30 seconds.
11 Disarming the Alarm When returning to the protected area, the unit will beep once if motion is sensed. 1. Point the remote control at the front of the alarm unit and press the DISARM button within 30 seconds to disarm the alarm. 2. If the remote control with the correct security code is not used within 30 seconds, the alarm will sound. During this entrance delay, the red indicator light will flash. Use the remote control at any time to deactivate the alarm.
12 OPERATING IN THE CHIME MODE The chime is used to notify you when motion is sensed in the area. 1. Locate ALARM/CHIME switch on the side of the remote. Chime Alarm 2. Slide switch to CHIME mode. ACTIVATING THE CHIME Activate the chime by pointing the remote control at the alarm and pressing the ‘ARM’ button. The chime will now go off once and again when motion is sensed. DEACTIVATING THE CHIME Deactivate the chime by pointing the remote control at the alarm and pressing the ‘DISARM’ button.
13 the remote at the front of the alarm and press and hold the ARM and DISARM buttons on the remote control for 2 seconds. To turn off the panic alarm, aim the remote at the front of the alarm and press the DISARM button. TESTING MOTION SENSOR OPERATION 1. Set remote to CHIME mode and press ARM button; the chime will sound once. 2. After initial chime, wait 15 seconds and wave hand in front of the sensor. If chime sounds immediately, the sensor is working properly. 3.
14 cloth slightly dampened with water and wipe dry. Do not use chemical agents as this may damage and discolor the unit. WARNING Limitations of Alarm Products This product should be tested periodically to make sure it is working properly. The product, if used properly, may reduce the risk of burglary, robbery, or other adverse events.
15 WARNING Risk of personal injury • Prolonged exposure to alarm siren may cause permanent hearing loss Battery Warning • Remove batteries before storing the Alarm for extended periods • Batteries may leak harmful liquids or ignitable materials or explode causing injury and product damage • Do not mix old and new or other battery types • Replace all batteries at the same time • Replace fully discharged batteries immediately For indoor use only; do not use in wet locations.
16 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
