GE Lighting Albeo LED Luminaire ™ Linear Surface Mount Lighting (ALM1-Series) imagination at work

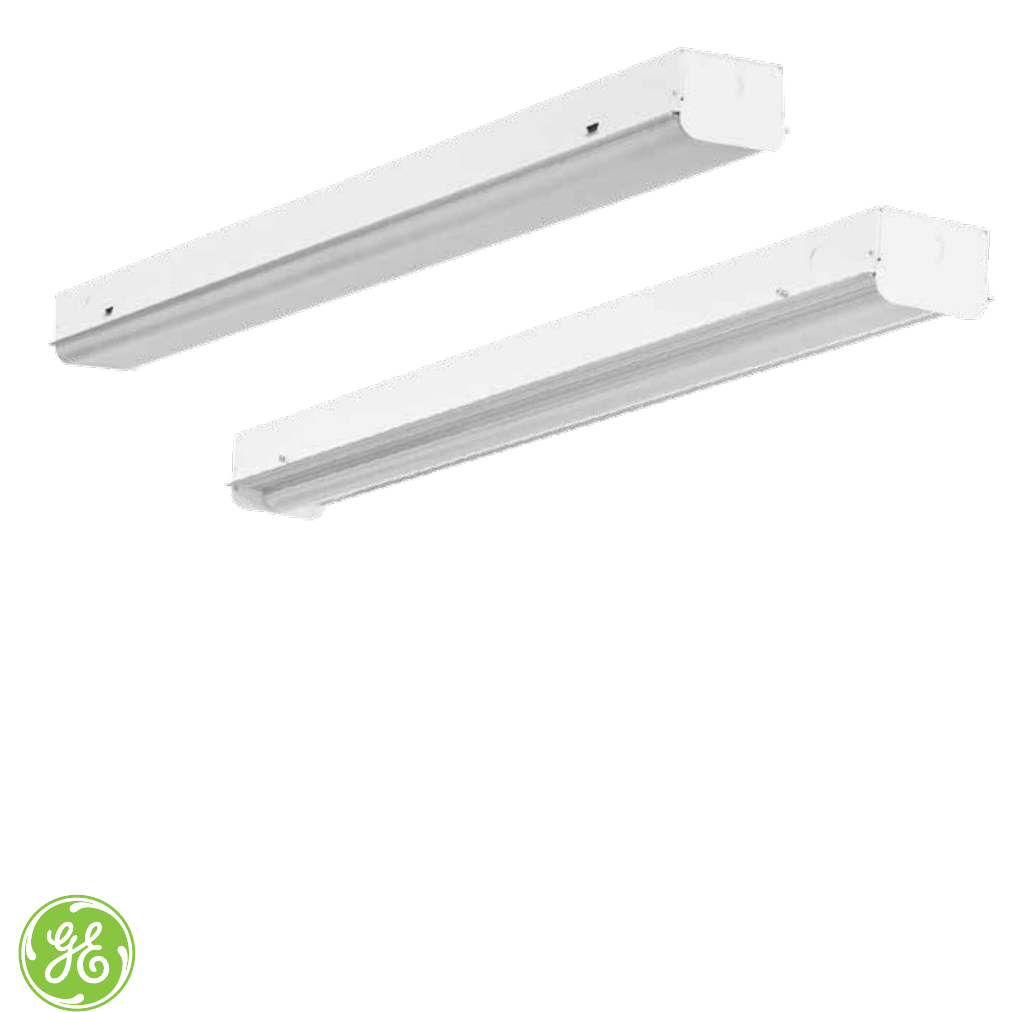

Product Features Albeo ™ ALM1-Series luminaire provides an energy efficient, low maintenance alternative to traditional fluorescent fixtures with bare lamps or wrap lenses. Light output is equivalent to a four lamp fluorescent fixture at 33% less power. Applications Mounting • Designed to meet recommended luminance and illuminance requirements for low bay and task level applications.
Ordering Number Logic Linear Surface Mount Lighting (ALM1-Series) A _ L_ M _1 _ - 0 _ - _ - _ - __ - _ - _ PRODUCT ID A = Albeo VOLTAGE 0 = 120/277 L = Linear MODULE DRIVE CURRENT LED COLOR TEMP 1 = 1 module T = Standard 70 Plus CRI 2 = 2 modules H = High Output 47 = 4000K 57 = 5000K LENS TYPES OPTICS BEAM W = Wrap Wrap Lens 1 = 120° D = 120° Diffused lens C = Channel 80 Plus CRI 48 = 4000K 58 = 5000K M = Surface Mount 1 1 1 2 T H T 2 2 T 4 MODULE DR
Photometrics Optics for Common Applications Channel Lens Aisle Distribution 20° Full Beam Angle Narrow Distribution 40° Full Beam Angle 90° S Spacin ng g Crite Criter erria: a: 0° = 1.36 . 90° = .45 VA: 0° 10° 20° 30° 90° S Spacing ng Criteria Criteria: er 0° = 1 1.30 . 90° = .76 90 9 6 80° 70° 70° 60° 60° 50° 50° VA: 0° 10° 20° 30° 40° 40° Standard Distribution 120° Full Beam Angle and 120° Diffuse Wide Distribution “Bat Wing” Spacing n Criteria: r 0 =1 0° 1.86 90°° = .1.26 9 .1.
Mounting & Accessories Linear Surface Mount Lighting (ALM1-Series) MOUNTING OPTIONS IMAGE ORDER LOGIC CODE Standard Surface Mount Available with all fixture configurations ST = Standard Fasten to ceiling with appropriate hardware Installation See Installation Guide for details N/A Ceiling and Wall Mounting See Installation Guide for mounting details.
Product Dimensions Linear Surface Mount Lighting (ALM1-Series) 2ft. & 4ft. Channel and Wrap Lens Top View 24" or 48” 5.2” Side View 3.3” End View 3.3” 5.2” Max. Weight: 15 lbs. GE Lighting • 1-888-MY-GE-LED (1 - 888 - 69 - 43 - 533) • www.gelighting.com Albeo and the GE brand and logo are trademarks of the General Electric Company. © 2014 GE. Information provided is subject to change without notice. All values are design or typical values when measured under laboratory conditions.
