Chapter 3 Paramters/Functions Innovation Series Medium Voltage GP Type - G Drives GEH-6385
Function description
The capture buffer can be accessed from the Trend Recorder in the Control System
Toolbox. To enable the Trend Recorder:
• From the View menu, select Trend Recorder OR select the Trend Recorder
button on the toolbar: .

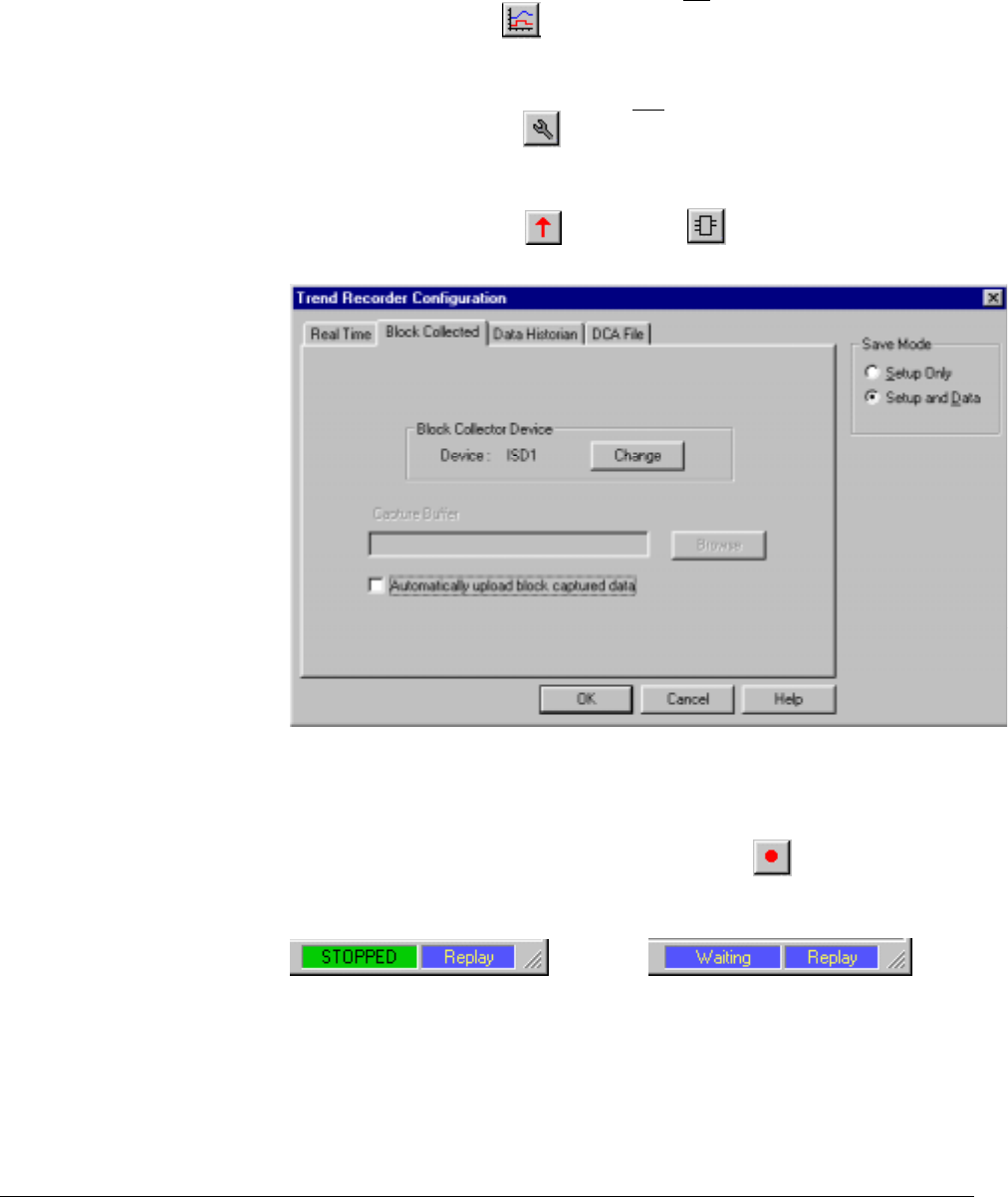

To enable the Innovation Series capture buffer from the Trend Recorder:
1. From the Edit menu, select Configure OR select the Configure button from the
Trend Recorder toolbar:
2. Select the Block Collected tab on the Trend Recorder Configuration dialog box
and click OK.
This enables the Upload
and Edit Block buttons on the Trend
Recorder toolbar.
3. Select the Edit Block button from the toolbar, which brings up a block diagram
that allows you to configure the capture buffer parameters described in the
Function Input and Function Configuration sections. All of the parameter
values must be sent to the drive for the capture buffer to work correctly.
4. Go back to the Trend Recorder and select the Record
button to enable the
capture buffer. The toolbox status bar should change from a “Stopped”
indicationto a waiting indication, as follows:
This indicates that the capture buffer is collecting data and waiting for the trigger.
To upload the capture buffer data into the Trend Recorder, select the Upload button
from the Trend Recorder toolbar.
