Chapter 3 Paramters/Functions Innovation Series Medium Voltage GP Type - G Drives GEH-6385
General Setup Functions
Keypad Overview

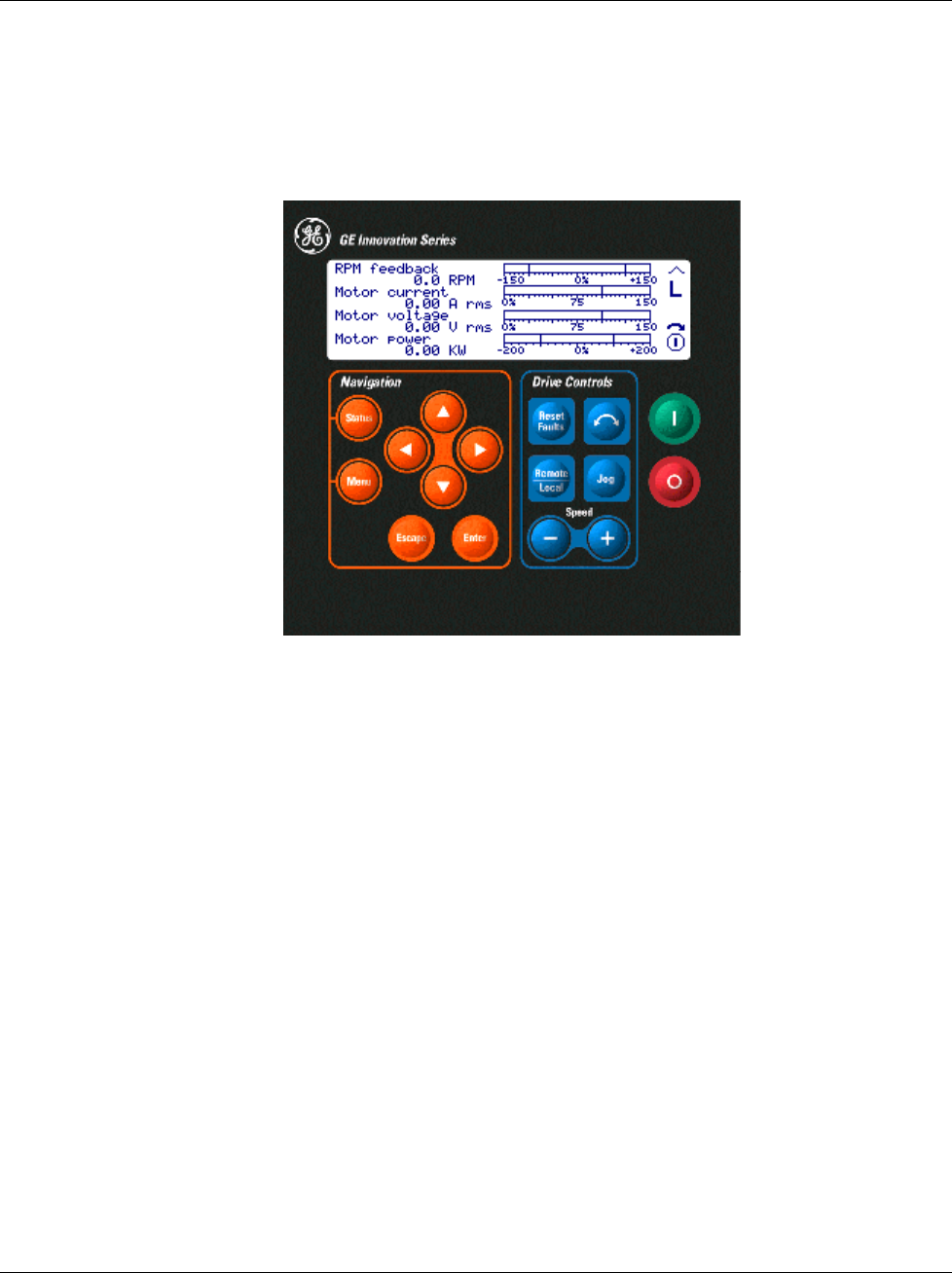

The Drive Diagnostic Interface (DDI; also known as the keypad) is mounted on the
door of an Innovation Series drive. The DDI provides a simple, easily accessible
means for a user to set, monitor, and maintain the drive locally.
The DDI provides both analog and digital representations of drive functions and
values. Its keypad is logically organized into two functional groups: navigation keys
and drive control keys. The Run and Stop keys are set to the side for easy access.
The operator can use the DDI to perform the following common tasks:
• Monitor speed / current / voltage / power
• Start/Stop the drive
• Adjust a configuration parameter
• Reset a fault condition
• Commission the drive through a wizard
Each drive has its own DDI for local control.
Related functions
Following are the DDI functions that can be modified from the toolbox:
• Keypad Contrast Adjustment
• Keypad Meter Configuration
• Keypad Security Configuration
• Language Display
