Installation Guide

31-7000091 Rev. 2 13

Installation Instructions

AFTER: Fan Blade

Openings Facing

Forward

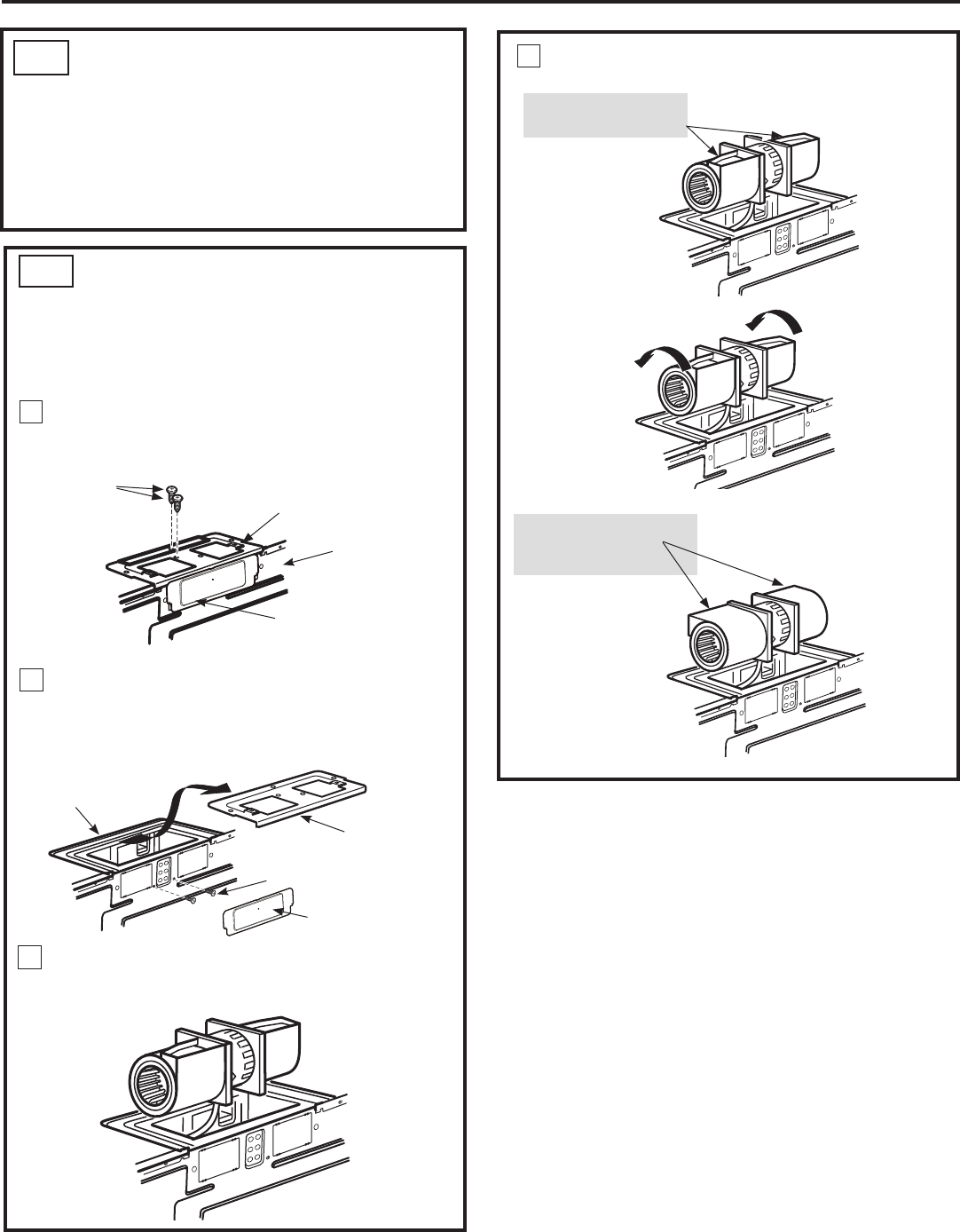

ADAPTING BLOWER

FOR RECIRCULATION

A4.

NOTE: The exhaust adaptor with damper is not

needed for recirculating models. You may want to

save them for possible future use.

Carefully pull out the blower unit. The wires

will extend far enough to allow you to adjust the

blower unit.

Roll the blower unit 90° so that fan blade openings

are facing toward the front of the oven.

Roll

Slide the blower plate from under its retaining

flange and lift it off. Remove the cover plate

installed on the back. Remove and save screws

that hold blower unit to the oven.

Remove and save screws that hold blower plate

to the oven.

BEFORE: Fan Blade

Openings Facing Up

Blower

Plate

Retaining

Flange

Blower Plate

Back of

Oven

Cover Plate

Blower Plate Screws

CHECK BLOWER MOTOR

ORIENTATION

The blower fan blade opening should be facing the

front of the microwave. You will have to remove the

top cover plate to check the fan blade orientation.

If the fan opening is already facing the front of the

microwave, skip to step A5. Otherwise, continue to

Step A4 to adjust the fan motor orientation.

A3.

Blower Motor

Screws

Cover Plate
