Installation Guide

31-7000091 Rev. 2 21

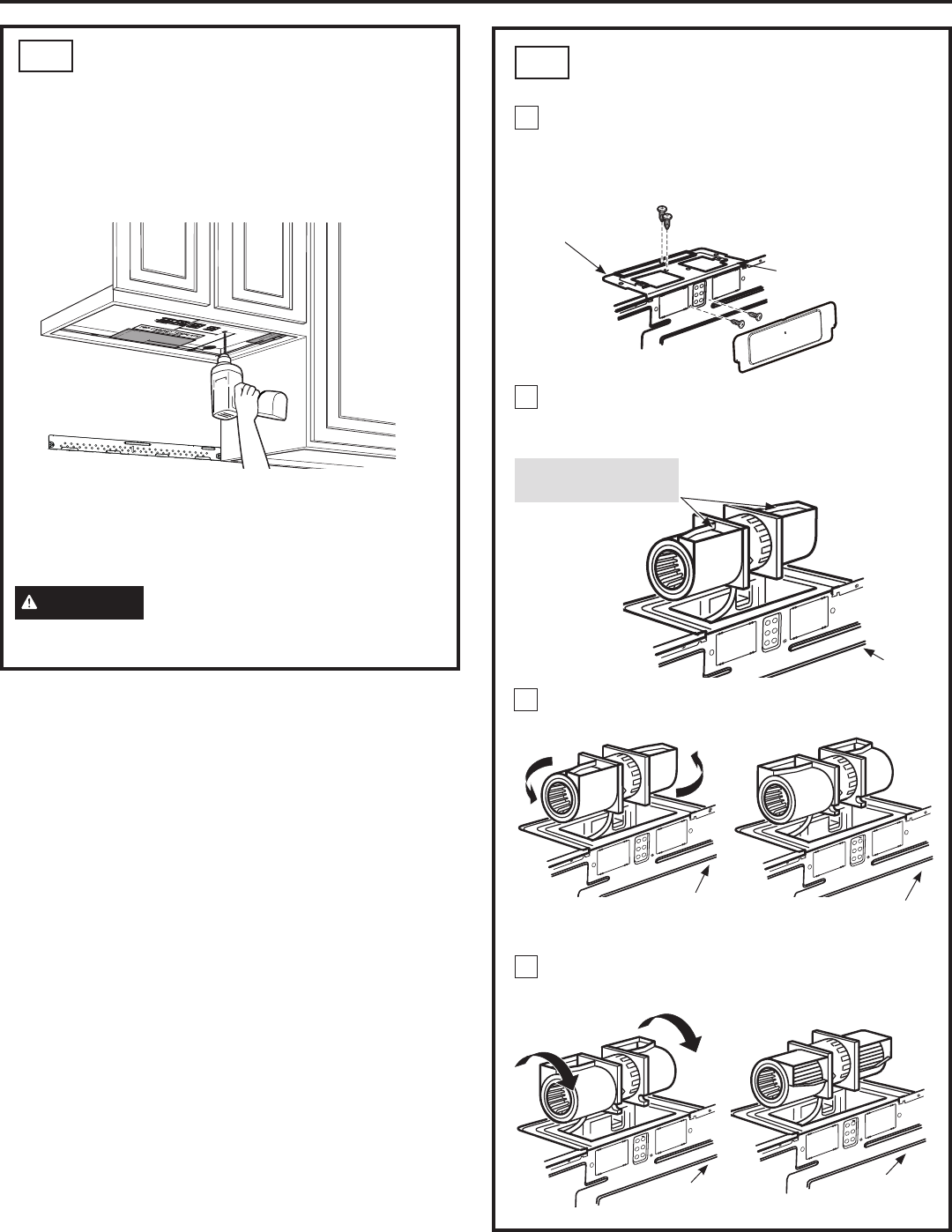

Installation Instructions
USE TOP CABINET TEMPLATE
FOR
PREPARATION OF TOP
CABINET
C3.
•
Read the instructions on the TOP CABINET
TEMPLATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
CAUTION
Wear safety goggles when
drilling holes in the cabinet bottom.
A
C
D
B
You need to drill holes for the top support screws and
a hole large enough for the power cord to fit through.
Roll the blower unit 90° so that fan blade
openings are facing out the back of the
oven.
4
BEFORE: Fan Blade
Openings Facing Up
2
1
Remove and save the two screws that hold the
blower plate in place. Slide blower plate from
under its retaining flange. Remove the cover
plate installed on the back. Remove and save
screws that hold blower unit to the oven
ADAPTING BLOWER FOR
OUTSIDE BACK EXHAUST
C4.
Carefully pull out the blower unit. The wires
will extend far enough to allow you to adjust
the blower unit.
Blower
Plate
Before Rolling
After Rolling
Back of
Oven
Back of
Oven
Retaining
Flange
Back of
Oven
3
Rotate blower unit counterclockwise 180°.
Before Rotation After Rotation
Back of
Oven
Back of
Oven
