Installation Instructions

ManualsBrandsGE ManualsMicrowave/Micro Hood AccessoriesGE Black Stainless 27" Built-In Microwave Oven Trim Kit

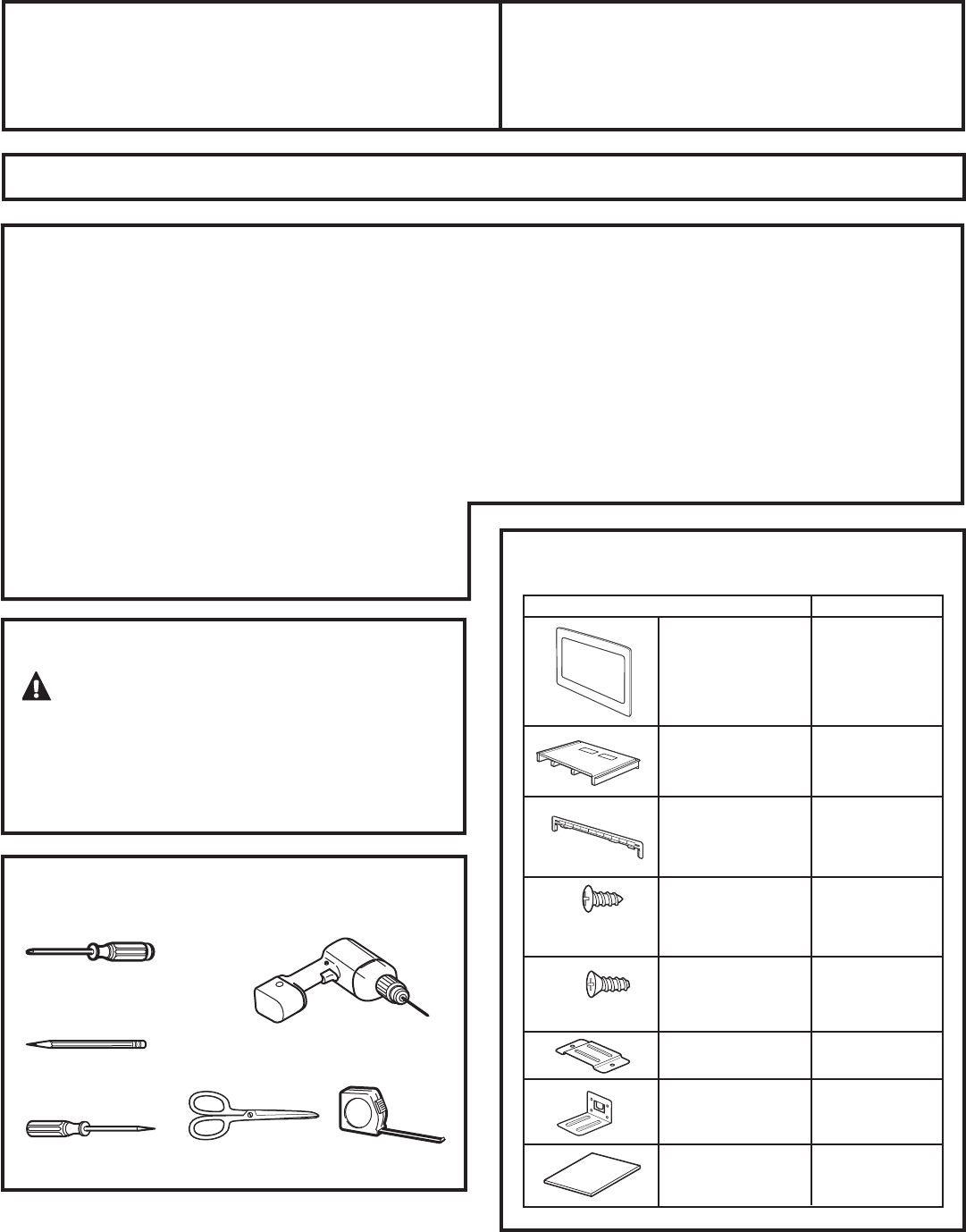

PART QUANTITY

Trim Frame 1

Bottom Duct 1

Top Bracket 1

Phillips Round-Head

Screws

(21 or 22 required

for installation)

Phillips Flat-Head 5

Screws (4 required

for installation)

Anti-Tip Bracket 1

Bottom Bracket 1

Template 1

PARTS INCLUDED

Questions? Call GE Answer Center at 800.626.2000 or Visit our Website at: www.GEAppliances.com

READ CAREFULLY.

KEEP THESE INSTRUCTIONS

Installation Built-In Trim Kits

Instructions

JX7227/JX7230/JX2127SH/JX2130SH

Read these instructions completely and carefully.

•

IMPORTANT – Save these

instructions for local inspector’s use.

•

IMPORTANT – Observe all

governing codes and ordinances.

• Note to Installer – Be sure to leave these

instructions with the Consumer.

• Note to Consumer – Keep these instructions for

future reference.

• For easier installation and personal safety, we recommend

that two people install this microwave oven.

• Unplug the microwave oven before attempting

installation of this kit.

BEFORE YOU BEGIN

• Skill level – Installation of this appliance requires basic

mechanical and electrical skills.

• Completion time – 1-3 hours

• Proper installation is the responsibility of the installer.

• Product failure due to improper installation is not

covered under the Warranty.

• This kit is UL listed for installation alone or over

any General Electric/Hotpoint single electric wall oven.

TOOLS YOU WILL NEED

#2 Phillips

screwdriver

Pencil

Tape measure

Awl or punch

Drill with

ø64” bit or #35

FOR YOUR SAFETY:

WARNING – Before beginning the

installation, switch power off at service panel and lock

the service disconnecting means to prevent power from

being switched on accidentally. When the service

disconnecting means cannot be locked, securely fasten

a prominent warning device, such as a tag, to the

service panel.

Scissors (optional)

Summary of content (8 pages)

PAGE 1
Installation Instructions Built-In Trim Kits JX7227/JX7230/JX2127SH/JX2130SH Questions? Call GE Answer Center at 800.626.2000 or Visit our Website at: www.GEAppliances.com BEFORE YOU BEGIN Read these instructions completely and carefully. • • Skill level – Installation of this appliance requires basic mechanical and electrical skills. • Completion time – 1-3 hours • Proper installation is the responsibility of the installer.
PAGE 2
Installation Instructions 2 INSTALL BOTTOM BRACKET AND BOTTOM DUCT 1 CUTOUT DIMENSIONS Models 27” 30” Height 16 ø 16 ø Width 251ø2” 251ø2” 191ø2” or 22” 191ø2” or 22” Depth (min.)* 3 4” A Fit the tab on the bottom bracket into the slot on the back of the bottom duct, and push down until the bracket is flush with the bottom of the duct. Fasten the bottom bracket to the bottom duct by using two round-head screws. 3 4” B Disconnect the microwave oven before proceeding with the installation.
PAGE 3
Installation Instructions 3 INSTALL THE ANTI-TIP BRACKET 4 INSTALL MICROWAVE OVEN INTO CABINET A Draw a line on the cutout floor at the center of the cutout, and extend the line 1ø2” down the face of the cabinet. A Slide the microwave oven part way into the cabinet opening. B Plug in the microwave oven. B Fold or cut the front edge of the template, along the front guide line.
PAGE 4
Installation Instructions 5 INSTALL THE TOP BRACKET A Place the top bracket on the top of the microwave oven, with the tabs on the top and sides of the bracket fitting squarely against the microwave oven. 6 INSTALL THE TRIM FRAME A Place the trim frame over the microwave oven. Screws B Drill pilot holes through the holes in the top bracket. Attach the top bracket to the cabinet using nine round-head screws. B Open the microwave oven door.
PAGE 5
Instrucciones de Instalación Kits Ajustables para Empotrar JX7227/JX7230/JX2127SH/JX2130SH ¿Preguntas? Llame a un Centro de Consultas de GE comunicándose al 800.626.2000 o visite nuestro sitio web en: www.geappliances.com ANTES DE COMENZAR • Nivel de habilidad – La instalación de este electrodoméstico requiere un nivel básico de habilidades mecánicas. • Tiempo de instalación – Aproximadamente entre 1 y 3 horas. • La correcta instalación del producto es responsabilidad del instalador.
PAGE 6
Instrucciones de Instalación 2 INSTALACIÓN DEL SOPORTE INFERIOR Y DEL CONDUCTO INFERIOR 1 DIMENSIONES DEL RECORTE Modelos 27µ 3 4µ 30µ $OWXUD ø ø Ancho 251ø2µ 251ø2µ 191ø2µ o 22µ 191ø2µ o 22µ Profundidad (mín.)* A Enganche la lengüeta en el soporte inferior sobre la ranura en la parte trasera del conducto inferior, y presione hacia abajo hasta que el soporte quede alineado con la parte inferior del conducto.
PAGE 7
Instrucciones de Instalación 3 INSTALE EL SOPORTE ANTIVOLCADURAS 4 INSTALE EL HORNO MICROONDAS EN EL GABINETE A Deslice la parte del horno microondas hasta la mitad de la abertura del gabinete. B Enchufe el horno microondas A Dibuje una línea sobre el piso del recorte, específicamente en el centro de la misma, y H[WLHQGD OD OtQHD òµ GHEDMR GH OD FDUD GHO JDELQHWH B Doble o recorte el extremo frontal de la plantilla, a lo largo de la línea de la guía frontal.
PAGE 8
Instrucciones de Instalación 5 INSTALACIÓN DEL SOPORTE SUPERIOR A Coloque el soporte superior en la parte superior del horno microondas, con las lengüetas sobre la parte superior y los costados del soporte ajustadas de frente contra el horno microondas. 6 INSTALACIÓN DE LA ESTRUCTURA AJUSTABLE A Coloque la estructura ajustable sobre el horno microondas. Tornillos B Taladre agujeros piloto a través de los agujeros del soporte superior.
