Routing Sources
Selecting the Output

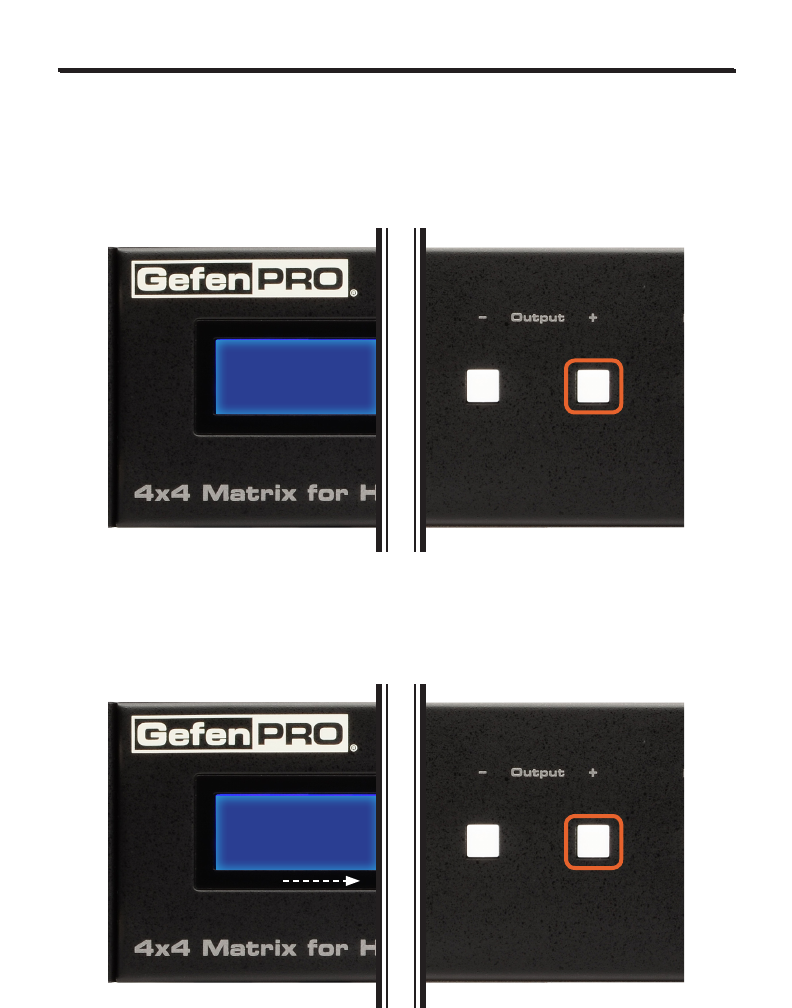

1. Toselecttheoutput,presstheOut -orOut +buttononce.Theroutingstatefor
OutputAwillbedisplayed.



















2. PresstheOut +buttontocyclethrougheachOutput,fromlefttoright.TheOutput
withthecurrentlyroutedInputwillbedisplayed.
OPERATING THE
4X4 MATRIX FOR HDMI W/ 4 ELR-POL OUTPUTS
13
OUT:1
IN:3
OUT: 3
IN: 1
