User manual

OPERATING THE
4X4 MATRIX FOR HDMI W/ 4 ELR-POL OUTPUTS
18
Determining the Current Switching Mode
EachHDMIinputcanbesettoFast ModeorSlow Mode.Itisrecommendedthateach
HDMIinputbesettoFast Modeforbestperformance.
1. ConsecutivelypresstheMenubuttononthefrontpaneluntiltheswitchingmodes
screenisdisplayed.

Therstrow(IN)representseachHDMIinputonthematrix.Thebottomrow(MODE)
representsthecurrentswitchingmodeofeachHDMIinput.








Selecting the Input

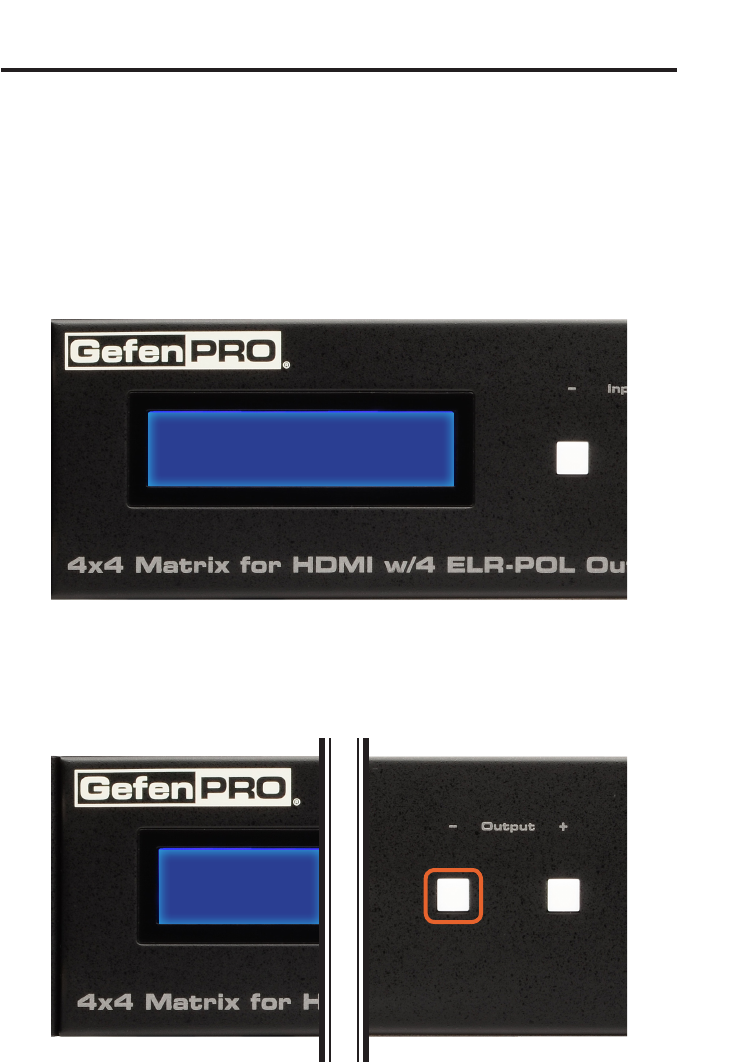

2. TochangetheswitchingmodeonanHDMIinput,presstheOutput -
(orOutput +)buttononce.TheswitchingmodeforInput1willbedisplayed:



















TheletterFindicatesthattheHDMIinputisusingFastModeswitching.
IftheHDMIinputissettoSlowModeswitching,aletterSwillbedisplayedunder
theinput.
IN:1234
MODE:FSFF
IN:1
MODE:F
