3. AftersettingtheIRaddress,makesurethattheDIPswitchesontheIRRemote
ControlaresetaccordingtotheinformationintheLCDdisplay.Seepage9for
informationonsettingtheIRchannelfortheIRRemoteControlunit.


















Intheexampleabove,the4x4 Matrix for HDMI w/4 ELR-POLissettoIRchannel1.
Therefore,DIPswitch1ontheIRRemoteControlmustbesettotheONpositionand
DIPswitch2mustbesettotheOFFposition.

4. PresstheMenubuttontoreturntotheRoutingscreen.
OPERATING THE
4X4 MATRIX FOR HDMI W/ 4 ELR-POL OUTPUTS
22

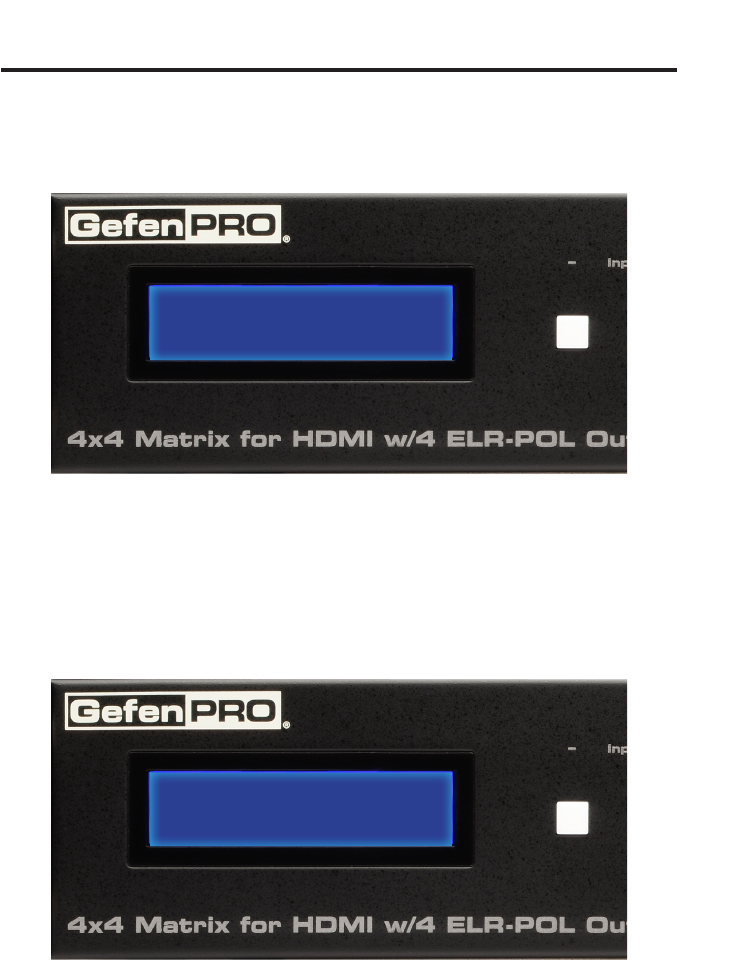

IR ADDRESS : 1
1-ON , 2-OFF
OUT:1234
IN:3223
