User manual

Switching between Sources

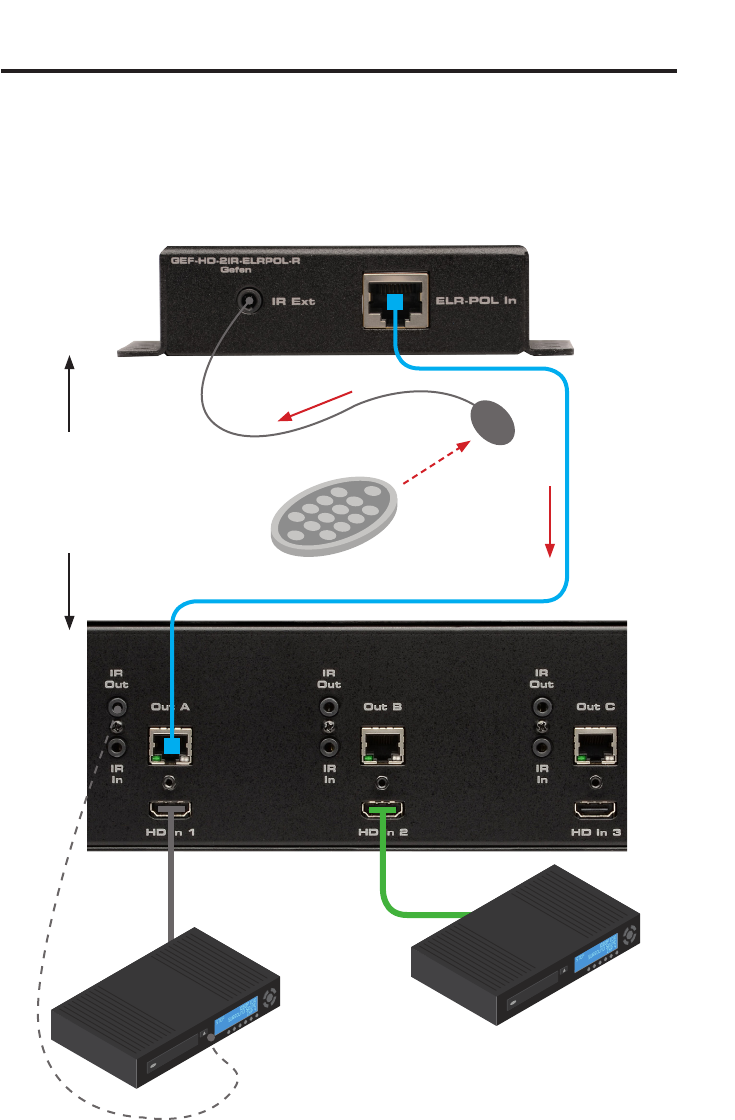

Matrixswitchingcanalsobecontrolledbyusingthesamesetup.UsetheincludedIRremote
control(Gefenpartno.RMT-16IRN)toswitchbetweensources.Intheexamplebelow,the
sourceconnectedtoHD In 2hasbeenroutedtotheReceiverunitconnectedtoOut A.See
page23fordetailsonroutingsourcesusingtheincludedIRremotecontrol.
26
IRsignals
RMT-16IRNremote
CAT-5
IRExtender
HDMIcable
IREmitter(notrequiredtoswitchsources)
up to 330 feet
(100 meters)
ReceiverunitMatrix
Source1 Source2
OPERATING THE
4X4 MATRIX FOR HDMI W/ 4 ELR-POL OUTPUTS
