Controlling the Display

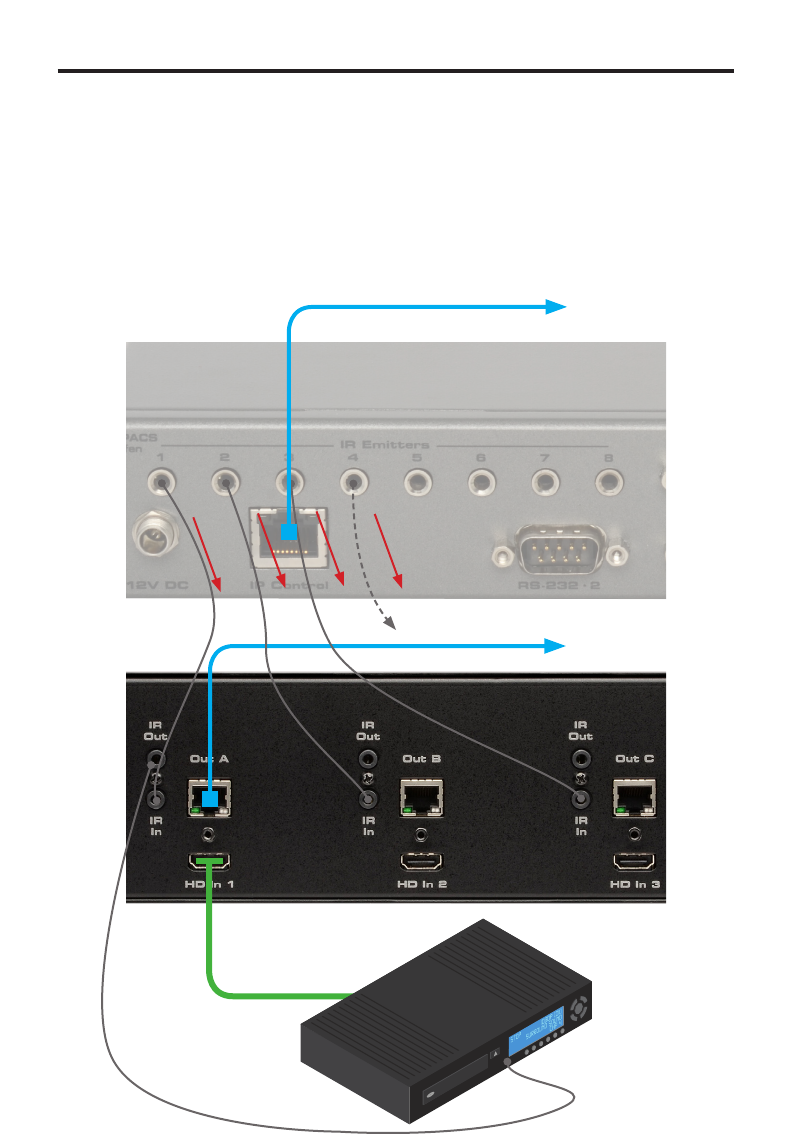

DisplayscanalsobecontrolledbyconnectingtheGefenPACS(orMiniPACS)tothematrix.
1. Connectuptofour3.5mm-to-3.5mmmini-monocablesfromtheIREmitteroutputsonthe
GefenPACS(orMiniPACS)totherespectiveIR In portsonthematrix.Theredarrows
indicateIRsignalsfromthePACS/MiniPACS.




























IREmitter
Source
HDMIcable
ToReceiverunit
Tolocalnetwork
GefenPACSMatrix
x4
CAT-5
27
OPERATING THE
4X4 MATRIX FOR HDMI W/ 4 ELR-POL OUTPUTS
