2. ConnectanIREmitterfromeachIR Out jack,ontheReceiverunit,totheIRsensoron
theHDTVdisplay.



































EachdisplaycannowreceiveIRcommandsfromthePACSorMiniPACS.
RefertothePACSorMiniPACSUserManualformoreinformationonusingIR
commands.
28

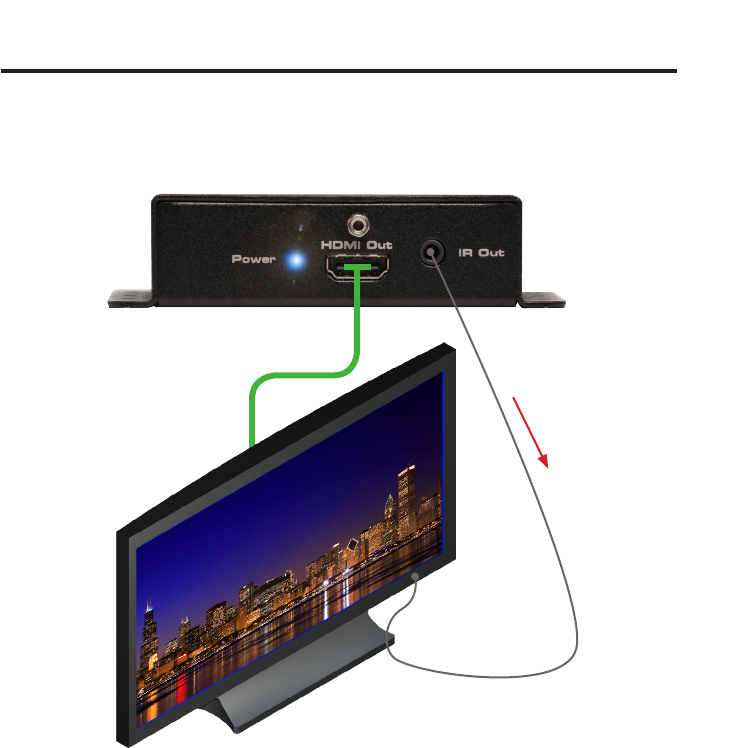

IREmitter
HDMIcable
IRsignals
ReceiverunitHDTVdisplay
