User manual

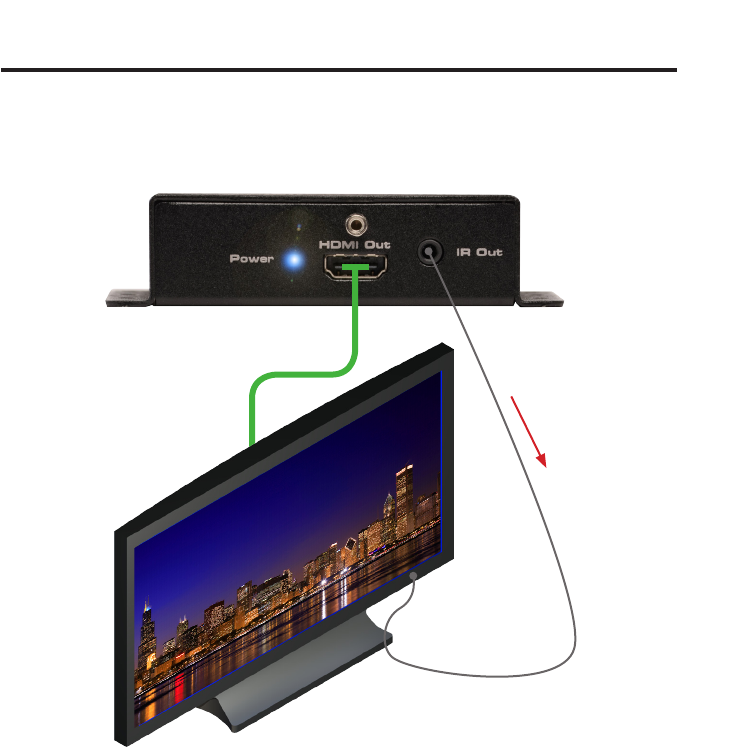

2. ConnectanIREmitterfromeachIR Outjack,ontheReceiverunit,totheIRsensoron
theHDTVdisplay.


































WhenanIRcommandissentfromtheGefenPACS/MiniPACS,thecommandwill
besenttoeveryReceiverunitthatisconnectedtothematrix.Thisoperationoccurs
independentlyofthecurrentroutingstatus.

Thisfeaturehasmanyapplications.Forexample,let’ssaywehaveasetupthatuses
threePanasonicdisplaysandfourSonydisplays.Ifwesenda“poweroff”commandfrom
thePACSfortheSonydisplays,thenallReceiverunitswillreceivethecommandbutonly
theSonydisplayswillacknowledgethe“poweroff”command.
IREmitter
HDMIcable
IRsignals
ReceiverunitHDTVdisplay
32
OPERATING THE
4X4 MATRIX FOR HDMI W/ 4 ELR-POL OUTPUTS
