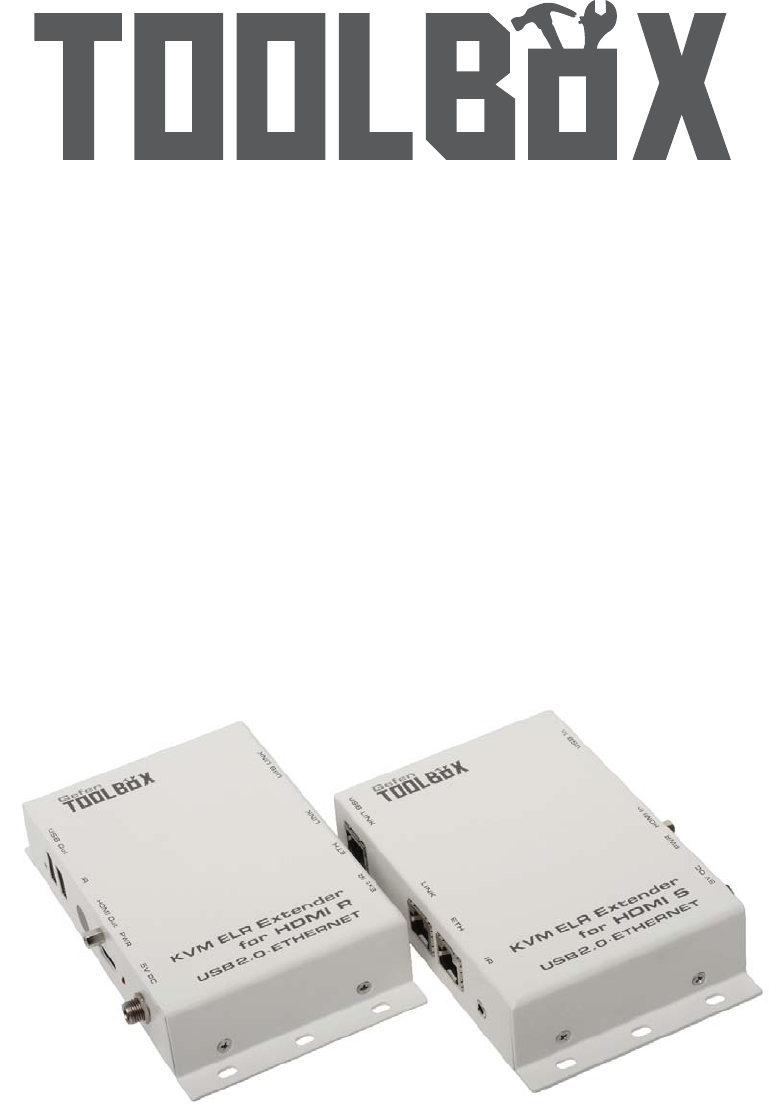

Gefen HDKVM Extra Long Range Extender GTB-HDKVM-ELR GTB-HDKVM-ELR-BLK User Manual www.gefentoolbox.
ASKING FOR ASSISTANCE Technical Support: Telephone Fax (818) 772-9100 (800) 545-6900 (818) 772-9120 Technical Support Hours: 8:00 AM to 5:00 PM Monday thru Friday, Pacific Time Write To: Gefen, LLC. c/o Customer Service 20600 Nordhoff St Chatsworth, CA 91311 www.gefentoolbox.com support@gefentoolbox.com Notice Gefen, LLC reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice.
CONTENTS 1 Introduction 2 Operation Notes 3 Features 4 Sender Unit Layout 5 Sender Unit Descriptions 6 Receiver Unit Layout 7 Receiver Unit Descriptions 8 Connecting the HDKVM Extra Long Range Extender 9 Wiring Diagram 10 DIP Switch Configuration 12 Network Cable Wiring Diagram 13 Wall Mounting Instructions 14 Specifications 15 Warranty
INTRODUCTION Congratulations on your purchase of the GefenToolBox HDKVM Extra Long Range Extender. Your complete satisfaction is very important to us. About Gefen We specialize in total integration for your home theater, while also focusing on going above and beyond customer expectations to ensure you get the most from your hardware. We invite you to explore our distinct product line. Please visit http://www.gefen.
OPERATION NOTES PLEASE READ THESE NOTES BEFORE INSTALLING OR OPERATING THE HDKVM EXTRA LONG RANGE EXTENDER • CAT-5 or CAT-6 cables should not exceed 330 feet (100 meters). • Shielded (STP) CAT-5 or CAT-6 is recommended. However, un-shielded (UTP) CAT-5 or CAT-6 is acceptable. NOTE: The shielded cable has an advantage by providing immunity to Electromagnetic Interference (EMI), cell phones and A/C motors.
FEATURES Features • Supports 1080p Full HD and 3DTV at 330 feet (100 meters) • Extends USB 2.0 up to 330 feet (100 meters) • Supports USB 2.0 480 Mbps • Backward-compatible with USB 1.1 devices • IR backchannel • Ethernet support • Locking Power Supplies • Surface-mountable Package Includes (1) (1) (1) (1) (2) (1) GefenToolBox HDKVM Extra Long Range Extender - Sender Unit GefenToolBox HDKVM Extra Long Range Extender - Receiver Unit 6 ft. HDMI cable (M-M) 6 ft.
SENDER UNIT LAYOUT Top 1 Left Side 2 3 4 Right Side 5 6 7 8 4 9
SENDER UNIT DESCRIPTIONS 1 USB LINK Transmits the USB signals from the Sender Unit to the Receiver Unit using CAT-5e / CAT-6 cable. 2 LINK Transmits the HDMI, Ethernet, and IR signals from the Sender Unit to the Receiver Unit using CAT-5e / CAT-6 cable. 3 ETH Connect a CAT-5 cable from a port on a local Ethernet switch to this jack. The HDKVM Extra Long Range Extender supports 10/100BaseT Ethernet. 4 IR Connect an IR Blaster cable (Gefen part no.
RECEIVER UNIT LAYOUT Top 1 Left Side 2 6 3 4 Right Side 5 7 8 6 9 10
RECEIVER UNIT DESCRIPTIONS 1 Ext IR Connect an IR Extender (Gefen part no. EXT-RMT-EXTIR) cable from this port to the Hi-Def source to extend the IR control. 2 ETH Connects an Ethernet cable from this port to a network device. 3 LINK Transmits the HDMI, Ethernet, and IR signals from the Sender Unit to the Receiver Unit using CAT-5e / CAT-6 cable. 4 USB LINK Transmits USB signals from the Sender Unit to the Receiver Unit using CAT-5e / CAT-6 cable.
CONNECTING THE HDKVM EXTRA LONG RANGE EXTENDER How to Connect the HDKVM Extra Long Range Extender 1. Connect the Hi-Def source to the Sender Unit using the included HDMI cable. 2. Use an HDMI cable to connect the Receiver Unit to an HDTV display. 3. Connect the USB host device to the Sender Unit. 4. Connect the USB devices to the Receiver Unit. 5. Connect the Ethernet port on the Sender Unit to the network. 6.
CONNECTING THE HDKVM EXTRA LONG RANGE EXTENDER Wiring Diagram for the HDKVM Extra Long Range Extender CAT-5 LINK CABLE / ETHERNET (Up to 330 ft) HDMI CABLE USB CABLE Router Receiver Router Home Theater Multimedia PC Sender HDMI Display USB Printer GTB-HDKVM-ELR Attention: This product should always be connected to a grounded electrical socket.
DIP SWITCH CONFIGURATION Receiver Unit The Gefen HDKVM Extra Long Range Extender contains four (4) DIP switches on the bottom of the Receiver Unit (the Sender Unit does not contain DIP switches). Each of these DIP switches performs a different function. Four DIP switches located on the bottom of the Receiver Unit. DIP Switch 1 - EDID Mode (Default = ON) • ON - Pass-Through Mode DDC and HPD are passed through.
DIP SWITCH CONFIGURATION Receiver Unit DIP Switch 2 - Hot Plug Detect (Default = OFF)* • ON - HPD Pass-Through HPD follows upstream HPD towards the source. The HPD signal will reflect the connection status between the display device and the source device. If the source or monitor is temporarily disconnected then reconnected, there will be a delay of 20 - 30 seconds before the content is restored to the monitor. • OFF - HPD Always High The HPD signal remains high regardless of the downstream HPD state.
NETWORK CABLE WIRING DIAGRAM Gefen recommends the TIA/EIA-568-B wiring option. Please adhere to the table below when field terminating cable for use with Gefen products. Pin Color 1 Orange / White 2 Orange 3 Green / White 4 Blue 5 Blue / White 6 Green 7 Brown / White 8 Brown 12345678 CAT-5, CAT-5e, and CAT-6 cabling comes in stranded and solid core types. Gefen recommends using solid core cabling. It is recommended to use one continuous run from one end to the other.
WALL MOUNTING INSTRUCTIONS The GefenToolBox HDKVM Extra Long Range Extender Sender Unit and Receiver Unit may be mounted vertically on a wall or in a cabinet with wood/ drywall screws as shown in the diagram above. There should be an inch or two of clearance between the edges of the unit and any walls or vertical surfaces to allow for enough clearance for insertion and retraction of all input and output cables. For installation on a drywall surface, use a #6 drywall screw.
SPECIFICATIONS Maximum Pixel Clock................................................................................225 MHz Input Video Signal................................................................................1.2 Volts p-p Input DDC Signal...........................................................................5 Volts p-p (TTL) HDMI Connector (Sender / Receiver)..................................Type A, 19-pin, female USB Connector (Sender)........................................................
WARRANTY Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notified within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications.
Rev A1 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 www.gefentoolbox.com Pb This product uses UL listed power supplies. fax: 818-772-9120 support@gefentoolbox.
