User's Manual

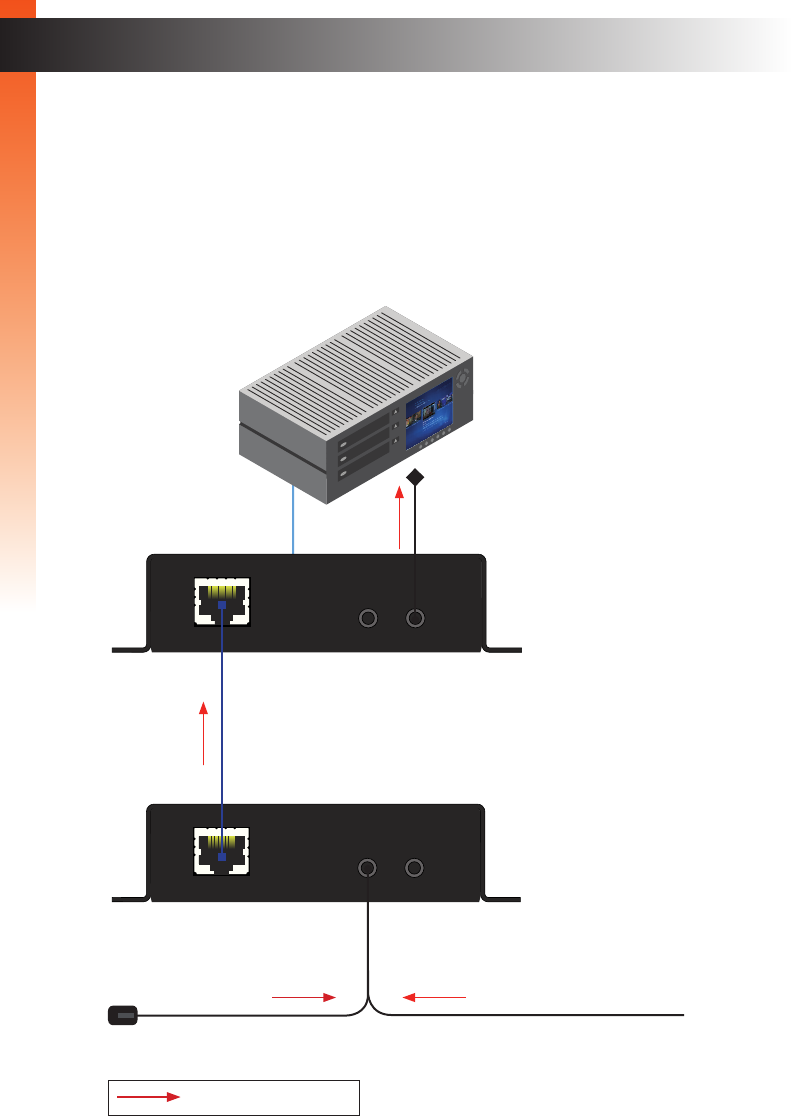

Controlling the Source from the Viewing Location
1. Connect an EXT-RMT-EXTIRN IR Extender (1 pc included) to the IR In/Ext port on the
Receiver unit. If using an automation system, connect the 3.5mm mini-stereo connector
from the IR In/Ext port on the Receiver unit to the automation system. IR signals are
transmited over the Link cable.
2. Connect an EXT-IREMIT IR Emitter (1 pc included) from the IR Out port, on the
Sender unit, to the IR sensor window on the source device.
page | 11
IR signals
Bidirectional IR Control
Basic Operation
Power
Link
24V DC
HDMI In
Link IR In/Ext
IR Out
GTB-UHD-HBTL-S
®
w/ 2-way IR and POL
4K Ultra HD
HDBaseT Extender S
™
Power
Link
24V DC
HDMI Out
Link IR In/Ext
IR Out
GTB-UHD-HBTL-R
®
w/ 2-way IR and POL
4K Ultra HD
HDBaseT Extender R
™
IR extender
or
from Automation
System
to Ultra HD display
Ultra HD source
IR emitter
Sender unit
Receiver unit
to HDMI Out port
to HDMI In port
