Each of the following sections describe the DIP switch settings that control each feature.
DIP switches that are not related to a specic feature have been grayed-out. Note that DIP
switch settings can be used independently or in conjunction with other features, as desired.
EDID Management
The 4K Ultra HD HDBaseT Extender w/ 2-way IR and POL provides EDID management.
The Sender unit can use the EDID from the sink device (downstream EDID) or modify the
EDID, locally.
Description Sender unit Receiver unit
External EDID mode (default)
• Allows all video and audio features of the
connected device to be passed to the
source device.
Internal EDID mode
• Copies the downstream EDID locally for
use with HPD High Mode.
• See HPD Mode (page 16) for more
information.

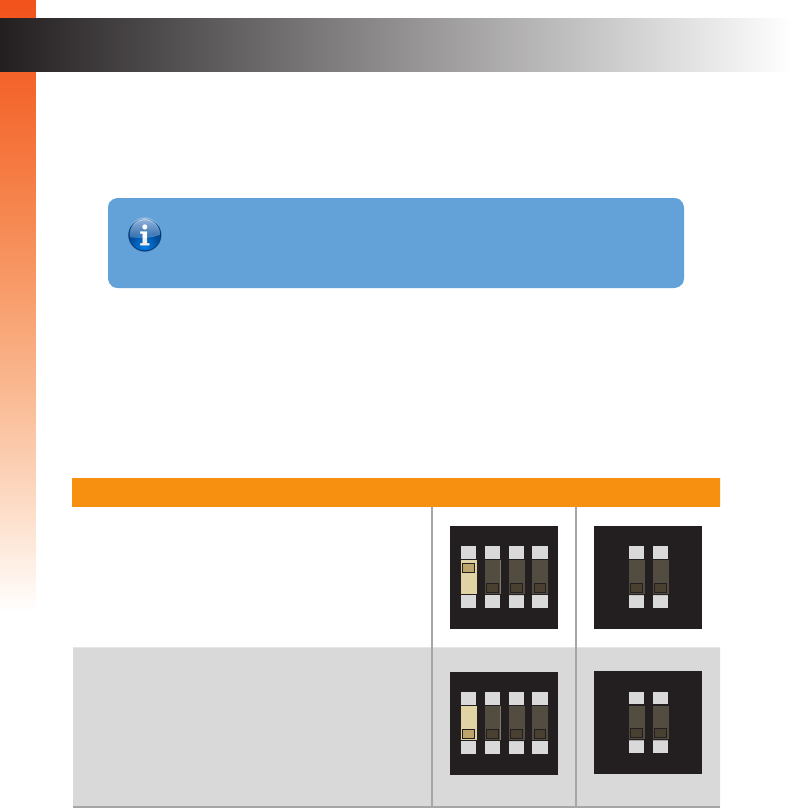

DIP Switch Conguration
ON RSN
1 2 3 4
ON RSN
1 2 3 4
ON
1 2
ON
1 2
Information
DIP switch 2, on the Receiver unit, is not used and is reserved for optional
future expansion.
