WLTFSM-136ACN Quick installation Guide 1

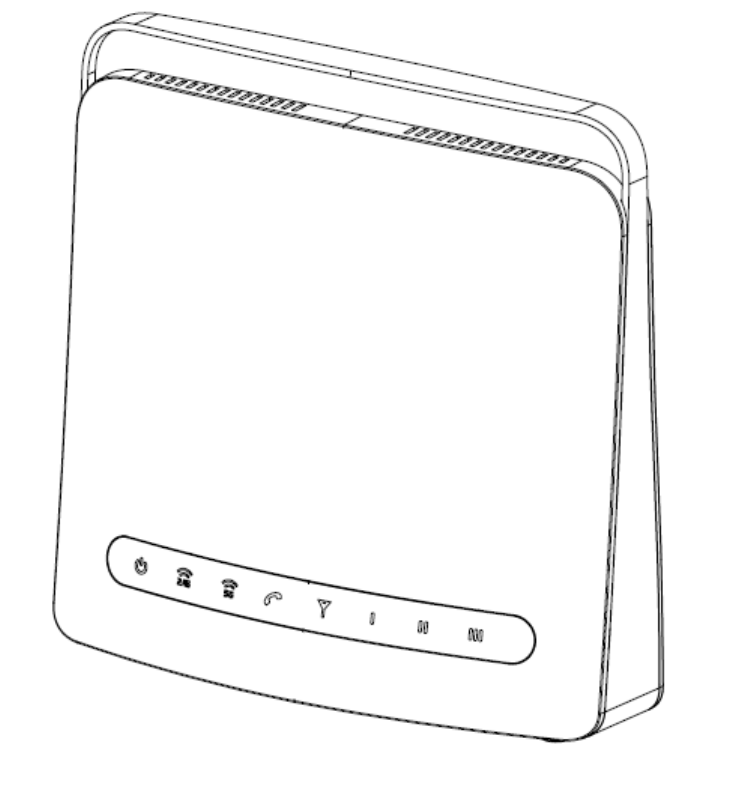

LED Indicators LED Indication 1 Power Status Description ON Power ON OFF Power OFF ON Wi-Fi ON OFF Wi-Fi OFF Flashing Transmitting data ON VoIP ON OFF VoIP OFF 2 WiFi status 3 VoIP Status 2
Display signal strength 1 LED: 5dB < CINR < 10dB ON 4 5 2 LED: 10dB < CINR < 18dB Signal Strength 3 LED: 18dB < SINR OFF SINR < 5dB Flashing Scanning Base Station Firmware All LED Upgrade Flashing 3
Connectors Connector Description Power (DC-12V Port) The power port is where you connect the enclosed power adapter. Power On/Off Switch The on/off switch support to turn off device 2 WPS Holds down the button for 5 seconds to WPS enable 3 Reset Holds down the button for 5-seconds to factory defaults. 4 LAN – RJ -45 The LAN port allows you to connect Modem to your PC or Hub using a Cat.
network cable. 5 USB Type A Host Support USB 2.0 Host 6 Voice– RJ-11 The voice port allows you to connect your Phone to this Modem 7 Antenna Connector Support external Antenna with SMA Connectors 8 USIM Slot Support 2FF size ; 1.8V/3.
Installation Please follow the steps below to install the device: Step1: Connect the device LAN port to your PC with a RJ-45 Ethernet cable that is supplied. Step2: Insert SIM card into the device with right direction. Step3: Insert the power cord into the LTE Indoor CPE's DC-12V power jack; and insert the plug into power outlet. Step4: Switch ON the power. The device will start the booting process. After a few seconds, the LED lights will start blinking.
Easy Setup Please follow the steps below to configure your device through the web interface: Step1: Open the Web browser (Internet Explorer) and enter the default IP address of the IDU CPE : http://192.168.15.1 Step2: Enter username/password to access the web management interface. http://192.168.15.1 Username : administrator Password : administrator The page displays in your browser after login; you can simply configure the device settings.
Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/519/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/519/EC: EN 301 908-1 V7.1.1 EN 301 908-13 V6.2.1 EN 300 328 V1.9.1 EN 301 893 V1.8.1 EN 62311:2008 EN 301 489-1 V1.9.2 EN 301 489-17 V2.2.1 EN 301 489-24 V1.5.
Españ ol [Spanish] Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ [type of equipment] ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
[Finnish] tyyppimerkintä ] tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
