General Machine Products Co., Inc. www.gmptools.com

Page 1 of 4

reproduced or transmitted in any form whatsoever without the

written permission of

General Machine Products Co., Inc.

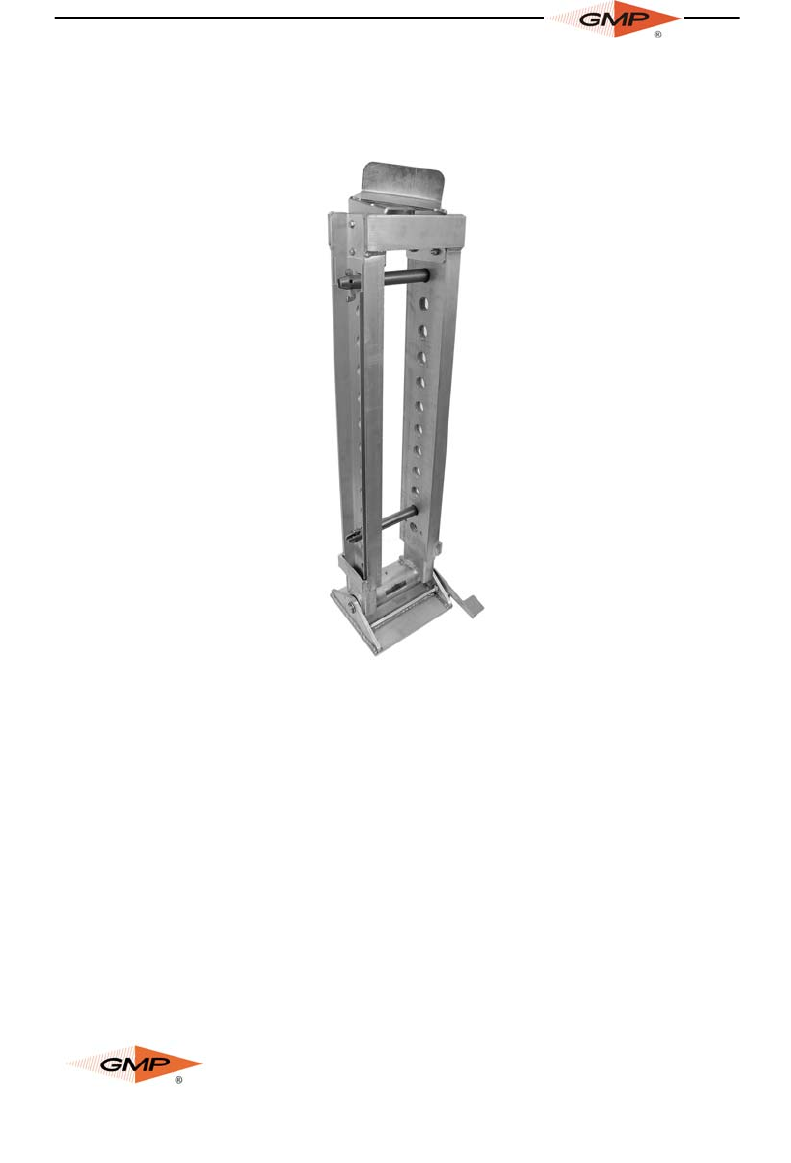

JAMB SKID

OPERATION & MAINTENANCE MANUAL

GMP • 3111 Old Lincoln Hwy • Trevose, PA 19053 • USA

TEL: +1-215-357-5500 • www.gmptools.com

June 13 2012 USA Ver 1

Manual P/N 34654

P/N RANGE

70640 48” to 85”

70643 84” to 121”

70646 114” to 151”

Summary of content (4 pages)

PAGE 1
JAMB SKID OPERATION & MAINTENANCE MANUAL P/N RANGE 70640 70643 70646 48” to 85” 84” to 121” 114” to 151” Copyright 2012 by General Machine Products Co., Inc All rights reserved. No part of this publication may be copied, reproduced or transmitted in any form whatsoever without the written permission of General Machine Products Co., Inc. GMP • 3111 Old Lincoln Hwy • Trevose, PA 19053 • USA TEL: +1-215-357-5500 • www.gmptools.com www.gmptools.com Page 1 of 4 June Machine 13 2012 USACo.
PAGE 2
INSTALLATION 1. Lower the lower section of the Jam Skid into the manhole. Rotate the locking foot pedal to the unlocked position (figure A). 2. Align the center of the jam skid with the center of the duct. 3. Lower the upper section into the manhole and install the upper section into the lower section. 4. Raise the upper section so the swivel bracket rests under the lip of the manhole and the entire jam skid rests at an angle of approximately 75° from the floor. 5.
PAGE 3
70640 & 70643 rated @ 10,000 lbs. 70646 rated @ 5,000 lbs. Maintenance 1. Before use, ensure that the Jam Skid is not damaged, bent or twisted and all bolts are tight 2. Locking pins should be wiped with a light oil to prevent rust. 3. Jam skid should be cleaned of all mud and contaminates before storage. 4. Locking foot should be periodically greased to ensure smooth operation. Grease Fitting www.gmptools.com Page 3 of 4 General Machine Products Co., Inc.
PAGE 4
OPTIONS Quadrant Blocks P/N 84453 84454 84455 Max. Cable Size 3 in. (76 mm) 4 in. (102 mm) 5 in. (127 mm) Weight 60 lbs (27 kgs) 75 lbs (34 kgs) 90 lbs (40 kgs) Cable Sheaves P/N 71723 71726 71729 71722 71725 71728 71721 71724 71727 WIDTH 3 in. (8 cm) 4 in.(10 cm) 5 in.(13 cm) 3 in.(8 cm) 4 in.(10 cm) 5 in.(13 cm) 3 in.(8 cm) 4 in.(10 cm) 5 in.(13 cm) DIAMETER 11 in.(28 cm) 11 in.(28 cm) 11 in.(28 cm) 20 in.(51 cm) 20 in.(51 cm) 20 in.(51 cm) 26-1/2 in.(67 cm) 26-1/2 in.(67 cm) 26-1/2 in.
