Specification

Ideal for identifying 110/220VAC power circuit and wiring

problems that can cause shocks, sparks, fires, equipment

failures and poor equipment performance

• Measures a branch circuit’s line voltage, peak voltage

and neutral-to-ground voltage

• Calculates a circuit’s voltage drop in response to 12A,

15A and 20A loads

• Measures the impedance of hot, neutral and ground

conductors as well as available short-circuit current

(ASCC)

• Identifies wiring configurations and detects wiring faults

and missing ground wires

• Tests the reliability and response time of GFCIs (ground

fault circuit interrupters) and RCDs (residual current

devices)

• Displays True RMS readings of all voltages except peak

voltages

• Works with 2- and 3-phase circuits

• Jumbo LCD with 30-second backlight

• Familiar menu/sub-menu operation

• Data HOLD button and 30-minute auto power off

• Powered by six “AAA” batteries (included)

• 1 year limited warranty

Features & Benefits:

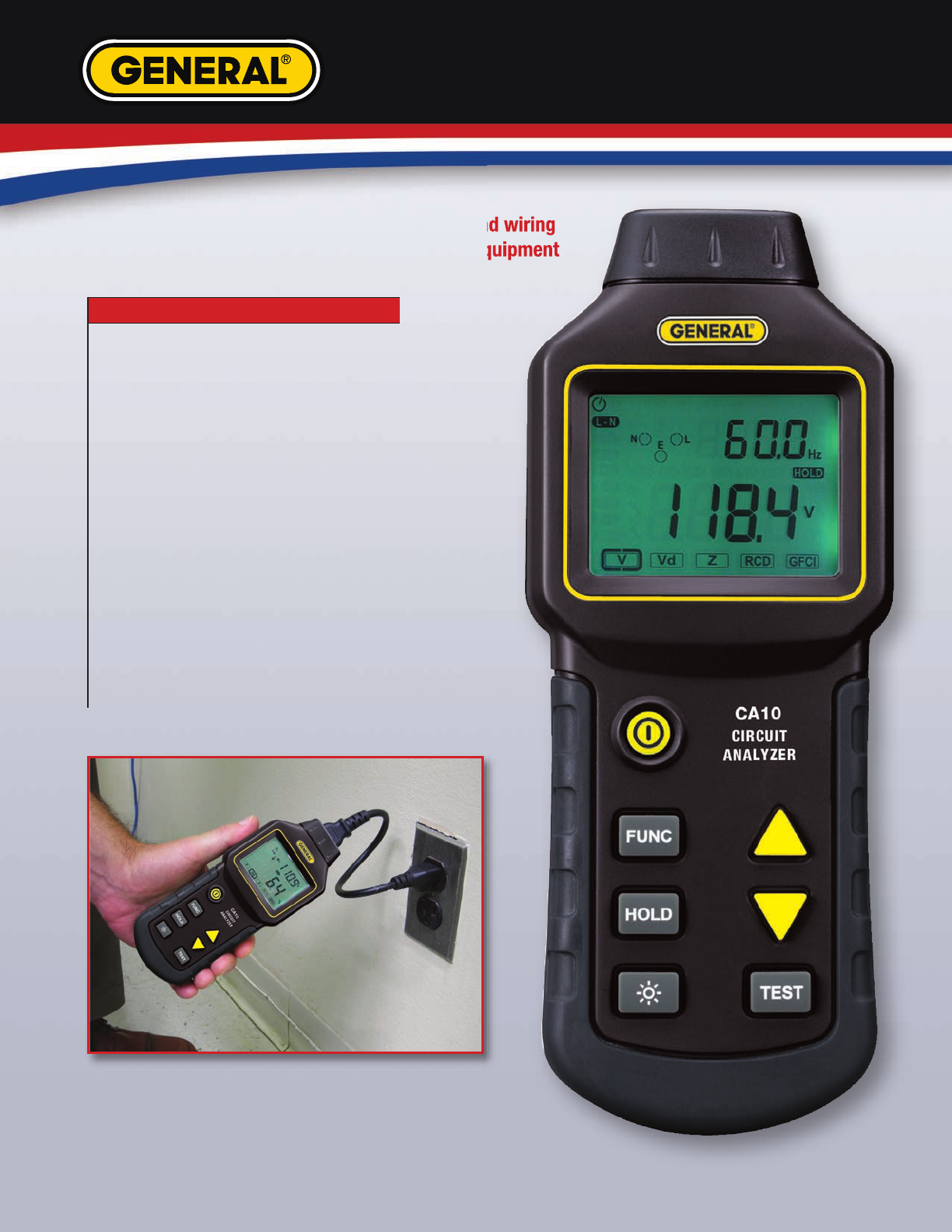

AC Circuit Analyzer

CA10

No. CA10

The short test cable improves

voltage-drop measurement accuracy

PAGE 1
CA10 AC Circuit Analyzer Ideal for identifying 110/220VAC power circuit and wiring problems that can cause shocks, sparks, fires, equipment failures and poor equipment performance Features & Benefits: • Measures a branch circuit’s line voltage, peak voltage and neutral-to-ground voltage • Calculates a circuit’s voltage drop in response to 12A, 15A and 20A loads • Measures the impedance of hot, neutral and ground conductors as well as available short-circuit current (ASCC) • Identifies wiring configuration
PAGE 2
AC Circuit Analyzer Ideal for identifying 110/220VAC power circuit and wiring problems that can cause shocks, sparks, fires, equipment failures and poor equipment performance Specifications: Parameter Measurement Range Measurement Accuracy Display Resolution Line Voltage Peak Voltage Line Frequency Voltage Drop Load Voltage Neutral-to-Earth Voltage Hot, Neutral and Ground Line Impedance 85 to 265VAC 121 to 374VAC 45 to 65 Hz 0.1 to 99.9% 10 to 265V 0 to 10VAC 0 to 3Ω >3Ω ± 1.0% ± 0.2V ± 1.0% ± 0.
