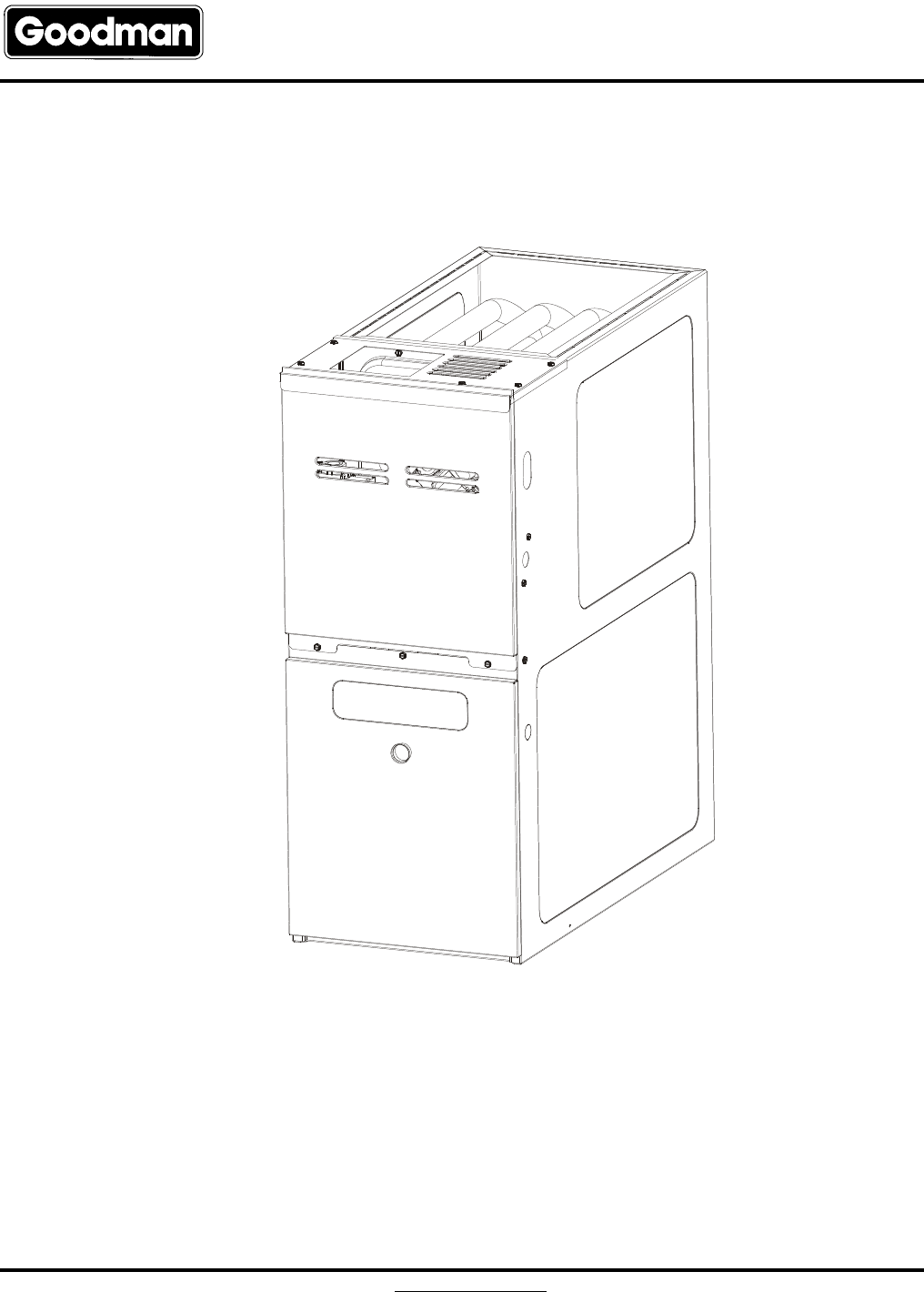

® REPAIR PARTS GMS8 80% Single-Stage MultiSpeed Furnace GMS80453ANCC GMS80453AXCC GMS80703ANCC GMS80703AXCC GMS80704BNCC GMS80704BXCC GMS80904BNCC GMS80904BXCC GMS80905CNCC GMS80905CXCC GMS81155CNCC GMS81155CXCC GMS81405DNCC This manual is to be used by qualified technicians only. © 2010 Goodman Manufacturing Company, L.P. ◊ 5151 San Felipe, Suite 500 ◊ Houston, TX 77056 RP-607 www.goodmanmfg.
Important Information Index Functional Parts List ................................................................................................... 3 Illustration and Parts ................................................................................................... 4 - 11 Views shown are for parts illustrations only, not servicing procedures.
Functional Parts Part No: Description: Expanded Model Nomenclature 0131F00021 BLOWER MOTOR 1/3HP, 4SP, 6PL (M1, M2, M3, M4) 0131F00022 BLOWER MOTOR 1/2 HP, 4 SP, 6 PL (M5, M6, M7, M8, M9, M10, M11, M12) M1 - GMS80453ANCC M2 - GMS80453AXCC M3 - GMS80703ANCC 20046618S BLOWER MOTOR 3/4 HP (M13) M4 - GMS80703AXCC D6723311S BLOWER WHEEL (M13) M5 - GMS80704BNCC B1368047A BLOWER WHEEL 10 X 10 (M9, M10, M11, M12) B1368034S BLOWER WHEEL 10 X 6 (M1, M2, M3, M4) M8 - GMS80904BXCC B1368016S BLOWER WH
Cabinet 91 81 71 61 51 31 41 101 21 111 11 4 www.goodmanmfg.
Cabinet Ref. Part No: No: Ref. Part No: No: Description: Image 1: Description: Expanded Model Nomenclature 11 0121F00122DGS BLOWER ACCESS DOOR 14" (M1, M2, M3, M4) M1 - GMS80453ANCC 11 0121F00123DGS BLOWER ACCESS DOOR 17.5" (M5, M6, M7, M8) M2 - GMS80453AXCC 11 0121F00124DGS BLOWER ACCESS DOOR 21" (M9, M10, M11, M12) M3 - GMS80703ANCC 11 0121F00125DG BLOWER ACCESS DOOR 24.
Heat Exchanger Assy 61 171 181 161 71 151 91 141 81 91 111 121 101 131 6 www.goodmanmfg.
Heat Exchanger Assy Ref. Part No: No: Ref.
Collector Box Assy 51 41 21 31 11 8 www.goodmanmfg.
Collector Box Assy Ref. Part No: No: Ref. Part No: No: Description: Description: Image 1: 11 0131M00002S VENT MOTOR 21 0128F00006 CHIMNEY TRANSITION BOTTOM 31 0154F00003 VENT MOTOR GASKET 14" (M1, M2, M3, M4) 31 0154F00004 VENT MOTOR GASKET 17.5" (M5, M6, M7, M8) 31 0154F00005 VENT MOTOR GASKET 21" (M9, M10, M11, M12) 31 0154F00006 VENT MOTOR GASKET 24.5" (M13) 41 4023500 CHIMNEY TRANSITION TOP 51 0121F00126 FLUE COLLECTOR BOX KIT 14" 1.
Blower and Control Panel 51 41 61 71 31 101 81 21 91 11 10 www.goodmanmfg.
Blower and Control Panel Ref. Part No: No: Ref. Part No: No: Description: Description: Image 1: 11 PCBBF123S IGNITION BOARD, HSI INTEGRATED 21 B1141605 TRANSFORMER 120V TO 24V, 40 VA 31 CAP125000370RPS CAPACITOR 12.
