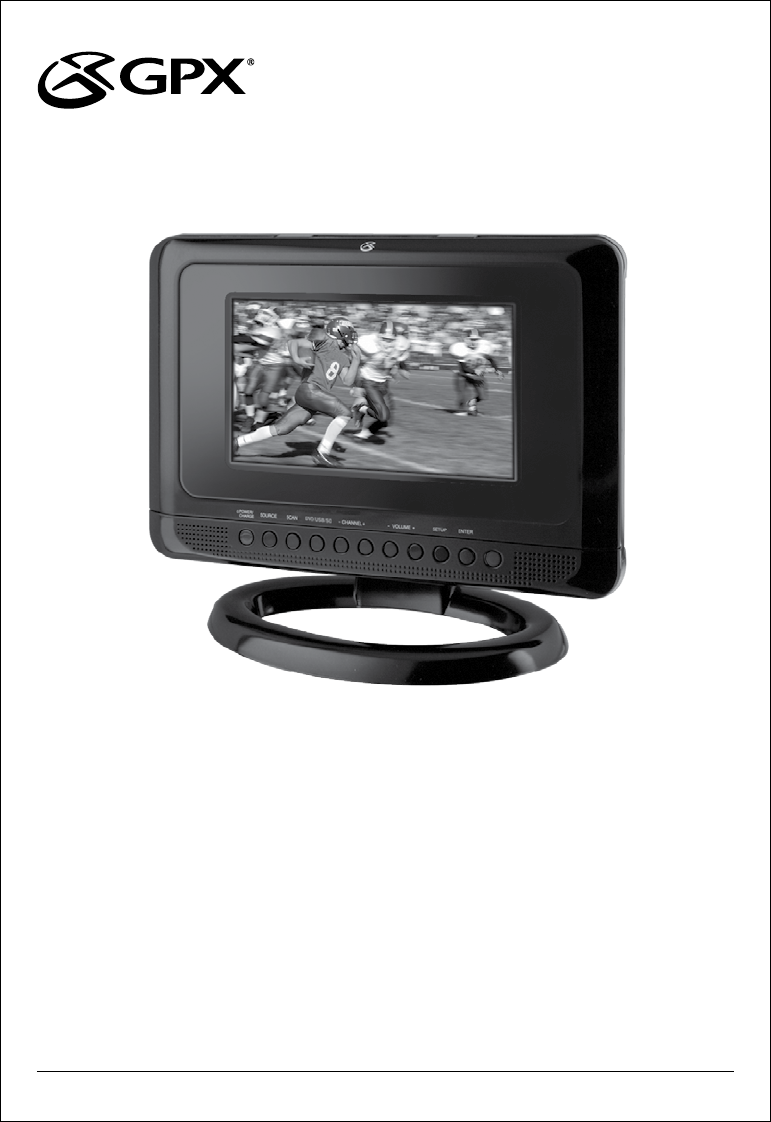

USER’S GUIDE V:0842-0414-10 TD730 7” Everywhere TV + DVD For the most up-to-date version of this User’s Guide, go to www.gpx.
Warnings and Precautions • CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. • WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. • Avertissement: Pour réduire le risque d’incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l’humidité. • CAUTION: Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure.
Important Safety Instructions 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. Read these Instructions. Keep these Instructions. Heed all Warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
7” Everywhere TV + DVD Features • • • • • • • • • • • • • • 7” widescreen LCD DVD player supports: DVD, DVD±R/ RW, CD, CD-R/RW, JPEG photo discs NTSC/ATSC tuner for off-air HDTV Removable stand Built-in rechargeable battery Stereo speakers Remote control for TV and DVD USB port & SD™/MMC card reader A/V input RF coaxial input Stereo headphone jack DVD A/V output Auto scan for TV channels Electronic Program Guide Included • • • • • • • • • • 4 TD730 AC/DC power adapter 12V DC car adapter One set of stere
Table of Contents Warnings and Precautions . . Important Safety Instructions . • • . . FCC Warnings Additional Warnings . . . . . . . . . 2 . 3 7” Everywhere TV + DVD. . . . . . . . 4 Introduction. Setup. . . . . . . . . . 6 . 8 • • • • • • • Features Included . . . . . . Connecting to an AC Power Outlet Connecting to a Car Power Outlet Battery Power Remote Battery Attaching the TV Stand Television Setup . • • • . . . . . .
Introduction SETUP Press to access the setup menu. VOLUME +/Press to adjust the volume and navigate the setup menu. CHANNEL +/Press to adjust the television channel and navigate the setup menu. SCAN In TV mode, press to auto-scan for available channels. POWER/CHARGE INDICATOR Lights when powered on. Blinks when charging. POWER/ CHARGE SOURCE SOURCE Press to switch between TV, DVD, and AV IN.
DVD/USB/SD In DVD mode, press to switch between DISC, USB, and CARD modes. SOURCE Press to switch between TV, DVD, and AV IN. POWER DISC/USB/SD SOURCE POWER Press to turn the TV/DVD player off or on. N/P NUMBER KEYPAD STOP Press to stop a disc during play, in DVD mode. OSD PREV/NEXT Press to skip to the next or previous chapter or track on a loaded disc. GOTO F.REW/F.FWD Press to rewind or fast forward a loaded disc. AUDIO Press to adjust the audio language on a playing DVD.
Setup RF IN Connecting to an AC Power Outlet DC IN 9-12V OFF/ON SD/MMC CARD USB Plug the included AC/DC power adapter into the DC POWER INPUT on the TV/DVD player and an AC power outlet. Connecting to a Car Power Outlet Plug the included 12V DC car adapter into the DC POWER INPUT on the TV/ DVD player and a car power outlet. Battery Power Built-in rechargeable battery. To charge the built-in battery, simply connect the TV/DVD player to an AC power outlet or a DC car power outlet.
Attaching the TV Stand Customer Support: 1-314-621-2881 GPX - TD730 9
Television Setup Connecting the RF Antenna Auto-Scanning for Channels Connect the included RF antenna to the RF INPUT on the TV/DVD player. Before the TV/DVD player can begin receiving television channels, a scan for available channels must be run. Connect an RF antenna or cable TV source to the TV/DVD player. 2. Adjust the POWER SWITCH on the TV/DVD player to the ON position. 3. Press the SOURCE button repeatedly to select TV mode. Press the ENTER button. 4. Press the SCAN button on TV/DVD player.
Watching Television & the TV Menu Watching Television Before watching television, you must connect an RF ANTENNA (included) or a cable TV source, and following the instructions for Auto-Scanning for Channels. 1. Adjust the POWER SWITCH on the TV/DVD player to the ON position. 2. Press the SOURCE button repeatedly to select TV mode. Press the ENTER button. 3. Press the CHANNEL buttons to change the channel and watch television.
DVD & DVD Setup Menu Loading a DVD or CD Playing a DVD or CD Programming a DVD or CD 1. Follow the instructions for Loading a DVD or CD. 1. 2. Adjust the POWER SWITCH on the TV/DVD player to the ON position. Follow the instructions for Loading a DVD or CD and Playing a DVD or CD. 2. Press the PROG/ANGLE button. 3. Press the SOURCE button repeatedly to select DVD mode. Press the ENTER button. 3. Use the NUMBER KEYPAD to enter in titles and chapters or tracks in the order you want them to play.
DVD Setup Menu System Setup • TV System • Screen Saver • TV Type • Default Language Setup • OSD Language • Audio Language • Subtitle Language • Menu Language Video Setup • Brightness • Contrast • Hue • Saturation Speaker Setup • Downmix Customer Support: 1-314-621-2881 GPX - TD730 13
SD/MMC Memory Card Slot & USB Port 4. Press the DVD/USB/SD button to select CARD mode via navigation up/down button. Press the ENTER button. 5. Use the DIRECTION and ENTER buttons to select and play media files from the loaded SD or MMC memory card. 14 Press the SOURCE button. Press the DIRECTION buttons to select DVD mode. Press the ENTER button. 4. Press the DVD/USB/SD button to select USB mode via navigation up/down button. Press the ENTER button. 5.
Audio/Video Input & DVD Output Using the DVD Output Using the A/V Input Requires an RCA audio/video cable (not included) and a 3.5mm to RCA adapter (included) 1. Connect a 3.5mm to RCA adapter to the A/V INPUT/DVD OUTPUT. Connect an RCA audio/video cable to the adapter and a television. Requires an RCA audio/video cable (not included) and a 3.5mm to RCA adapter (included) 1. Connect a 3.5mm to RCA adapter to the A/V INPUT/DVD OUTPUT. Connect an RCA audio/video cable to the adapter and an audio source.
Company Information International Support To download this User’s Guide in English, Spanish, or French, visit the support section at www.gpx.com. Para transferir esta guía de usuario en inglés, español, o francés, visite la sección de la ayuda en www.gpx.com. Pour télécharger ce guide de l’utilisateur en anglais, espagnol, ou français, visitez la section de soutien chez www.gpx.com. Contact Information Address: 2116 Carr Street, St.
