Instructions

GL-32

(Grease) and

GL-43

(Oil) Injectors

313798J

For Single-Line, Parallel, and Automatic Injector Systems Dispensing Grease, N.L.G.I.

grades #000 - #2 and Oil (minimum SAE 10 weight).

Model Nos.:

3500 psi (24 MPa, 241 bar) Maximum Working Pressure - Grease Models

1000 psi (6.89 MPa, 68.9 bar) Maximum Working Pressure - Oil Models

GL-32

1/4 NPT

GL-32

1/8 BSPP

GL-32 SST

1/4 NPT

GL-32 SST

1/8 BSPP

GL-43

1/4 NPT

GL-43

1/8 BSPP

Stand-Alone 24A919 24F507 24E389 24F549 24E240 24F542

Replacement 24A920 24F508 24E390 24F550 24E245 24F543

1X Manifold 24A921 24F509 24E391 24F551 24E241 24F544

2X Manifold 24A922 24F510 24E392 24F552 24E242 24F545

3X Manifold 24A923 24F511 24E393 24F553 24E243 24F546

4X Manifold 24A924 24F512 24E394 24F554 24E244 24F548

Important Safety Instructions

Read all warnings and instructions in this

manual. Save these instructions.

Summary of content (6 pages)

PAGE 1

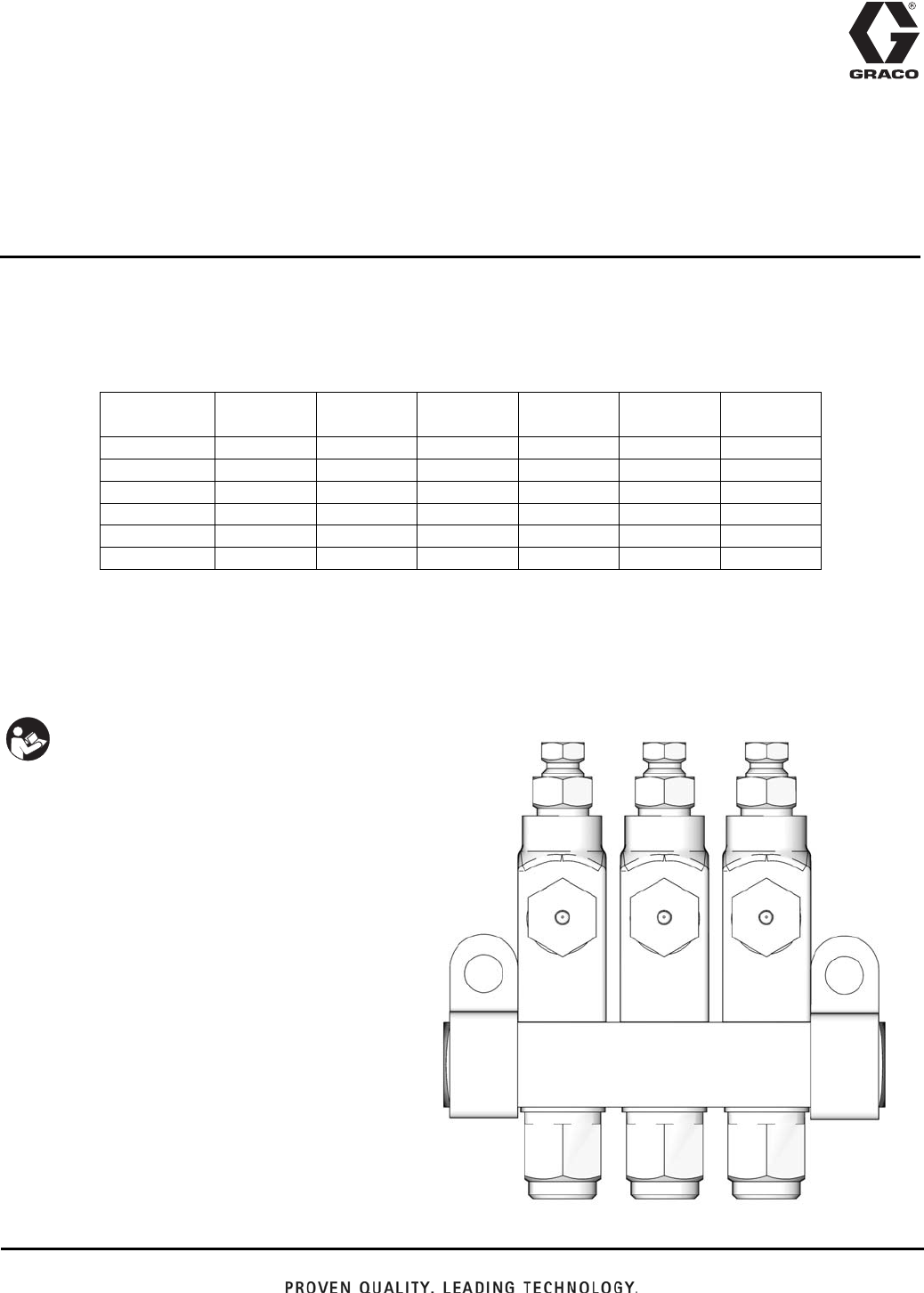

Instructions ® GL-32 (Grease) and GL-43® (Oil) Injectors 313798J EN For Single-Line, Parallel, and Automatic Injector Systems Dispensing Grease, N.L.G.I. grades #000 - #2 and Oil (minimum SAE 10 weight). Model Nos.
PAGE 2
Warnings Adjustment Instructions Reference numbers refer to parts (FIG. 1 and page 3). 1. Loosen lock nut (7). SKIN INJECTION HAZARD High-pressure fluid from dispense valve, hose leaks, or ruptured components will pierce skin. This may look like just a cut, but it is a serious injury that can result in amputation. Get immediate surgical treatment. • Do not point dispense valve at anyone or at any part of the body. • Do not put your hand over the dispense nozzle.
PAGE 3
Parts Ref. 1 14 13 12 2 7 17 16 10 11 2 15 1 6 9 8 4 5 15 31 3 1 ti13950 1 Carbon Steel Models - Torque to 18-19 ft. lbs (24.4 25.7 N•m) Stainless Steel Models - Torque to 23-26 ft. lbs (31.2-35.3 N•m) 2 Torque to 50-60 in. lbs (5.6 - 6.7 N•m) 313798J Part No.
PAGE 4
Technical Data Ref. Part No.
PAGE 5
Technical Data Dimensions Model 24A923 Shown F (OD tubing dispense outlet) D H K K C E G M J A B ti13949 Injector A B C D E F† G H J K in. / mm in./mm in./mm in./mm in./mm in./mm in./mm in./mm in./mm in./mm Stand alone single injector manifold Manifold 1 point manifold 2 point manifold 3 point manifold 4 point manifold replacement for manifold 1.14/ 28.9 CS 1.75/ 44.4 CS 1.14/ 28.9 SST 1.75/ 44.4 SST 1.90/ 48.26 CS 2.50 / 63.5 CS 2.00/ 50.8 SST 2.60/ 66.
PAGE 6
Graco Standard Warranty Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
