IP Phone User's Manual

GXV3140 USER MANUAL www.grandstream.com
SOFTWARE VERSION 1.0.0.44 [e-mail]
CONNECTING THE GXV3140 IP MULTIMEDIA PHONE

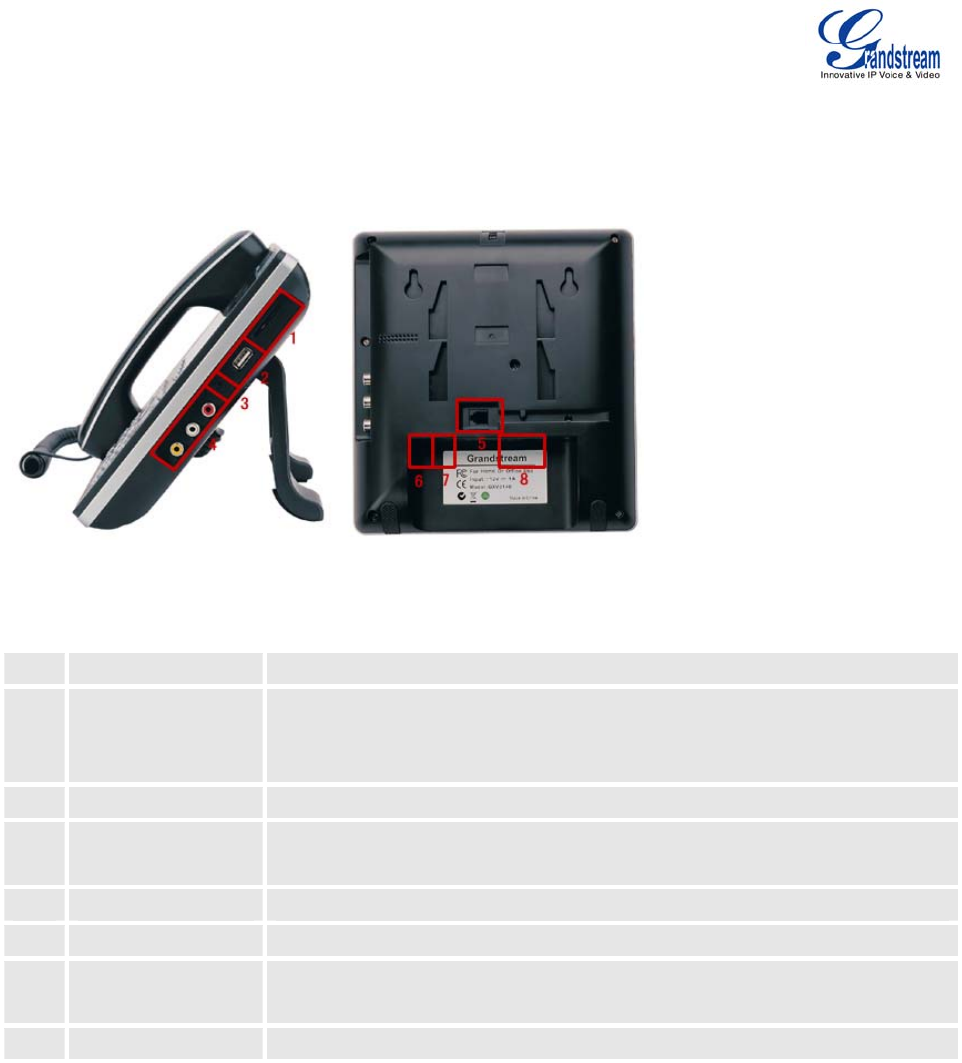

Figure 1: Connecting GXV3140
Table 1:GXV3140 Connectors
1 SD Card Slot SD Card Slot
2 USB Port USB devices may be connected via the USB port. For example, you can
connect a USB flash drive to save captured pictures or use a USB keyboard
or mouse for the built-in web browser.
3 Headset Jack 3.5mm headset connector port
4 RCA Video/Audio
Jacks
Voice/video output port which can be connected to external peripherals (e.g.
TV).
5 RJ11 Jack Phone handset connector port
6 PC Ethernet Port 10/100Mbps RJ-45 port connecting to PC
7 Network Ethernet
Port
10/100Mbps RJ-45 port connecting to Ethernet
8 Power Jack 12V DC Power connector port
WALL MOUNT
The GXV3140 can be mounted on the wall; there are two slots on the back of the phone for wall mounting.
See Figure 2 on the next page.
Figure 2: Wall Mount for GXV3140
