User Manual

1 ~ 6: Mixer Slave channel
• Trim
Offset value of mixer can be decided. You may set -30 ~ 0 ~ +30
• TRAVEL –
Output ratio for - input at Master CH is programmed. You may set 100 ~ 0 ~ +100
• TRAVEL+
Output ratio for + input at Master CH is programmed. You may set 100 ~ 0 ~ +100
5. Firmware updates
The latest firmware of receiver can be updated through the telemetry socket on the side of receiver in
conjunction with a PC running Windows XP, Vista or 7. You may download the firmware file from the
download area in Hwww.openhobby.comH. Please refer to Optional products below

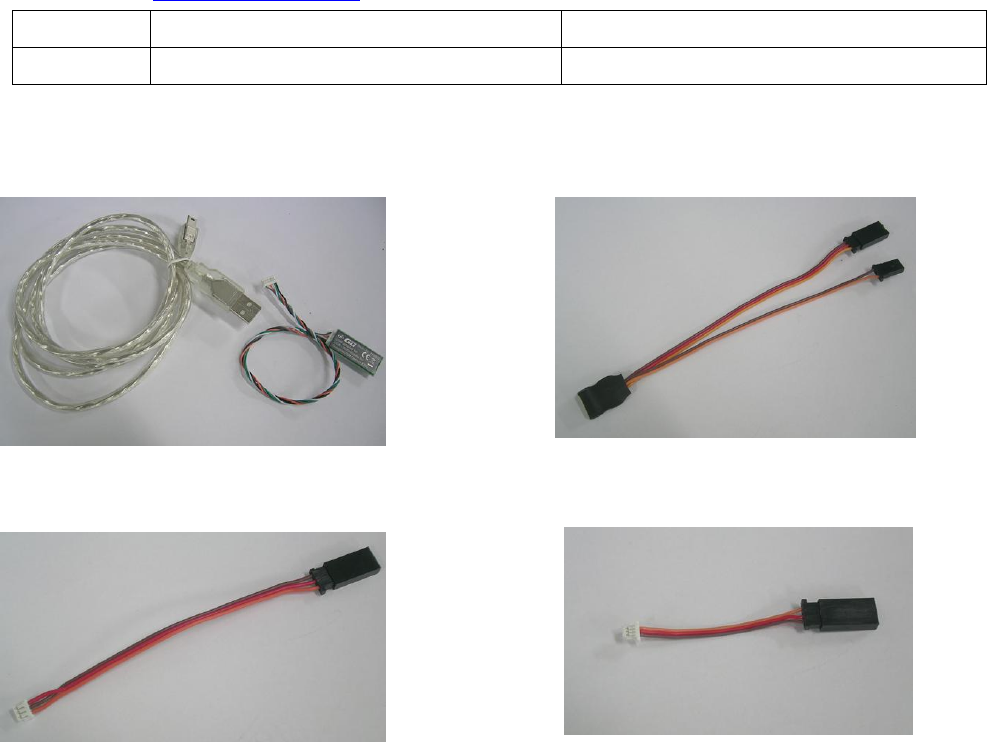

S8344 : PC interface USB V2 S8346: HoTT PC INTERFACE GENDER V2 (Signal+ Null +
GND)
S8347: HoTT Adapter Lead JR/ZH 25AWG 100mm S8348: HoTT Adapter Lead JR/SH 27AWG 50mm
Receiver
Optional products for upload
Remarks
GR-12L
S8344 + S8346
Receiver needs independent power
